概览
描述

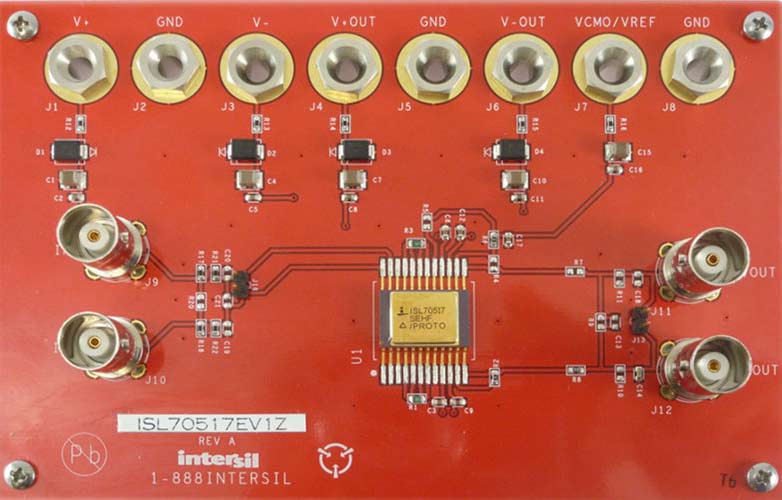

The ISL70517SEHEV1Z evaluation board is designed to assess the performance of the ISL70517SEH radiation hardened, differential input, single-ended output, precision instrumentation amplifier (in-amp).
The ISL70517 is a high-performance rad hard instrumentation amp built on the PR40 process. With separate supply rails for the input and output stages and gain ranging from 0.1 to 10,000, the ISL70517SEH is ideal for a wide variety of applications. The gain accuracy is limited only by the matching of the gain resistors and the output is capable of driving rail-to-rail.
特性
- Separate input and output supplies allow signals riding on a high common-mode voltage to be level shifted to a low voltage device.
- Banana jack connectors for simple power supply connections.
- Multiple connectors to easily access VIN and VOUT
应用
- ADC drivers
- Precision test and measurement
- High voltage process control
- Signal conditioning for remote powered sensors
- Satellite communication
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 手册 - 开发工具 | PDF 501 KB | |
| 数据手册 | PDF 1.39 MB | |
| 报告 | PDF 432 KB | |
| 报告 | PDF 523 KB | |
| 报告 | PDF 630 KB | |
5 items
|
||
