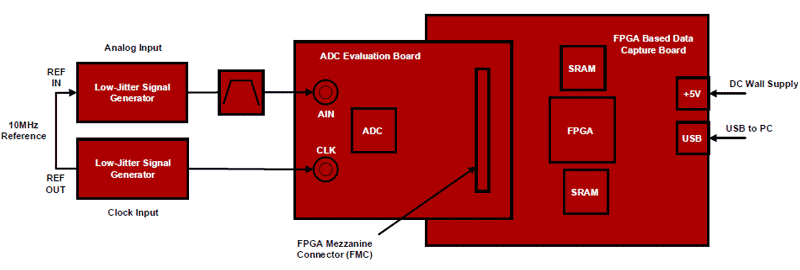

The radiation hardened precision SAR ADC evaluation system enables the evaluation of the Renesas portfolio of low-power, high-performance Successive Approximate Register (SAR) Analog-to-Digital Converters (ADC). The evaluation system uses the iRADAnalyzer GUI, which displays all pertinent data such as SFDR, SINAD, ENOB, THD, harmonics, current, and power measurements. The software plots ADC output data in frequency spectra and time domain. Data can be saved from the software in from either domain.
To ensure proper operation of the system, Renesas recommends that the most current software version is installed. If iRADAnalyzer is already installed on the machine, a new installation can proceed without removing the prior version.
特性
- Complete measurement solution for radiation hardened precision SAR ADCs
- Works with the iRADAnalyzer GUI to support datasheet-style, live-updated display with calculation of critical ADC parameters (SNR, SFDR, SINAD, ENOB, Harmonics, Power)
- Supports most Vita 57.1 FPGA Mezzanine Connector (FMC) specifications
应用
设计和开发
软件与工具
相关评估板和套件
评估
Rad Hard 14-Bit 1000ksps/750kps SAR ADC Evaluation Board (3.3V)
The ISL73141SEHFNEV1Z board evaluates the operation of the Renesas ISL73141SEH radiation hardened 14-Bit 1000ksps/750kps SAR ADC. This evaluation board is intended to be used with the RHADC-FMCEV1Z data capture board.
The ISL73141SEH device on the evaluation board supports operation of the...
Recommended Documents:
评估
Rad Hard 14-Bit 1000ksps/750kps SAR ADC Evaluation Board (5V)
The ISL73141SEHF7EV1Z board evaluates the operation of the Renesas ISL73141SEH radiation hardened 14-Bit 1000ksps/750kps SAR ADC. This evaluation board is intended to be used with the RHADC-FMCEV1Z data capture board.
The ISL73141SEH device on the evaluation board supports operation of the...
Recommended Documents:
