概览
简介

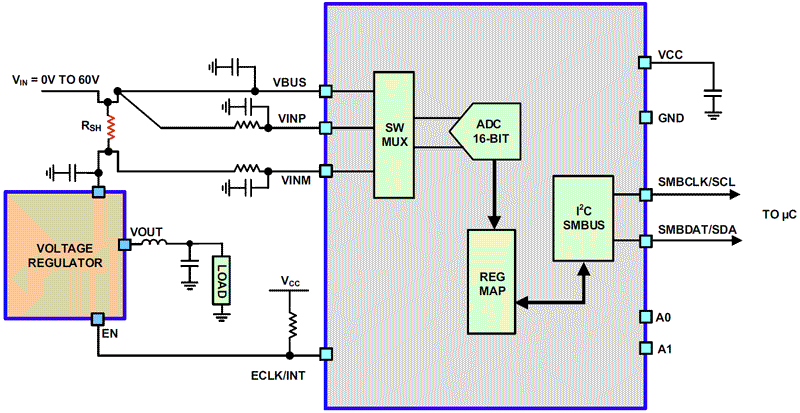

The ISL28022 is a bidirectional high-side and low-side digital current sense and voltage monitor with serial interface. The device monitors current and voltage and provides the results digitally along with calculated power.
It provides tight accuracy of less than 0.3% for both voltage and current monitoring over the entire input range. The digital power monitor has configurable fault thresholds and measurable ADC gain ranges.
It also handles common-mode input voltage ranging from 0V to 60V. The wide range permits the device to handle telecom, automotive and industrial applications with minimal external circuitry. Both high- and low-side ground sensing applications are easily handled with the flexible architecture.
The ISL28022 consumes an average current of just 700μA and is available in a 10 Ld MSOP package. The ISL28022 is also offered in a space-saving 16 Ld QFN package. The part operates across the extended temperature range from -40°C to +125°C
特性
- Bus voltage sense range: 0V to 60V
- 16-bit ΣΔADC monitors current and voltage
- Voltage measuring error: <0.3%
- Current measuring error: <0.3%
- Handles negative system voltage
- Overvoltage/undervoltage and current fault monitoring
- I2C/SMBus interface
- Wide VCC range: 3V to 5.5V
- ESD (HBM): 8kV
- Supports high speed I2C: 3.4MHz
Comparison
| ISL28022 | ISL28023 | ISL28025 | |
| VS (Min) (V) | 3 V | 3.0 V | 3.0 V |
| VS (Max) (V) | 5.5 V | 5.5 V | 5.5 V |
| PSRR (db) | 105 | 127 | 127 |
| CMRR (dB) | 130 | 136 | 134 |
| Common Mode Input Range | 0 - 60 | 0 - 12, 0 - 60 | 0 - 12, 0 - 60 |
| Gain Error/Measurement Error (Max) | 0.3 | 0.25 | 0.25 |
| IS (per amp) (mA) | 0.7 | 1.24 | 1 |
| Offset Voltage (Max) (mV) | 0.075 | 0.05 | 0.05 |
| View Product | View Product |
应用
| 工业控制用 4-20mA 电流环系统 | |
|
无线工业物联网网关 |
|
6 到 10 节电池驱动电机 |
|
轻型电动汽车仪表板 |
| Xilinx FPGA RFSoC 电源树 | |
|
适用于机器人四肢的伺服电机控制 |
|
通用 NFC 充电器 |
应用
- Routers and servers
- DC/DC, AC/DC converters
- Battery management/charging
- Automotive power
- Power distribution
- Medical and test equipment
