Renesas 时钟缓冲器（时钟驱动器）产品组合包括带有多达 27 个输出端的器件。如 LVPECL、LVDS、HCSL、CML、HSTL 和可选输出等差分输出，都支持高达 3.2GHz 的输出频率和频率高达 350MHz 的单端 LVCMOS 输出。 部分缓冲器带混合输出信号。 Renesas 的多路复用器产品组合中有一些器件支持 1.2V 至 5V 电源电压，可在商业和工业温度范围内使用。 扇出缓冲器和时钟分频器是可用于多种应用的通用时钟构建模块器件。 对于包括个人电脑、消费类电子产品或工业系统，以及高性能网络和通信系统在内的各种系统而言，它们都是分配时钟和信号的理想选择。


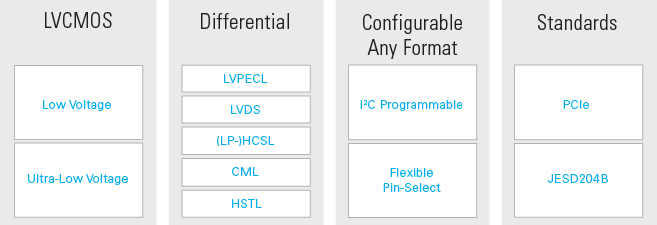

扇出缓冲器 (时钟驱动器)

扇出缓冲器是许多时钟树的一个有用构建模块，可提供信号缓冲和输入信号的多个低偏斜拷贝。 单输入中的时钟缓冲器可减少前一驱动器上的负载，并提供有效的时钟分配网络。 单输出时钟缓冲器还用于将时钟从一个信号标准转化成另一个标准（例如，将 LVCMOS 输入转化成 LVPECL 输出）。 一些器件拥有集成式晶体振荡器，只需要低成本的外部基频模式石英晶体。 集成式振荡器提供极低的相位噪声参考时钟来驱动 PHY 时钟输入等抖动敏感型器件。 如果未在 Renesas 广泛的扇出缓冲器产品中找到确切的缓冲器配置，客户可考虑 Renesas 时钟分频器或时钟多录复用器产品组合中的器件，这些器件在“除 1”模式或适当选择的模式下使用时，也可用作扇出缓冲器。

时钟和时序

产品选型表

    Processing table
    器件号
    Function
    Outputs (#)
    Output Type
    Output Freq Range (MHz)
    Input Type
    Output Banks (#)
    Output Voltage (V)
    Output Skew (ps)
    Additive Phase Jitter Typ RMS (fs)
    Pkg. Dimensions (mm)
    Pkg. Type
    Prog. Interface
    105°C Max. Case Temp.
    Advanced Features

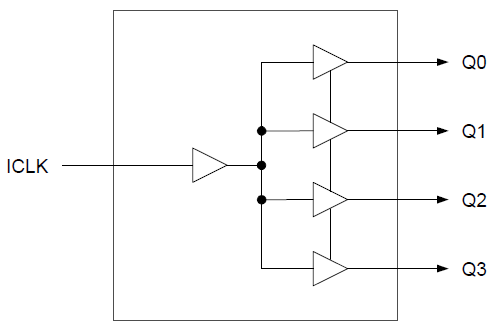

    524S
    Low Skew 1 to 4 Clock Buffer    		 Buffer 4 LVCMOS 0 - 200 LVCMOS 1 1.8, 2.5, 3.3 65 35 2.0 x 2.0 x 0.5, 4.9 x 3.9 x 1.5 COL, SOIC
    553S
    Low Skew 1 to 4 Clock Buffer    		 Buffer 4 LVCMOS 0 - 200 LVCMOS 1 1.8, 2.5, 3.3 65 35 2.0 x 2.0 x 0.5, 4.9 x 3.9 x 1.5 COL, SOIC
    5P1103
    Programmable Fanout Buffer    		 Buffer, Multiplexer 3 HCSL, LVCMOS, LVDS, LVPECL 1 - 350 Crystal, HCSL, LVCMOS, LVDS, LVPECL 3 1.8, 2.5, 3.3 35 4.0 x 4.0 x 0.9 VFQFPN I2C, Pin select
    5P1105
    Programmable Fanout Buffer    		 Buffer, Multiplexer 5 HCSL, LVCMOS, LVDS, LVPECL 1 - 350 Crystal, HCSL, LVCMOS, LVDS, LVPECL 5 1.8, 2.5, 3.3 35 4.0 x 4.0 x 0.9 VFQFPN I2C, Pin select
    5P83904

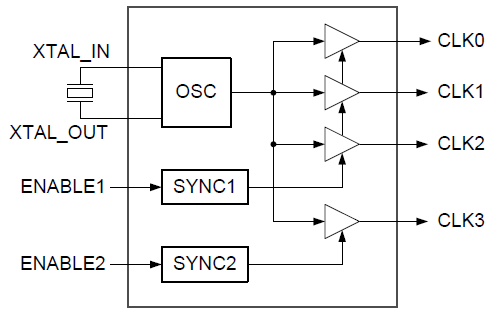

    1.8 V to 3.3 V 1:4 Crystal Input to LVCMOS Output High-Performance Clock Fanout Buffer with OE    		 Buffer 4 LVCMOS 0 - 200 Crystal, LVCMOS 1 1.8, 2.5, 3.3 65 50 2.5 x 2.5 x 0.5, 5.0 x 4.4 x 1.0 COL, TSSOP

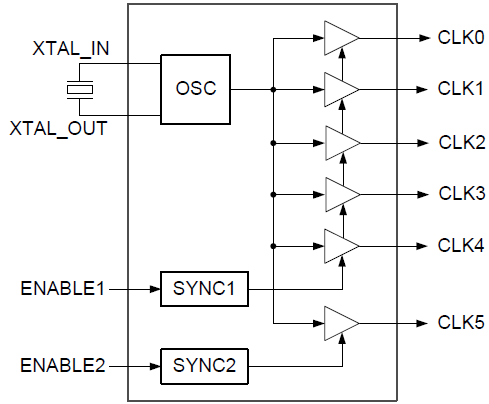

    5P83905
    1.8 V to 3.3 V 1:6 Crystal Input to LVCMOS Output High-Performance Clock Fanout Buffer with OE    		 Buffer 6 LVCMOS 0 - 200 Crystal, LVCMOS 1 1.8, 2.5, 3.3 65 50 2.5 x 2.5 x 0.5, 5.0 x 4.4 x 1.0 COL, TSSOP

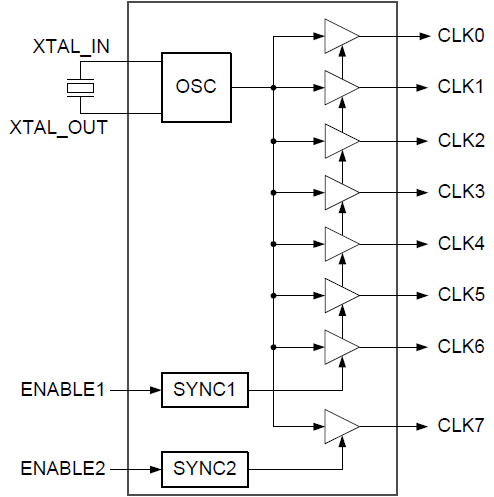

    5P83908
    1.8 V to 3.3 V 1:8 Crystal Input to LVCMOS Output High-Performance Clock Fanout Buffer with OE    		 Buffer 8 LVCMOS 0 - 200 Crystal, LVCMOS 1 1.8, 2.5, 3.3 65 50 3.0 x 3.0 x 1.0, 6.5 x 4.4 x 1.0 TSSOP, VFQFPN

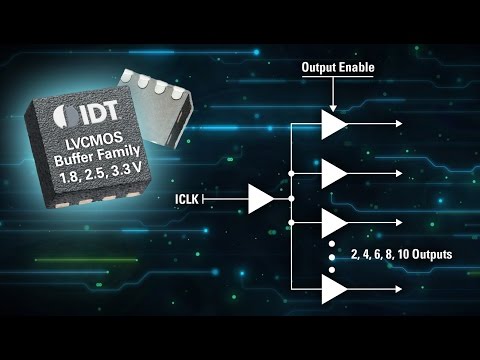

    5PB1102

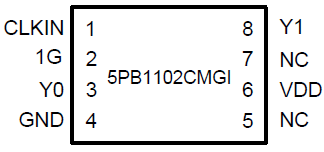

    1.8V to 3.3V 1:2 LVCMOS High Performance Clock Buffer    		 Buffer 2 LVCMOS 0 - 200 LVCMOS 1 1.8, 2.5, 3.3 65 35 2.0 x 2.0 x 0.5, 3.1 x 4.4 x 1.0 COL, TSSOP
    5PB1104
    1.8 V to 3.3 V 1:4 LVCMOS High Performance Clock Buffer    		 Buffer 4 LVCMOS 0 - 200 LVCMOS 1 1.8, 2.5, 3.3 65 35 2.0 x 2.0 x 0.5, 2.0 x 2.0 x 0.75, 3.1 x 4.4 x 1.0 COL, TSSOP
    5PB1106
    1.8 V to 3.3 V 1:6 LVCMOS High Performance Clock Buffer    		 Buffer 6 LVCMOS 0 - 200 LVCMOS 1 1.8, 2.5, 3.3 65 35 2.5 x 2.5 x 0.5, 5.0 x 4.4 x 1.0 COL, TSSOP
    5PB1108
    1.8 V to 3.3 V 1:8 LVCMOS High Performance Clock Buffer    		 Buffer 8 LVCMOS 0 - 200 LVCMOS 1 1.8, 2.5, 3.3 65 35 2.5 x 2.5 x 0.5, 5.0 x 4.4 x 1.0 COL, TSSOP
    5PB1110
    1.8 V to 3.3 V 1:10 LVCMOS High Performance Clock Buffer    		 Buffer 10 LVCMOS 0 - 200 LVCMOS 1 1.8, 2.5, 3.3 65 35 3.0 x 3.0 x 1.0, 6.5 x 4.4 x 1.0 TSSOP, VFQFPN
    5PB1203
    1.8 V 1:3 TCXO / LVCMOS High-Performance Clock Buffer    		 Buffer 3 LVCMOS 0 - 200 LVCMOS, Sine Wave 1 1.8 65 50 2.0 x 2.0 x 0.75 DFN
    5PB1204
    1.8 V 1:4 TCXO / LVCMOS High-Performance Clock Buffer    		 Buffer 4 LVCMOS 0 - 200 LVCMOS, Sine Wave 1 1.8 65 50 2.5 x 2.5 x 0.5 COL
    5PB1206
    1.8 V 1:6 TCXO / LVCMOS High-Performance Clock Buffer    		 Buffer 6 LVCMOS 0 - 200 LVCMOS, Sine Wave 1 1.8 65 50 3.0 x 3.0 x 1.0 VFQFPN
    5PB1213
    2.5 V to 3.3 V 1:3 TCXO / LVCMOS High-Performance Clock Buffer    		 Buffer 3 LVCMOS 0 - 200 LVCMOS, Sine Wave 1 2.5, 3.3 65 50 2.0 x 2.0 x 0.75 DFN
    5PB1214
    2.5 V to 3.3 V 1:4 TCXO / LVCMOS High-Performance Clock Buffer    		 Buffer 4 LVCMOS 0 - 200 LVCMOS, Sine Wave 1 2.5, 3.3 65 50 2.5 x 2.5 x 0.5 COL
    5PB1216
    2.5 V to 3.3 V 1:6 TCXO / LVCMOS High-Performance Clock Buffer    		 Buffer 6 LVCMOS 0 - 200 LVCMOS, Sine Wave 1 2.5, 3.3 65 50 3.0 x 3.0 x 1.0 VFQFPN

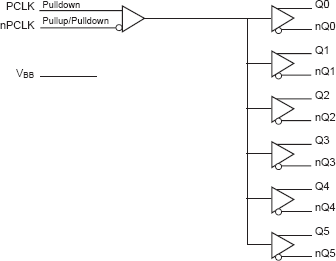

    853S006I
    Low Skew,1-to-6,Differential-to-2.5V,3.3V LVPECL/ECL Fanout Buffer    		 Buffer 6 LVPECL 0 - 2000 CML, LVDS, LVPECL 1 2.5, 3.3 50 100 6.5 x 4.4 x 1.0 TSSOP
    853S011BI
    Low Skew,1-to-2,Differential-to-2.5V,3.3V LVPECL/ECL Fanout Buffer    		 Buffer 2 ECL, LVPECL 0 - 2500 CML, LVDS, LVPECL, SSTL 1 2.5, 3.3 5 26 3.0 x 3.0 x 0.97, 4.9 x 3.9 x 1.5 SOIC, TSSOP
    853S014I

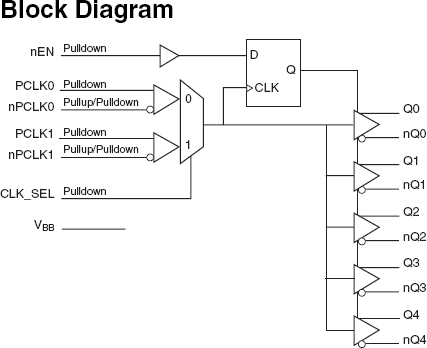

    Low Skew,1-to-5 Differential-to-2.5V,3.3V LVPECL/ECL Fanout Buffer    		 Buffer, Multiplexer 5 LVPECL 0 - 2000 CML, LVDS, LVPECL, SSTL 1 2.5, 3.3 55 100 6.5 x 4.4 x 1.0 TSSOP
    853S111BI

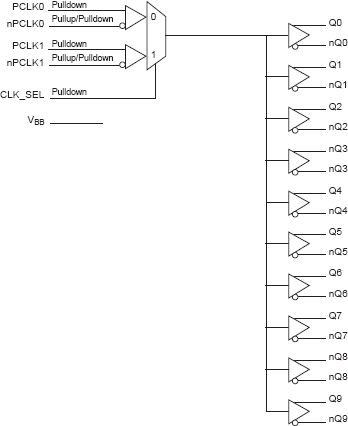

    Low Skew, 1-to-10 Differential-to-2.5V, 3.3V LVPECL / ECL Fanout Buffer    		 Buffer, Multiplexer 10 LVPECL 0 - 2500 LVDS, LVPECL, SSTL 1 2.5, 3.3 50 30 5.0 x 5.0 x 0.9 VFQFPN

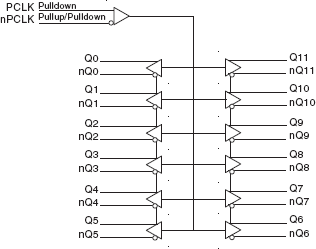

    853S12I
    Low Skew,1-to-12,Differential-to-3.3V,2.5V LVPECL Fanout Buffer    		 Buffer 12 LVPECL 0 - 1500 CML, LVPECL, SSTL 1 2.5, 3.3 50 60 5.0 x 5.0 x 0.9 VFQFPN
    8L30110
    Crystal or Differential to LVCMOS/ LVTTL Clock Buffer    		 Buffer, Multiplexer 10 LVCMOS 0 - 200 Crystal, HCSL, LVCMOS, LVDS, LVPECL 1 1.5, 1.8, 2.5, 3.3 63 22 5.0 x 5.0 x 0.9 VFQFPN
    8L30205

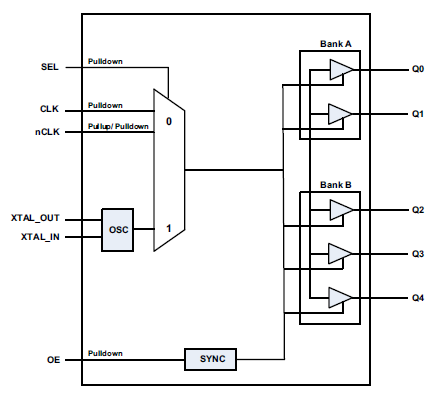

    Crystal or Differential to LVCMOS/ LVTTL Clock Buffer    		 Buffer, Multiplexer 5 LVCMOS 0 - 200 Crystal, HCSL, LVCMOS, LVDS, LVPECL 2 1.5, 1.8, 2.5, 3.3 30 30 4.0 x 4.0 x 0.9 VFQFPN
    8L30210
    Crystal or Differential to LVCMOS/ LVTTL Clock Buffer    		 Buffer, Multiplexer 10 LVCMOS 0 - 200 Crystal, HCSL, LVCMOS, LVDS, LVPECL 2 1.5, 1.8, 2.5, 3.3 30 30 5.0 x 5.0 x 0.9 VFQFPN

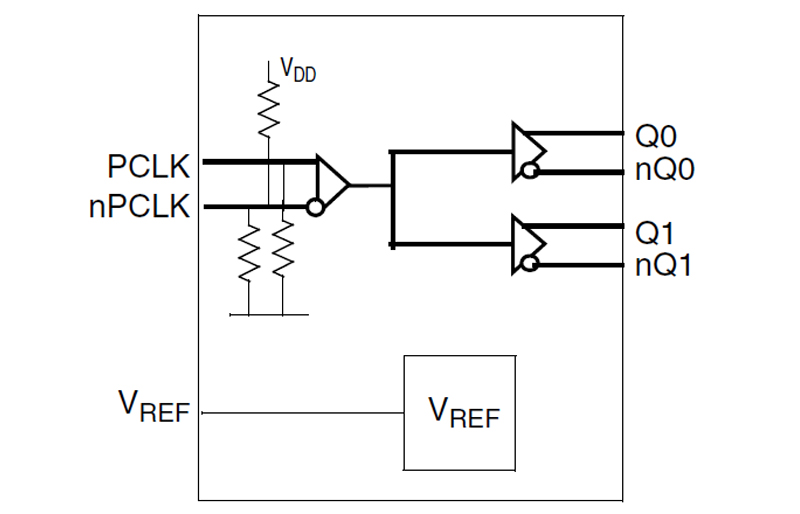

    8P34S1102
    1:2 LVDS 1.8V / 2.5V Fanout Buffer for 1PPS and High-Speed Clocks    		 Buffer 2 LVDS 0 - 1200 CML, LVDS, LVPECL 1 1.8 20 42 3.0 x 3.0 x 1.0 VFQFPN
    8P34S1106

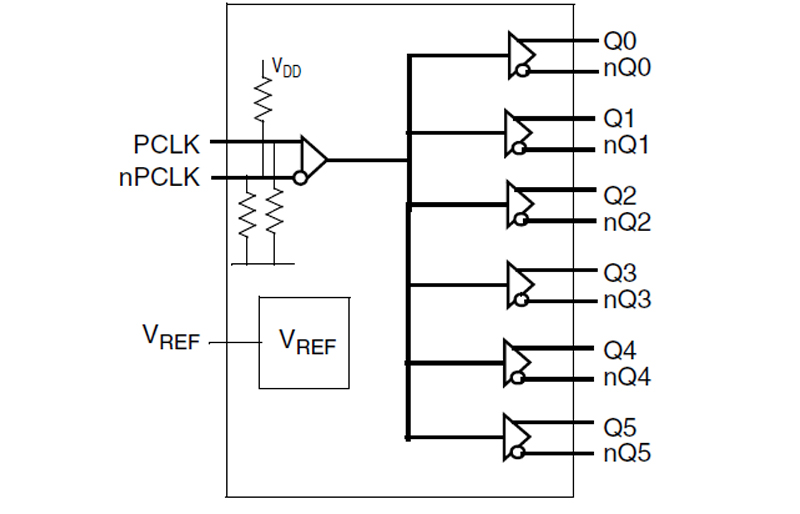

    1:6 LVDS Output 1.8V Fanout Buffer    		 Buffer 6 LVDS 0 - 1200 CML, LVDS, LVPECL 1 1.8 20 39 4.0 x 4.0 x 1.0 VFQFPN
    8P34S1204
    2:4 LVDS 1.8V / 2.5V Fanout Buffer for 1PPS and High-Speed Clocks    		 Buffer, Multiplexer 4 LVDS 0 - 1200 CML, LVDS, LVPECL 1 1.8 14 42 3.0 x 3.0 x 1.0 VFQFPN
    8P34S1208
    2:8 LVDS 1.8V / 2.5V Fanout Buffer for 1PPS and High-Speed Clocks    		 Buffer, Multiplexer 8 LVDS 0 - 1200 CML, LVDS, LVPECL 1 1.8 20 41 5.0 x 5.0 x 0.8 VFQFPN
    8P34S1212

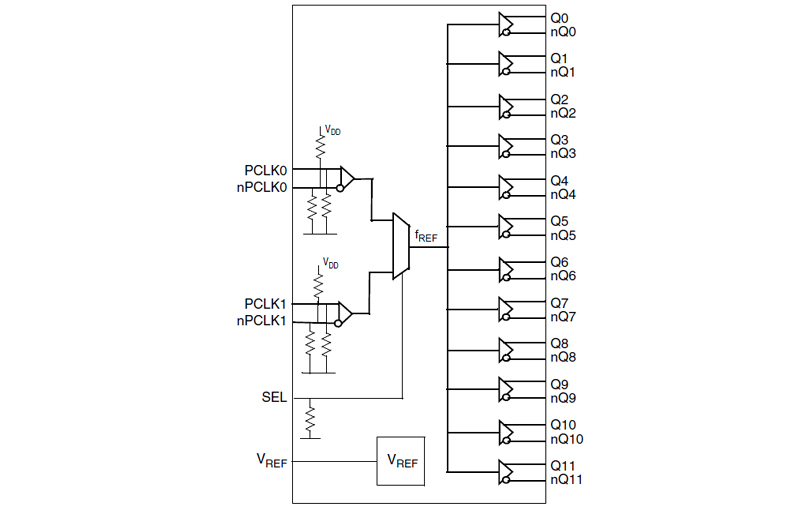

    2:12 LVDS 1.8V / 2.5V Fanout Buffer for 1PPS and High-Speed Clocks    		 Buffer, Multiplexer 12 LVDS 0 - 1200 CML, LVDS, LVPECL 1 1.8 12 73 6.0 x 6.0 x 0.9 VFQFPN

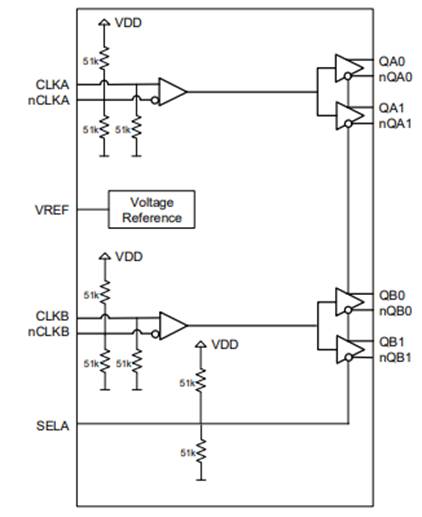

    8P34S2102
    Dual 1:2 LVDS 1.8V / 2.5V Fanout Buffer for 1PPS and High-Speed Clocks    		 Buffer 4 LVDS 0 - 2000 LVCMOS, LVDS, LVPECL 2 1.8 30 45 3.0 x 3.0 x 1.0 VFQFPN Yes Dual Buffer, Output Amplitude Control
    8P34S2104

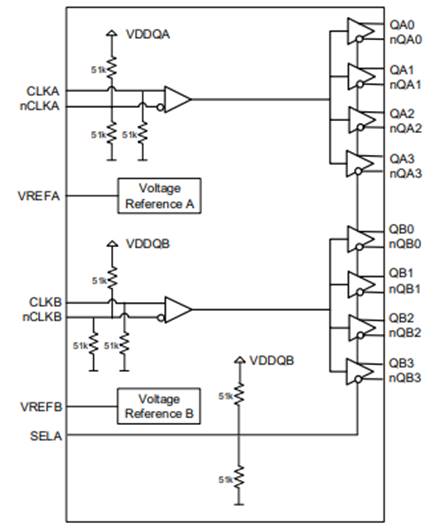

    Dual 1:4 LVDS 1.8V / 2.5V Fanout Buffer for 1PPS and High-Speed Clocks    		 Buffer 8 LVDS 0 - 2000 LVCMOS, LVDS, LVPECL 2 1.8 30 45 5.0 x 5.0 x 0.8 VFQFPN Yes Dual Buffer, Output Amplitude Control
    8P34S2106
    Dual 1:6 LVDS Output 1.8V / 2.5V Fanout Buffer    		 Buffer 12 LVDS 0 - 2000 LVCMOS, LVDS, LVPECL 2 1.8 40 45 3.59 x 3.04 x 0.6 WLCSP Yes Dual Buffer, Output Amplitude Control
    8P34S2106A

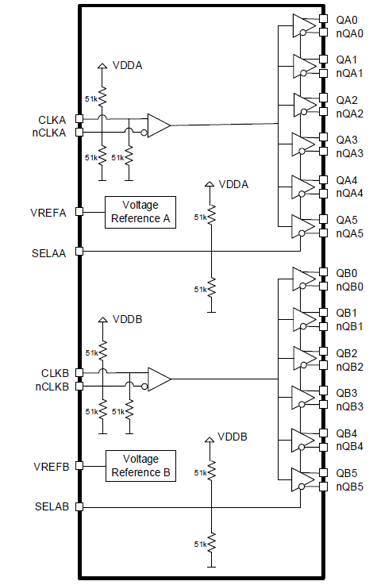

    Dual 1:6 LVDS Output 1.8V / 2.5V Fanout Buffer    		 6 x 6 x 0.9, 6.0 x 6.0 x 0.9 VFQFPN
    8P34S2108

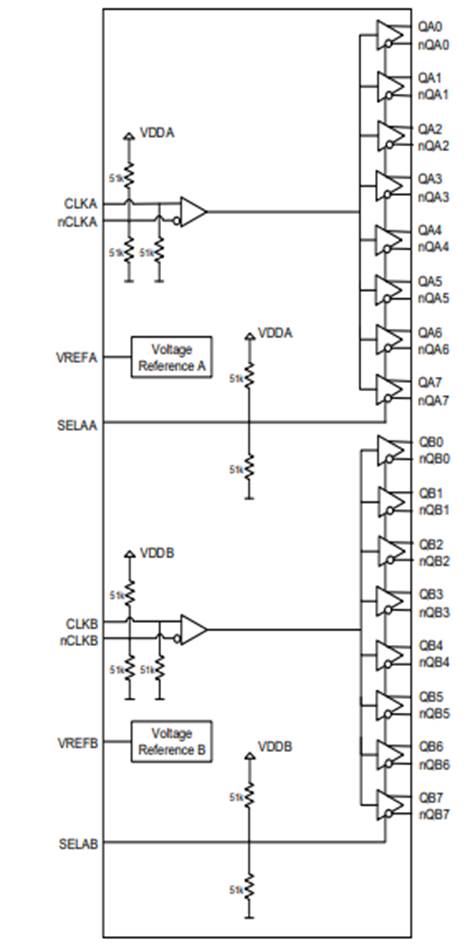

    Dual 1:8 LVDS 1.8V / 2.5V Fanout Buffer for 1PPS and High-Speed Clocks    		 Buffer 16 LVDS 0 - 2000 LVCMOS, LVDS, LVPECL 2 1.8 40 45 7.0 x 7.0 x 0.9 VFQFPN Yes Dual Buffer, Output Amplitude Control
    8P391208
    Low Additive Jitter 2:8 Buffer with Universal Differential Outputs    		 Buffer 8 CML, HCSL, LVDS, LVPECL 0.000001 - 1000 CSL, LVCMOS, LVDS, LVHSTL, LVPECL 2 1.8, 2.5, 3.3 100 70 5.0 x 5.0 x 0.9 VFQFPN Pin select

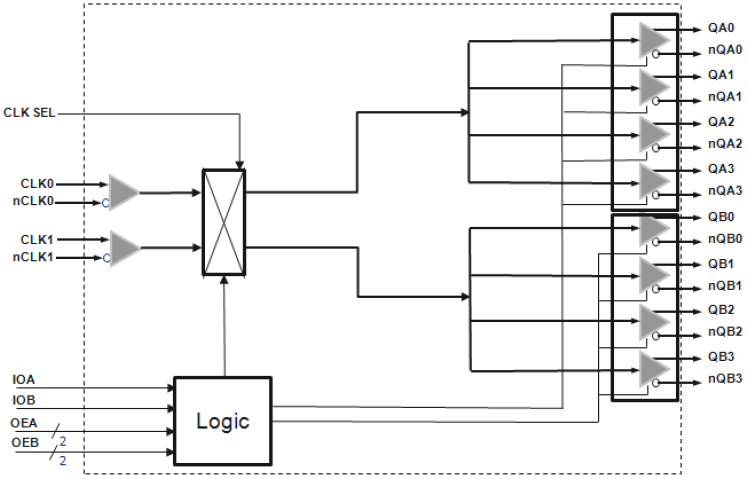

    8P791208
    Low Additive Jitter 2:8 Buffer with CMOS / Differential Outputs    		 Buffer, Divider, Multiplexer 8 LVCMOS, LVDS, LVPECL CSL, LVCMOS, LVDS, LVHSTL, LVPECL 2 1.8, 2.5, 3.3 100 80 5.0 x 5.0 x 0.9 VFQFPN Pin select
    8P79818
    Programmable Low Additive Jitter 2:8 Buffer with Dividers and Universal Outputs    		 Buffer, Divider 8 CML, HCSL, LVDS, LVPECL 0.000001 - 700 LVCMOS, LVDS, LVHSTL, LVPECL 2 1.5, 1.8, 2.5, 3.3 100 60 5.0 x 5.0 x 0.9 VFQFPN I2C
    8SLVD1204
    2:4, LVDS Output Fanout Buffer, 2.5V    		 Buffer, Multiplexer 4 LVDS 0 - 2000 LVDS, LVPECL 1 2.5 20 95 3.0 x 3.0 x 1.0 VFQFPN
    8SLVD1204-33I
    2:4, LVDS Output Fanout Buffer, 3.3 V    		 Buffer, Multiplexer 4 LVDS 0 - 2000 LVDS, LVPECL 1 3.3 20 95 3.0 x 3.0 x 1.0 VFQFPN
    8SLVD1212

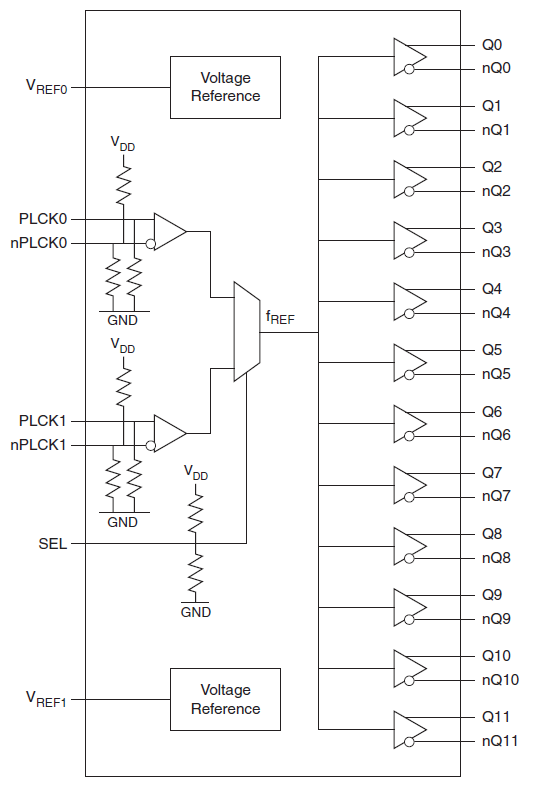

    1:12, LVDS Output Fanout Buffer    		 Buffer, Multiplexer 12 LVDS 0 - 2000 CML, LVDS, LVPECL 1 2.5 45 65 6.0 x 6.0 x 0.9 VFQFPN

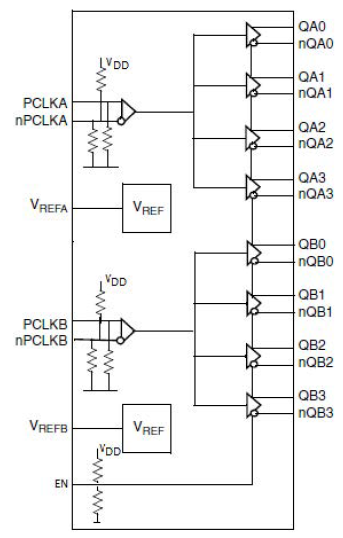

    8SLVD2104
    Dual 1:4, LVDS Output Fanout Buffer    		 Buffer 8 LVDS 0 - 2000 LVDS, LVPECL 2 2.5 35 105 5.0 x 5.0 x 0.8 VFQFPN Dual Buffer
    8SLVP1102

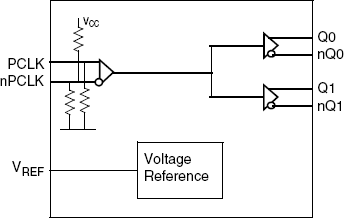

    1:2,LVPECL Output Fanout Buffer    		 Buffer 2 LVPECL 0 - 2000 CML, LVDS, LVPECL 1 2.5, 3.3 15 36 3.0 x 3.0 x 1.0 VFQFPN

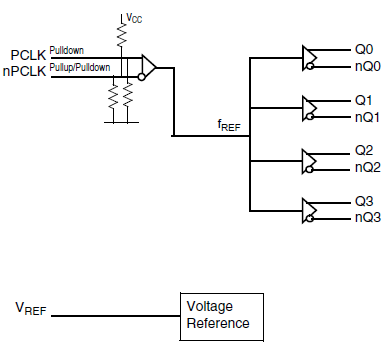

    8SLVP1104I
    Low Phase Noise,1-to-4, 3.3V, 2.5V LVPECL Output Fanout Buffer    		 Buffer 4 LVPECL 0 - 2000 CML, LVDS, LVPECL 1 2.5, 3.3 15 32 3.0 x 3.0 x 1.0 VFQFPN

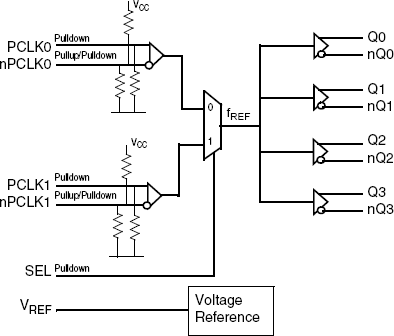

    8SLVP1204
    2:4 LVPECL Output Fanout Buffer    		 Buffer, Multiplexer 4 LVPECL 0 - 2000 CML, LVDS, LVPECL 1 2.5, 3.3 64 32 3.0 x 3.0 x 1.0 VFQFPN Yes

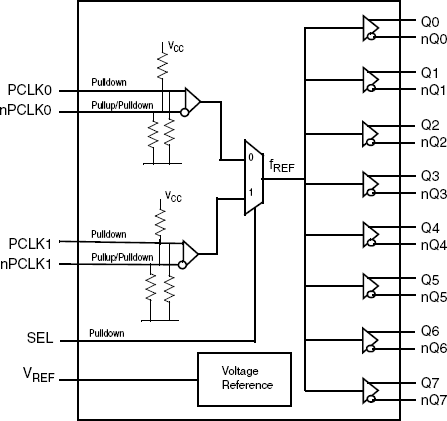

    8SLVP1208
    2:8,LVPECL Output Fanout Buffer    		 Buffer, Multiplexer 8 LVPECL 0 - 2000 CML, LVDS, LVPECL 1 2.5, 3.3 64 31.1 5.0 x 5.0 x 0.8 VFQFPN

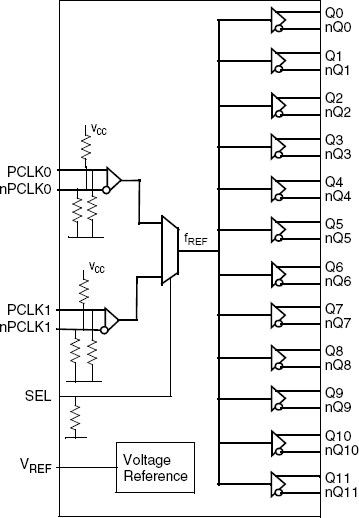

    8SLVP1212I
    2:12,3.3V,2.5V LVPECL Fanout Buffer    		 Buffer, Multiplexer 12 LVPECL 0 - 2000 CML, LVDS, LVPECL 1 2.5, 3.3 15 45 6.0 x 6.0 x 0.9 VFQFPN
    8SLVP2102I
    Dual 1:2, 3.3V, 2.5V LVPECL Output Fanout Buffer    		 Buffer 4 LVPECL 0 - 2000 CML, LVDS, LVPECL 2 2.5, 3.3 15 31 3.0 x 3.0 x 1.0 VFQFPN Dual Buffer
    8SLVP2104I
    Dual 1:4, 3.3V, 2.5V LVPECL Output Fanout Buffer    		 Buffer 8 LVPECL 0 - 2000 CML, LVDS, LVPECL 2 2.5, 3.3 25 43 5.0 x 5.0 x 0.8 VFQFPN Yes Dual Buffer
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
