The XP is a quartz-based PLL clock oscillator family with <150fs phase jitter. It is ideal for enterprise level equipment that demands very low noise, stable, and accurate timing/clock sources. The XP is a quartz-based PLL oscillator with a key focus on noise reduction technologies. Typical phase jitter is 120fs over 12kHz to 20MHz bandwidth. Available in a wide frequency range from 15MHz to 2100MHz.
Short lead-time, low noise, wide frequency range, excellent ambient performance, and very little engineering effort to incorporate this into your design makes the XP family an excellent choice over the conventional technologies. The XP family has stabilities as tight as ±25ppm for -40°C to +85°C and ±50ppm for -40°C to +105°C. This XP family provides extremely quick delivery for both standard and custom frequencies.
特性
- Frequency range: 15MHz to 2100MHz
- Output types: CML, LVDS, LVPECL, HCSL
- Phase jitter (12kHz to 20MHz): 120fs typical
- Supply voltage: 1.8V, 2.5V or 3.3V

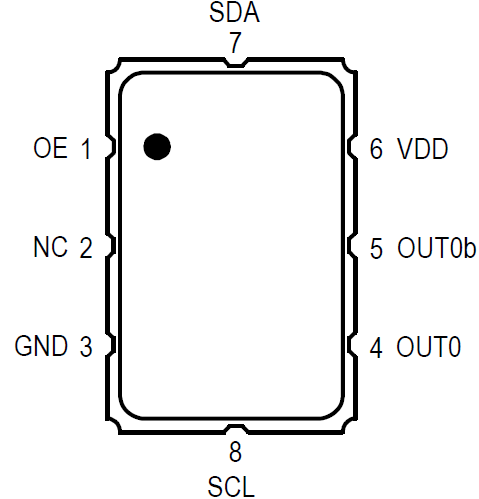

- Package options:
- 3.2 × 2.5 × 1.0 mm
- 5.0 × 3.2 × 1.2 mm
- 7.0 × 5.0 × 1.8 mm
- Frequency stability: ± 25ppm
- Operating temperatures: -40°C to +85°C
- Frequency stability: ± 50ppm
- Operating temperatures: -40°C to +105°C
应用
设计和开发
软件与工具
开发板与套件
开发板与套件
Evaluation Board for XP Family Quartz-based PLL Oscillators
This is the evaluation board for the XP family field adjustable oscillator. With RMS phase jitter of less than 150fs over the full 12kHz to 20MHz integration range, the...
模型
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
产品选择
此为出厂可配置设备。试用自定义部件配置工具。
Processing table
器件号 |
Lead Count (#) |
Pkg. Dimensions (mm) |
Output Freq (MHz) |
Output Type |
Supply Voltage (V) |
Freq. Stability Total (± PPM) |
购买 / 样片 |
|---|---|---|---|---|---|---|---|
| 5.0 × 3.2 × 1.2 | HCSL, LVDS | 1.8, 2.5 | 50 | ||||
| 8 | 7.0 x 5.0 x 1.7 | 156.25 | CML, HCSL, LVDS, LVPECL | 3.3 | 25 | 获取样片, | |
| 8 | 7.0 x 5.0 x 1.7 | 156.25 | CML, HCSL, LVDS, LVPECL | 3.3 | 25 | 获取样片, | |
| 8 | 7.0 x 5.0 x 1.7 | 312.5 | CML, HCSL, LVDS, LVPECL | 3.3 | 25 | 获取样片, | |
| 8 | 7.0 x 5.0 x 1.7 | 625 | CML, HCSL, LVDS, LVPECL | 3.3 | 25 | 获取样片, | |
| 3.2 × 2.5 × 1.0 | HCSL, LVDS | 1.8, 2.5 | 50 | ||||
| 8 | 5.0 x 3.2 x 1.1 | 156.25 | LVPECL | 3.3 | 25 | 获取样片, | |
| 8 | 5.0 x 3.2 x 1.1 | 312.5 | LVPECL | 3.3 | 25 | 获取样片, | |
| 8 | 5.0 x 3.2 x 1.1 | 625 | LVPECL | 3.3 | 25 | 获取样片, | |
| 8 | 5.0 x 3.2 x 1.1 | 800 | LVDS | 3.3 | 25 | 获取样片, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filled视频和培训
Overview and Demo of XF and XP Family of Field-Programmable Clock Oscillators
The XF and XP family of field-programmable clock oscillators (XOs) are optimized for use data centers, optical and wireline communication network, and industrial level equipment that demands very low noise, stable, and accurate timing/clock sources. These devices are single-output clock oscillators with an integrated resonator that utilizes a proprietary ASIC with a key focus on reduction in phase noise and phase jitter. Typical phase jitter is 120fs over 12kHz to 20MHz bandwidth. These chips are available in a wide frequency range from 15MHz to 2100MHz.
