概览
描述

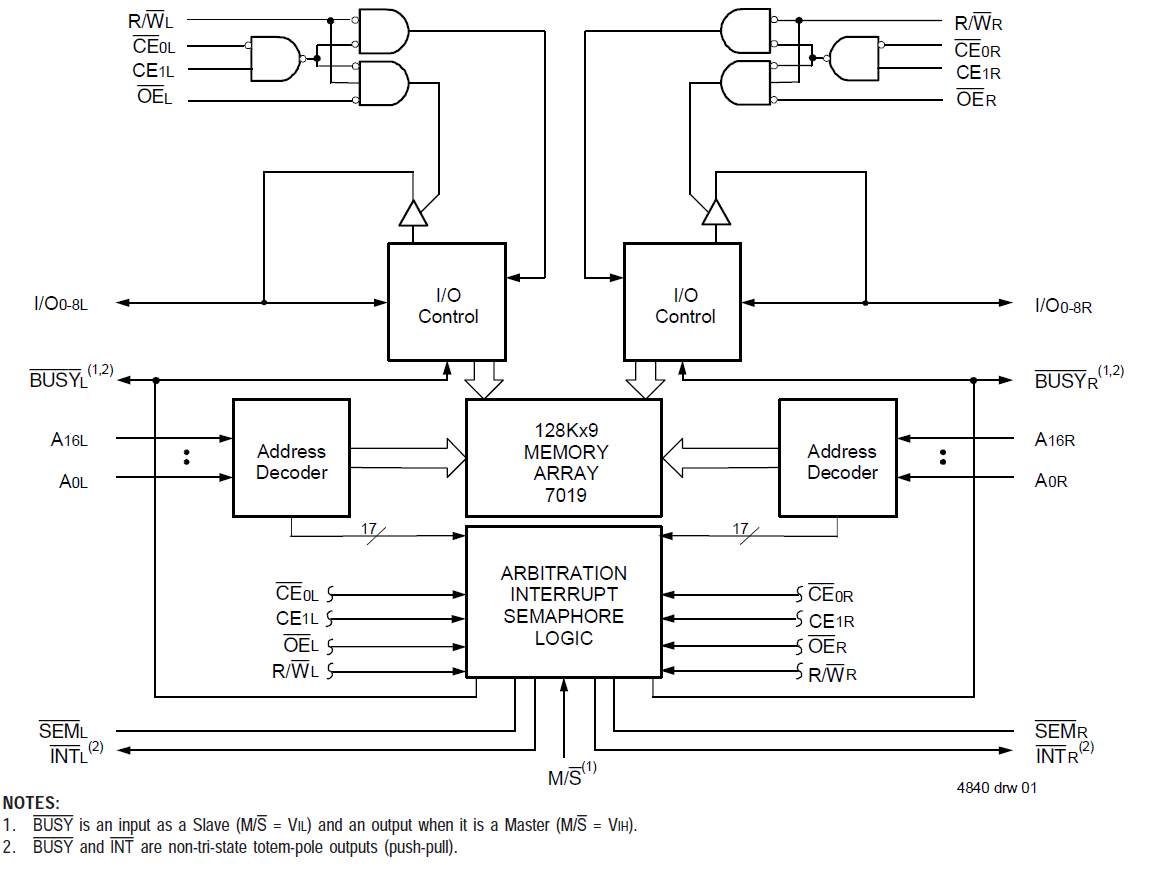

The 7019 is a high-speed 128K x 9 Dual-Port Static RAM designed to be used as a stand-alone Dual-Port RAM or as a combination MASTER/SLAVE Dual-Port RAM for 18-bit-or-more word systems. Using the IDT MASTER/SLAVE Dual-Port RAM approach in 18- bit or wider memory system applications results in full-speed, error-free operation without the need for additional discrete logic. An automatic power down feature controlled by CE permits the on-chip circuitry of each port to enter a very low standby power mode.
特性
- True Dual-Ported memory cells which allow simultaneous reads of the same memory location
- 7019 easily expands data bus width to 18 bits or more
- Interrupt Flag
- On-chip port arbitration logic
- Full on-chip hardware support of semaphore signaling between ports
- Fully asynchronous operation from either port
- TTL-compatible, single 5V (±10%) power supply
- Available in 100- pin TQFP package
- Industrial temperature range (–40C to +85C) is available
文档
| 文档标题 | 类型 | 日期 | |
|---|---|---|---|
PDF256 KB
|
数据手册
|
||
PDF129 KB
|
应用文档
|
||
PDF197 KB
|
应用文档
|
||
PDF198 KB
|
应用文档
|
||
PDF156 KB
|
应用文档
|
||
PDF183 KB
|
应用文档
|
||
PDF97 KB
|
应用文档
|
||
PDF645 KB
|
End Of Life Notice
|
||
PDF24 KB
|
产品变更通告
|
||
PDF164 KB
|
产品变更通告
|
||
PDF290 KB
|
产品变更通告
|
||
PDF80 KB
|
产品变更通告
|
||
PDF26 KB
|
产品变更通告
|
||
PDF150 KB
|
产品变更通告
|
||
PDF65 KB
|
产品变更通告
|
||
PDF138 KB
|
产品变更通告
|
||
PDF150 KB
|
产品变更通告
|
||
PDF48 KB
|
产品变更通告
|
||
PDF274 KB
|
产品变更通告
|
||
PDF44 KB
|
产品变更通告
|
设计和开发
软件与工具
模型
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
产品选择
Processing table
| TQFP | 100 | C | No | Tray | ||
| TQFP | 100 | C | No | Reel | ||
| TQFP | 100 | C | No | Tray | ||
| TQFP | 100 | C | No | Reel | ||
| TQFP | 100 | I | No | Tray | ||
| TQFP | 100 | I | No | Reel |
