储存器和逻辑器件

Renesas 的低电压 CMOS (LVC) 逻辑系列由专用于低压应用的高性能总线接口组件组成。 这些器件与具有类似名称的行业标准组件完全兼容，专为 3.3V 和 2.5V 操作而设计。 低电压 CMOS 组件专为具有 5V 公差的热插入应用而设计。 这些器件的输入或输出端都没有至 VDD 的钳位二极管，从而使接口耐压能力高于 VDD。 Renesas 可提供低电压 CMOS 数据缓冲器、驱动程序、锁存器、总线收发器和触发器。

低电压 CMOS 系列共有三个基本选项可供选择：高驱动、平衡驱动和总线保持。

  • 高驱动 (±24mA) 低电压 CMOS 零件适合重负载。
  • 平衡驱动低电压 CMOS 零件使用内部串联电阻控制输出波形的上升沿和下降沿。 平衡驱动通过控制输出沿速率提供卓越的低噪声性能，可在不牺牲速度性能的情况下实现所有输出信号的局部串联端接。 在大多数应用中不需要其他线路端接。 对称驱动功能将利用类似边沿速率驱动高和低传输线，解决大部分线路平衡和端接问题。
  • 总线保持低电压 CMOS 零件可在总线被禁用或没有活动驱动器时保持总线的最后活跃状态。

产品选型表

    Processing table
    Function
    Pkg. Code
    Temp. Range
    Bus Width (bits)
    Core Voltage (V)
    Output Type
    Speed Grade
    105°C Max. Case Temp.
    器件号
    74LVC162244A
    3.3V CMOS 16-Bit Buffer/Driver with 3-State Outputs, 5.0V Tolerant I/O, and Bus-Hold    		 Buffer/Driver PAG48, PVG48 -40 to 85°C 16 3.3 3-state A

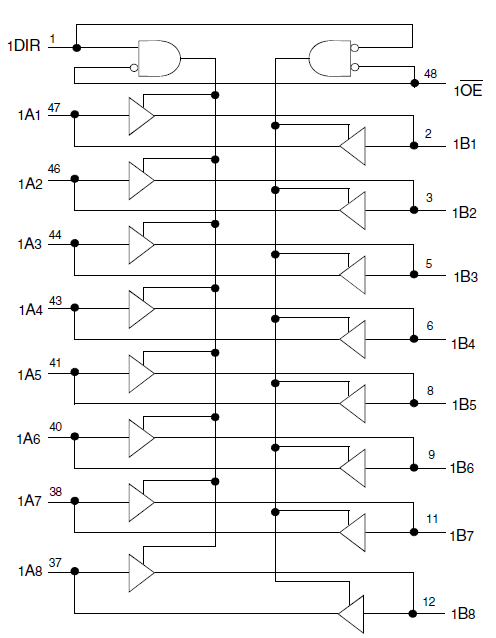

    74LVC162245A
    3.3V CMOS 16-Bit Bus Transceiver with 3-State Outputs and 5.0V Tolerant I/O    		 Transceiver PAG48, PVG48 -40 to 85°C 16 3.3 3-state A

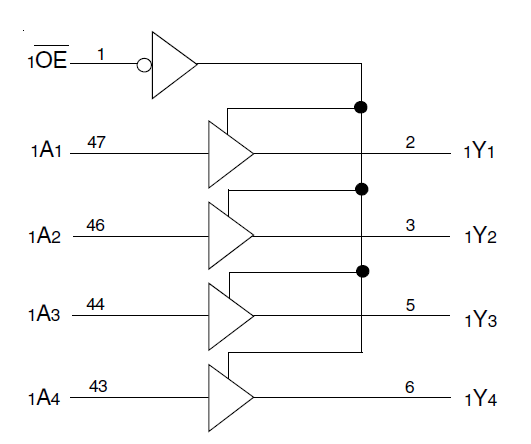

    74LVC16244A
    3.3V CMOS 16-Bit Buffer/Driver with 3-State Outputs, 5.0V Tolerant I/O    		 Buffer/Driver PAG48 -40 to 85°C 16 3.3 3-state A

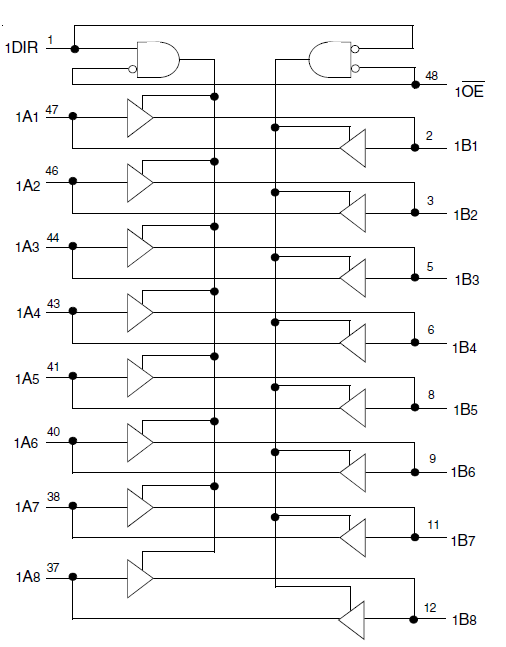

    74LVC16245A
    3.3V CMOS 16-Bit Bus Transceiver with 3-State Outputs and 5.0V Tolerant I/O    		 Transceiver PAG48, PVG48 -40 to 85°C 16 3.3 3-state A

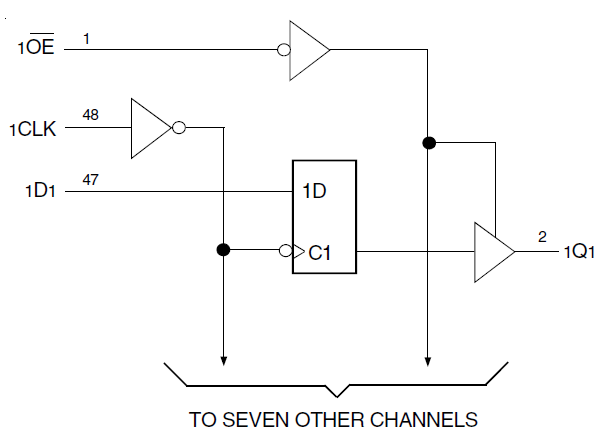

    74LVCH162374A
    3.3V CMOS 16-Bit Edge-Triggered D-Type Flip-Flop with 3-State Outputs, 5.0V Tolerant I/O, and Bus-Hold    		 Flip-flop PAG48 -40 to 85°C 16 3.3 3-state A

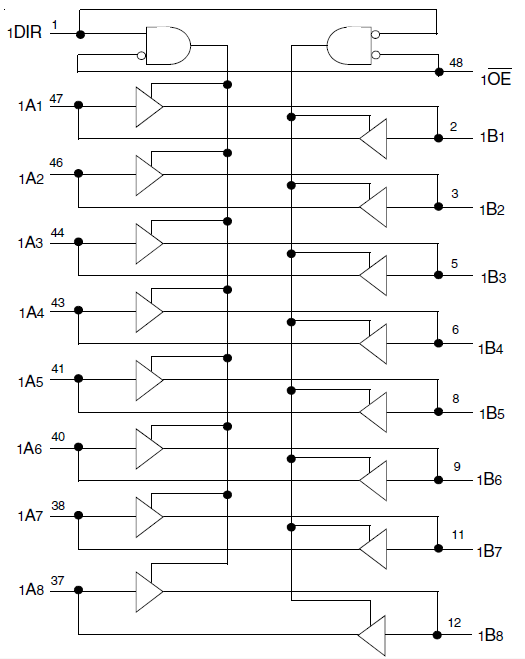

    74LVCH16245A
    3.3V CMOS 16-Bit Bus Transceiver with 3-State Outputs, 5.0V Tolerant I/O, and Bus-Hold    		 Transceiver PAG48 -40 to 85°C 16 3.3 3-state A

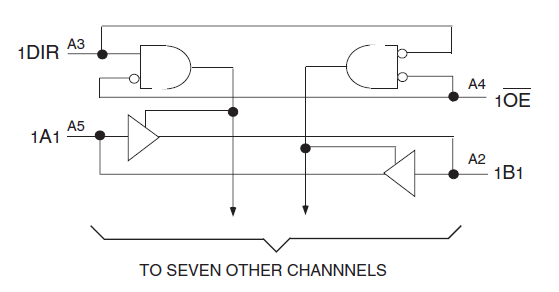

    74LVCH32245A
    3.3V CMOS 32-Bit Bus Transceiver with 3-State Outputs, 5.0V Tolerant I/O, and Bus-Hold    		 Bus Transceiver BFG96 -40 to 85°C 32 3.3 3-state A

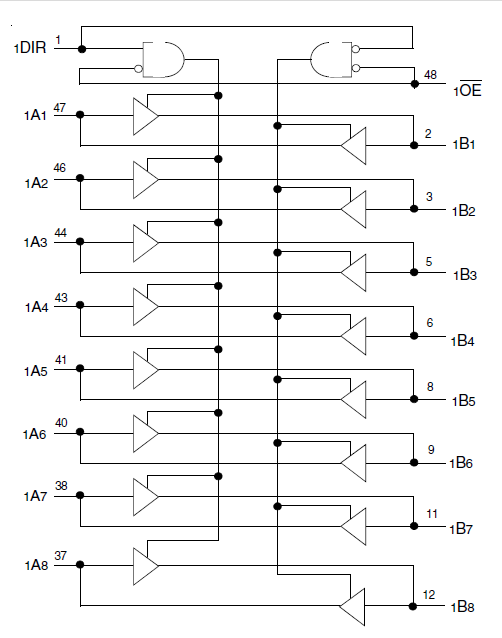

    74LVCHR162245A
    3.3V CMOS 16-Bit Bus Transceiver with 3-State Outputs, 5.0V Tolerant I/O, and Bus-Hold    		 Transceiver PAG48 -40 to 85°C 16 3.3 3-state A

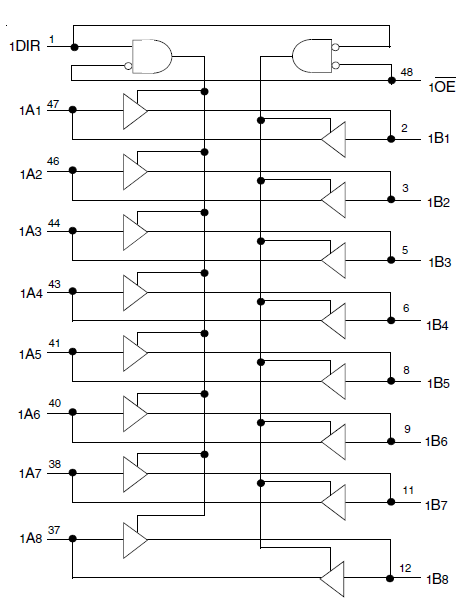

    74LVCR162245A
    3.3V CMOS 16-Bit Bus Transceiver with 3-State Outputs, 5.0V Tolerant I/O    		 Transceiver PAG48 -40 to 85°C 16 3.3 3-state A
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product

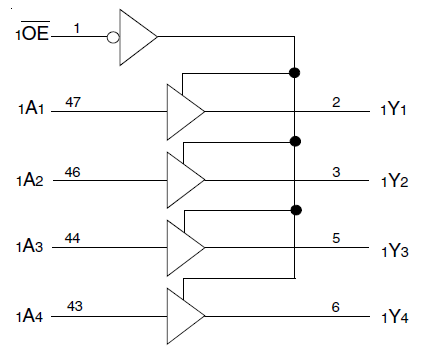

    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
