Overview
The Renesas Solution Starter Kit for RX23W is the perfect starter kit for developers who are new to the RX23W (Code Flash 512KB, Pin Count 85-pin).

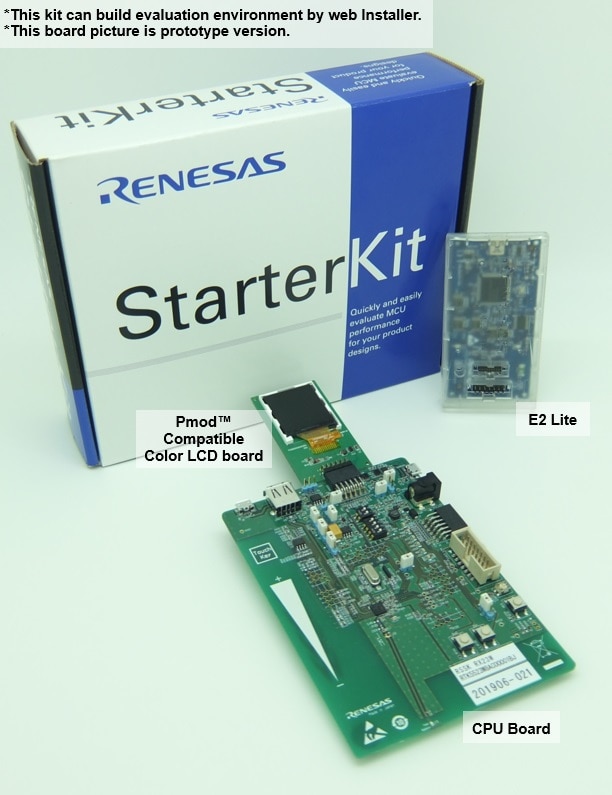

The kit includes an LCD display module and an on-chip debugging emulator. Download the integrated development environment from the Renesas website and start evaluating RX23W performance, right after unboxing the Renesas Solution Starter Kit.
特性

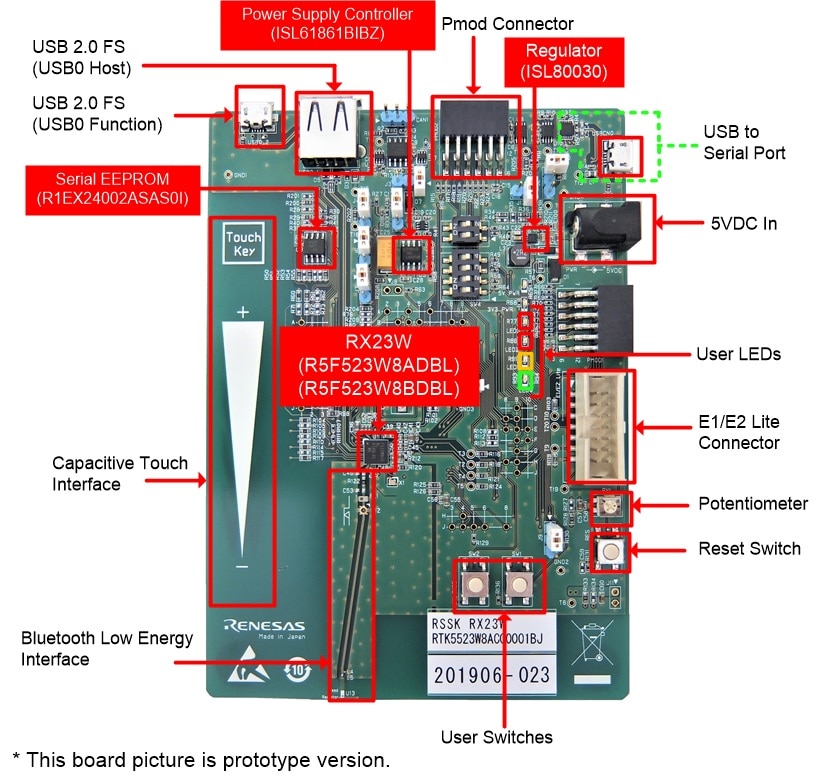

- Devices on board
- Renesas Solution Starter Kit for RX23W: R5F523W8ADBL (Code Flash 512KB, Pin Count 85-pin)
- Renesas Solution Starter Kit for RX23W with Built-in Trusted Secure IP Lite : R5F523W8BDB (Encrypt Function Supported, Code Flash 512KB, Pin Count 85-pin)
- RX23W builds in Trusted Secure IP Lite. AES encryption function and robust key management can be evaluated. (*1)
- Bluetooth® 5.0 Low Energy can be evaluated. (Download the sample code including project for Touch feature evaluation on Renesas Web site.)
- Touch feature (self-capacitive type) can be evaluated. (Download the sample code including project for Touch feature evaluation on Renesas Web site.)
- 1 channel USB Function and 1 channel USB Host can be evaluated. (*2)
- Communication function such as CAN (*2), IIC and SCI can be evaluated.
- Sample codes with easy to understand coding technique are available on Renesas Web site.
- Required IBM-PC compatible PC (need USB interface, Processor 1GHz over), OS: Windows 10/8.1 (other than the listed OS is not supported)
- Application combining functions using FIT (Firmware Integration Technology) module can be evaluated.
- *1 : The product part number (ordering number) differs according to whether or not the MCU includes the encryption function.
- *2 : When using this function, prepare an external power supply (AC adapter etc.) that outputs 5V. Suitable plugs are center plus, outer diameter 5.5mm, inner diameter 2.1mm.
应用
文档
| 文档标题 | 类型 | 日期 | |
|---|---|---|---|
PDF484 KB
|
手册 - 开发工具
|
||
PDF3.44 MB 相关文件：
|
应用文档
|
||
PDF3.80 MB 相关文件：
|
应用文档
|
||
PDF1.58 MB 相关文件：
|
应用文档
|
||
PDF713 KB
|
应用文档
|
||
PDF914 KB
|
应用文档
|
||
PDF2.64 MB
|
应用文档
|
||
PDF2.77 MB
|
应用文档
|
||
PDF701 KB 相关文件：
|
应用文档
|
||
PDF402 KB
|
应用文档
|
||
PDF2.13 MB
|
手册 - 开发工具
|
||
PDF1.25 MB
|
手册 - 开发工具
|
||
PDF154 KB
|
手册 - 开发工具
|
||
PDF1.67 MB
|
手册 - 开发工具
|
||
PDF2.36 MB
|
手册 - 开发工具
|
||
PDF95 KB
|
手册 - 软件
|
||
PDF183 KB
|
Release Note
|
||
PDF210 KB
|
Tool News - Release
|
||
PDF236 KB
|
Tool News - Release
|
||
PDF392 KB
|
Tool News - Release
|
设计和开发
软件与工具
软件与工具
| Quick-Connect IoT PlatformQuick-Connect IoT platform enables fast prototyping by providing compatible hardware and software building blocks. | Other Hardware | 瑞萨电子 |
样例程序
样例程序
| 文档标题 | Type | Date | |
|---|---|---|---|
ZIP23.05 MB 相关文件：
Application: IoT Applications, Key Technology Function: Communication Interface |
样例程序 |
||
ZIP62.08 MB 相关文件：
Application: Consumer Electronics, Industrial Compiler: CC-RX, ICCRX Function: Communication Interface, Driver or Library IDE: e2 studio, IAR EWRX |
样例程序 |
||
[Software=RX Driver Package|V1.29],[Toolchains=CC-RX|V2.08.00] ZIP22.46 MB 相关文件：
Application: IoT Applications, Key Technology Compiler: CC-RX Function: Application Example IDE: e2 studio |
样例程序 |
||
[Software=RX Driver Package|v1.37],[Toolchains=CC-RX|v2.08.01]
ZIP77.50 MB 相关文件：
Application: IoT Applications, Key Technology Compiler: CC-RX Function: Communication Interface, Driver or Library IDE: e2 studio |
样例程序 |
||
ZIP54.04 MB 相关文件：
Compiler: CC-RX IDE: e2 studio |
样例程序 |
产品选择
Processing table
| Renesas Solution Starter Kit for RX23W | RX23W Encrypt Function; None, Debugger supplied: E2 Lite | |||
| Renesas Solution Starter Kit for RX23W Built-in Trusted Secure IP Lite | RX23W Encrypt Function; Support, Debugger supplied: E2 Lite |
