Renesas offers power MOSFET products suitable for various applications such as power supply, motor drive, high-frequency amplification, and load switch. We have commercialized it according to each reliability level of consumer equipment.

General-Purpose Power MOSFETs

Renesas general-purpose power MOSFETs provide support for high-efficiency drive and low heat design. These MOSFETS are suitable for switching (motor drive, etc.) and load switch applications, and offer low on-resistance, high-speed switching and high-robustness.

N-Channel MOSFETs for Motor Drive

This low on-resistance and low gate charge product series meets the large current requirements of the industrial segment.

Features

  • Supports large current (Id = 100A [Ta = 25 °C])
  • Low on-resistance (2.3mΩ - 2.75mΩ (typ.) / 40V products)
  • Higher system efficiency extends operating time, and low heat generation allows smaller heat sink/system
  • Low gate charge (Qg) (68nC (typ.) / 40V products)
  • High-efficiency drive by reducing load to drive circuit, and more compact size through gate driver optimization
  • 55V and 60V low Qg products are also under development

MOSFETs for Motor Drive

Applications

The N-channel MOSFETs can be used in motor drive equipment such as power tools and power-assisted bicycles.

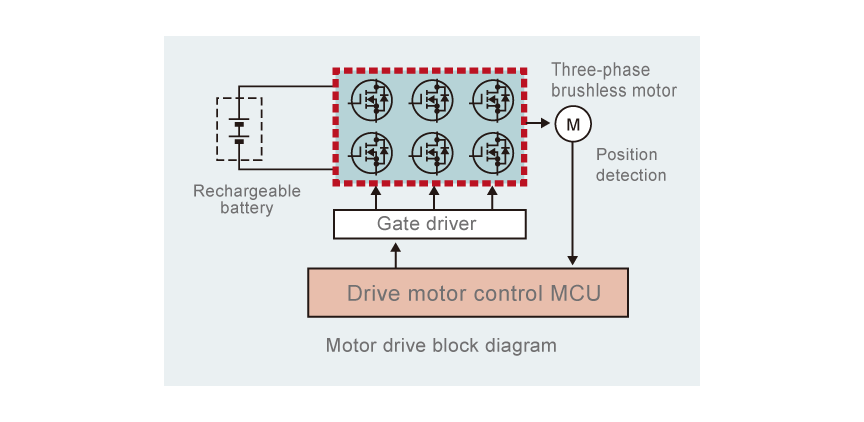

MOSFETs for Motor Drive Block Diagram

N-Channel MOSFETs for Load Switches

This product series reduces the number of parallel connections needed to support large currents by improving power system efficiency and reducing the number of devices used, contributing to power-saving and space-saving network servers and storage systems.

Features

  • Recommended for load switch applications that require low loss
    *UPA2766T1A: RDS(on) = 0.72mΩ (typ.)
  • 5mm x 6mm small package (8pHVSON)

Applications

Applications for which the N-channel MOSFETs for load switching can be used include ORing switches for server power supply and battery protection circuits in mobile devices.

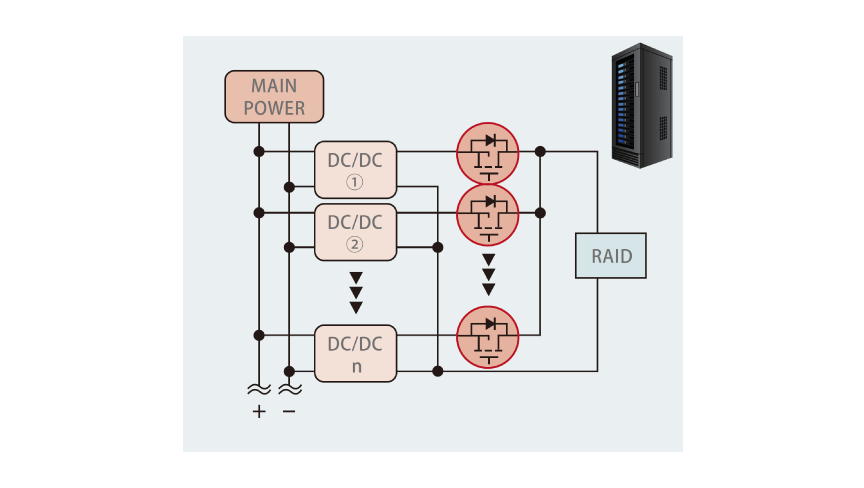

MOSFETS for Load Switching Diagram

产品选型表

    Processing table
    Nch/Pch
    Channels (#)
    Pkg. Type
    Standard Pkg. Type
    VDSS (Max) (V)
    ID (A)
    RDS (ON) (Max) @10V or 8V (mohm)
    RDS (ON) (Max) @ 4V or 4.5V or 5V (m ohm)
    RDS (ON) (Max) @2.5V or 1.8V (mohm)
    RDS (ON) (Typical) @ 10V / 8V (mohm)
    Pch (W)
    Vgs (off) (Max) (V)
    VGSS
    Ciss (Typical) (pF)
    QG (nC) typ (nC)
    Mounting Type
    Application
    Series Name
    Target applications
    Function
    Automotive Qual.
    器件号
    2SJ598-ZK
    Pch Single Power Mosfet -60V -12A 130Mohm Mp-3Zk/To-252    		 Pch 1 MP-3ZK TO-252 / DPAK -60 -12 130 190 23 -2.5 -20 720 15 Surface Mount Consumer Use, Industrial
    2SJ601-ZK
    Pch Single Power Mosfet -60V -36A 31Mohm Mp-3Zk/To-252    		 Pch 1 MP-3ZK TO-252 / DPAK -60 -36 31 46 65 -2.5 -20 3300 63 Surface Mount Consumer Use, Industrial
    2SJ687-ZK
    Pch Single Power Mosfet -20V -20A 7.0Mohm Mp-3Zk/To-252    		 Pch 1 MP-3ZK TO-252 / DPAK -20 -20 7 20 36 -1.45 -12 4400 57 Surface Mount Consumer Use, Industrial
    2SK1317
    Nch Single Power Mosfet 1500V 2.5A 12000Mohm To-3P    		 Nch 1 TO-3P TO-3P 1500 2.5 12000 9000 100 4 20 990 Through Hole Consumer Use, Industrial
    2SK1835
    Silicon N Channel MOSFET    		 Nch 1 TO-3P TO-3P 1500 4 7000 4600 125 4 20 1700 Through Hole Consumer Use, Industrial
    2SK2225
    Nch Single Power Mosfet 1500V 2A Mohm To-3Pfm    		 Nch 1 TO-3PFM TO-3PF 1500 2 12000 9000 50 4 20 990 Through Hole Consumer Use, Industrial
    2SK2225-80-E
    Nch Single Power MOSFET 1500V 2A 12000mOhm TO-3PFP    		 Nch 1 TO-3PFP TO-3PF 1500 2 12000 9000 50 4 20 990 Through Hole Consumer Use, Industrial
    2SK3812-ZP
    Nch Single Power Mosfet 60V 110A 2.8Mohm Mp-25Zp/To-263    		 Nch 1 MP-25ZP TO-263 / D2PAK 60 110 2.8 3.7 213 2.5 20 16800 250 Surface Mount Consumer Use, Industrial
    N0400P
    Pch Single Power Mosfet -40V -15A 40Mohm Mp-3Zk/To-252    		 Pch 1 MP-3ZK TO-252 / DPAK -40 -15 40 73 25 -1.5 -12 1400 16 Surface Mount Consumer Use, Industrial
    N0412N
    Nch Single Power Mosfet 40V 100A 3.7Mohm To-220    		 Nch 1 TO-220 TO-220 40 100 3.7 119 4 20 5550 100 Through Hole Consumer Use, Industrial N0 Series
    N0413N
    Nch Single Power Mosfet 40V 100A 3.3Mohm To-263    		 Nch 1 MP-25ZK TO-263 / D2PAK 40 100 3.3 119 4 20 5550 100 Surface Mount Consumer Use, Industrial N0 Series
    N0434N
    Nch Single Power Mosfet 40V 100A 3.7Mohm To-262    		 Nch 1 TO-262 TO-262 / I2PAK 40 100 3.7 119 4 20 5550 100 Through Hole Consumer Use, Industrial N0 Series
    N0435N
    Power MOSFETs with Support for High-efficiency Drive and Low Heat Design    		 Nch 1 MP-25LK 40 80 4.8 3.9 +20/-20 3200 62 Through Hole Consumer Use, Industrial
    N0436N
    Power MOSFETs with Support for High-efficiency Drive and Low Heat Design    		 Nch 1 TO-252 TO-252 / DPAK 40 56 4.7 3.9 +20/-20 3200 62 Surface Mount Consumer Use, Industrial
    N0438N
    Power MOSFETs with Support for High-efficiency Drive and Low Heat Design    		 Nch 1 TO-252 TO-252 / DPAK 40 52 7.5 6.1 +20/-20 1900 36 Surface Mount Consumer Use, Industrial
    N0601N
    Nch Single Power Mosfet 60V 100A 4.2Mohm To-263    		 Nch 1 MP-25ZK TO-263 / D2PAK 60 100 4.2 156 4 20 7730 133 Surface Mount Consumer Use, Industrial N0 Series
    N0602N
    Nch Single Power Mosfet 60V 100A 4.6Mohm To-220    		 Nch 1 TO-220 TO-220 60 100 4.6 156 4 20 7730 133 Through Hole Consumer Use, Industrial N0 Series
    N0603N
    Nch Single Power Mosfet 60V 100A 4.6Mohm To-262    		 Nch 1 TO-262 TO-262 / I2PAK 60 100 4.6 156 4 20 7730 133 Through Hole Consumer Use, Industrial N0 Series
    N0604N
    Nch Single Power Mosfet 60V 82A 6.5Mohm To-220    		 Nch 1 TO-220 TO-220 60 82 6.5 116 4 20 4150 75 Through Hole Consumer Use, Industrial
    N0607N
    N-Channel Power Mosfet 60 V, 65 A, 8.4 MΩ    		 Nch 1 TO-252 TO-252 / DPAK 60 65 8.4 87.4 4 20 3300 58 Surface Mount Consumer Use, Industrial
    N0608N
    N-Channel Power Mosfet 60 V, 52 A, 14.3 mΩ    		 Nch 1 TO-252 TO-252 / DPAK 60 52 14.3 12.3 +20/-20 1950 37 Surface Mount Consumer Use, Industrial
    N0608N
    Power MOSFETs with Support for High-efficiency Drive and Low Heat Design    		 Nch 1 TO-252 TO-252 / DPAK 60 52 14.3 12.3 +20/-20 1950 37 Surface Mount Consumer Use, Industrial
    N0609N
    Power MOSFETs with Support for High-efficiency Drive and Low Heat Design    		 Nch 1 MP-25LK 60 120 3 2.5 +20/-20 11300 210 Through Hole Consumer Use, Industrial
    RBK04U04GNS
    Nch Single Power MOSFETs 40V 35A 1.5mohm HSON-8pin    		 Nch 1 HSON Power SON-8 5x6 40 35 1.5 1.2 83 4 +20/-20 6900 111 Surface Mount Consumer Use, Industrial
    RJE0601JPE
    Silicon P Channel MOS FET Series Power Switching    		 Pch 1 LDPAK(S)-(1) TO-263 / D2PAK -60 -40 27 22 50 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0603JPE
    Silicon P Channel MOS FET Series Power Switching    		 Pch 1 LDPAK(S)-(1) TO-263 / D2PAK -60 -50 15 12 100 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0605JPD
    Silicon P Channel MOS FET Series Power Switching    		 Pch 1 DPAK(S) TO-252 / DPAK -60 -10 75 58 30 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0605JPV
    Silicon P Channel MOS FET Series Power Switching    		 Pch 1 MP-3ZK TO-252 / DPAK -60 -10 75 58 30 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0607JSP
    Silicon P Channel MOS FET Series Power Switching    		 Pch 2 SOP SOP-8 / SOIC-8 -60 -1.5 260 140 2 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0609JPD
    Silicon P Channel MOS FET Series Power Switching    		 Pch 1 DPAK(S) TO-252 / DPAK -60 -4 100 79 30 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0609JPV
    Silicon P Channel MOS FET Series Power Switching    		 Pch 1 MP-3ZK TO-252 / DPAK -60 -4 100 79 30 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0615JSP
    -60 V, -10A Silicon P Channel Thermal FET Power Switching    		 Pch 1 SOP SOP-8 / SOIC-8 -60 -10 65 53 2.5 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0616JSP
    –60V, –10A, P Channel Thermal FET Power Switching    		 Pch 1 SOP SOP-8 / SOIC-8 -60 -4 90 77 2.5 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0617JSP
    –60V, –1.5A, P Channel Thermal FET Power Switching    		 Pch 2 SOP SOP-8 / SOIC-8 -60 -1.5 350 425 272 1.5 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0618JSP
    Silicon P Channel MOSFET Series Power Switching    		 Pch 1 SOP SOP-8 / SOIC-8 -60 -10 120 98 2.5 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0620JPD
    –60V, –2A, P Channel Thermal FET Power Switching    		 Pch 1 DPAK(S) TO-252 / DPAK -60 -10 120 180 100 40 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0621JSP
    –60V, –2A, P Channel Thermal FET Power Switching    		 Pch 2 SOP SOP-8 / SOIC-8 -60 -2 270 400 231 2 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0623JSP
    Silicon P Channel MOSFET Series Power Switching    		 Pch 1 SOP SOP-8 / SOIC-8 -60 -1.5 350 425 272 1.5 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0625JPV
    P Channel Thermal FET Series Power Switching    		 Pch 1 MP-3ZP MP-3ZP -60 -17 61 46.6 50 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJF0408JPD
    Silicon N Channel MOSFET Series Power Switching    		 Nch 1 DPAK(S) TO-252 / DPAK 40 30 25 19 30 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJF0409JSP
    40V, 5A Silicon N Channel Thermal FET Power Switching    		 Nch 2 SOP SOP-8 / SOIC-8 40 5 86 70 1.5 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJF0410JPE
    40V - 40A - N Channel Thermal FET Power Switching    		 Nch 1 LDPAK(S)-(1) TO-263 / D2PAK 40 40 13 9 100 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJF0411JPD
    Thermal FETs    		 Nch 1 DPAK(S) TO-252 / DPAK 40 34 37 23.8 40 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJF0412JSP
    40 V - 10A - N Channel MOS FET Power Switching    		 Nch 1 SOP SOP-8 / SOIC-8 40 10 37 23 2.5 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJF0604DPD
    60V, 5A Silicon N Channel Thermal FET Power Switching    		 Nch 1 DPAK(S) TO-252 / DPAK 60 5 75 100 42 30 Surface Mount Consumer Use, Industrial Thermal FETs
    RJF0604JPD
    60V, 5A Silicon N Channel Thermal FET Power Switching    		 Nch 1 DPAK(S) TO-252 / DPAK 60 5 75 100 42 30 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJF0605DPD
    Silicon N Channel MOS FET Series Power Switching    		 Nch 1 DPAK(S) TO-252 / DPAK 60 20 38 50 24 40 Surface Mount Consumer Use, Industrial Thermal FETs
    RJF0605JPD
    Silicon N Channel MOS FET Series Power Switching    		 Nch 1 DPAK(S) TO-252 / DPAK 60 20 38 50 24 40 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJF0605JPV
    Thermal FETs    		 Nch 1 MP-3ZK TO-252 / DPAK 60 20 38 50 24 40 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJF0606DPE
    Nch Power MOSFETs    		 Nch LDPAK(S)-(1) TO-263 / D2PAK 60 40 19 25 12 50 Surface Mount Consumer Use, Industrial Thermal FETs
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
