Renesas 提供差分或单端输入阻抗的射频放大器，具备各种增益、噪声因数和线性功能。这款产品采用创新 Zero-Distortion™ 技术，可实现低电流消耗的高输出 IP3，明显优于单增益模块放大器。

此外，这款射频放大器还内置宽带阻抗平衡器，支持差异性输入和输出的宽带应用。这款产品专为高可靠性的操作而设计，结合使用了硅锗放大器模具和集成式无源器件 (IPD) 模具以及经验证的高容量 QFN 封装。

关于射频放大器

射频放大器主要用于放大无线电通讯设备的高频信号。射频功率放大器通常用于发射器和接收器中，这两款产品对于增益、噪声因数和线性的要求有所不同。这款高性能的低功耗射频放大器在单端和差分配置下，可帮助系统设计师以最低数量的元件实现各类射频发射器应用。

RF 产品

产品选型表

    Processing table
    器件号
    Input Freq (MHz)
    Output Freq Range (MHz)
    Supply Voltage (V)
    Pkg. Type
    Lead Count (#)
    Input IP3 (dBm)
    Gain (dB)

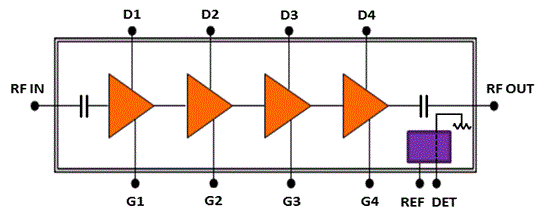

    EXP8602
    81GHz – 86GHz Medium Power Amplifier    		 81000 - 86000 81000 - 86000 3.8 - 4.2 WAFER 0 32.5 19
    F0109
    Dual Path Ultra-Low Noise Amplifier - 0.65GHz to 1.0GHz    		 650 - 1000 650 - 1000 4.75 - 5.25 VFQFPN 16 18
    F0110
    Dual Path Ultra-Low Noise Amplifier - 1.5GHz to 2.3GHz    		 1500 - 2300 1500 - 2300 4.75 - 5.25 VFQFPN 16 18.5
    F0111
    Dual Path Ultra-Low Noise Amplifier - 2.2GHz to 4.2GHz    		 2500 - 4200 2500 - 4200 4.75 - 5.25 VFQFPN 16 18.5
    F0424
    High-Gain Broadband RF Amplifier 600MHz to 5000MHz    		 600 - 4200 600 - 4200 3.15 - 5.25 DFN 8 17
    F1129
    Single-ended Input, Differential Output High Gain RF Amplifier    		 1400 - 6000 1400 - 3200 4.75 - 5.25 VFQFPN 12 32 18
    F1420
    RF Amplifier 700MHz to 1.1GHz    		 700 - 1100 700 - 1100 4.75 - 5.25 VFQFPN 24 17.4
    F1421
    RF Amplifier 1700MHz to 2.2GHz    		 1700 - 2200 1700 - 2200 4.75 - 5.25 VFQFPN 24 20.3
    F1423
    Differential Input, Single-ended Output Amplifier    		 600 - 3000 600 - 3000 4.75 - 5.25 VFQFPN 24 28.7 13.1

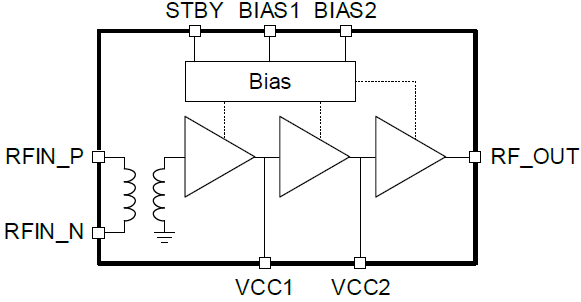

    F1427
    High Gain, High Linearity, 0.5W RF Driver Amplifier - 2300MHz to 4200MHz    		 2300 - 4200 2300 - 4200 5 VFQFPN 16 35.5
    F1429
    Differential Input, Single-ended Output High Gain RF Amplifier    		 1400 - 6000 1400 - 3200, 3000 - 4200 4.75 - 5.25 VFQFPN 12 35 18
    F1471
    High Linearity, 0.5W RF Driver Amplifier - 400MHz to 4200MHz    		 400 - 4200 400 - 4200 5 VFQFPN 16 17
    F1475
    1W High Linearity RF Amplifier 1350MHz to 2800MHz    		 3300 - 4200 3300 - 4200 4.75 - 5.25 VFQFPN 20 21
    F1478
    High Gain RF Amplifier    		 1800 - 5000 1800 - 5000 3.15 - 5.25 VFQFPN 16 29.6
    F1485
    High Gain RF Amplifier 2300MHz to 5000MHz    		 2300 - 5000 2300 - 5000 4.75 - 5.25 VFQFPN 16 36.5
    F1490
    High Gain RF Amplifier 1.8GHz to 6.4GHz    		 1800 - 5000 1800 - 5000 4.75 - 5.25 VFQFPN 16 39.5
    F6921
    Dual-Channel Low Noise Amplifier for Ku-Band SATCOM    		 10700 - 12750 10700 - 12750 0.9 - 1 FCCSP 23 19.5
    F6922
    Dual-Channel Low Noise Amplifier for Ka-Band SATCOM    		 17700 - 21200 17700 - 21200 0.9 - 1 FCCSP 23 19.5
    F6923
    Dual-Channel Low Noise Amplifier for Ku/CDL-Band    		 14000 - 17000 14000 - 17000 0.9 - 1 FCCSP 23 19.5
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product

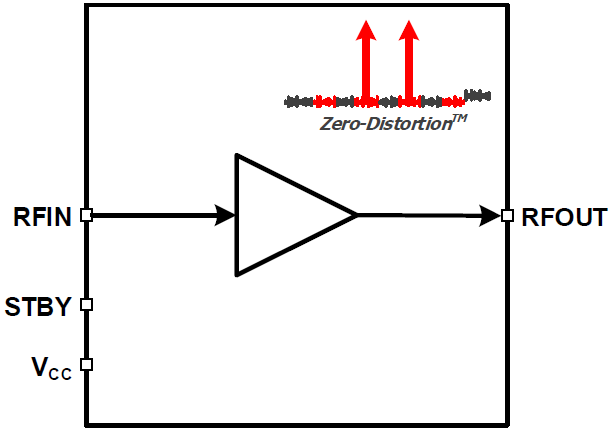

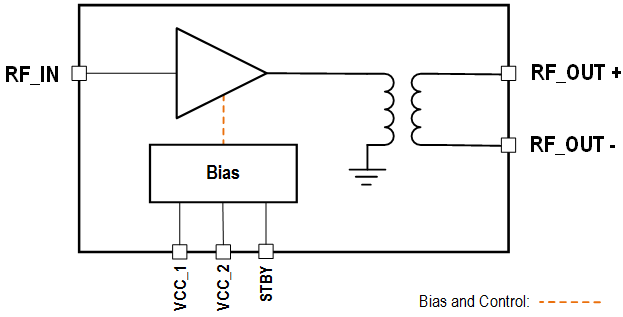

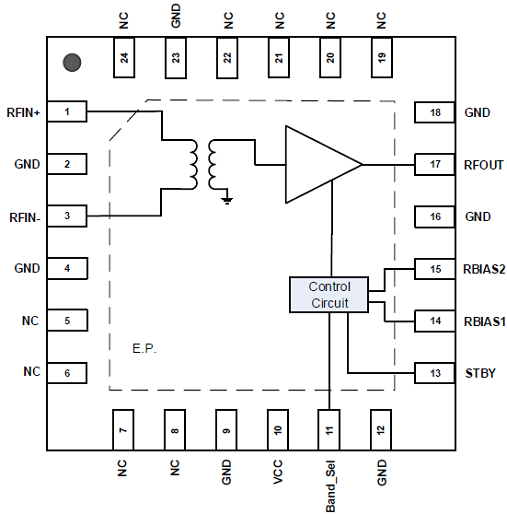

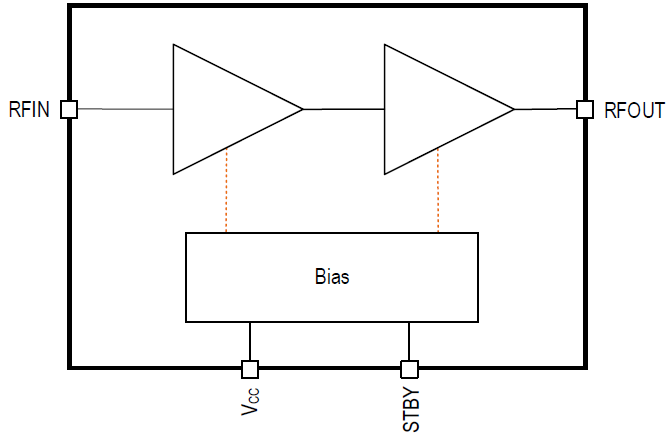

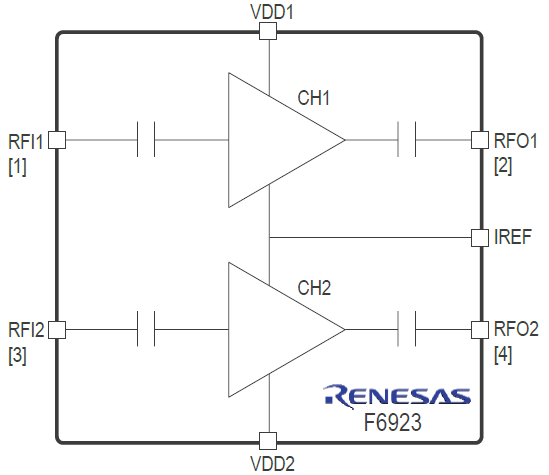

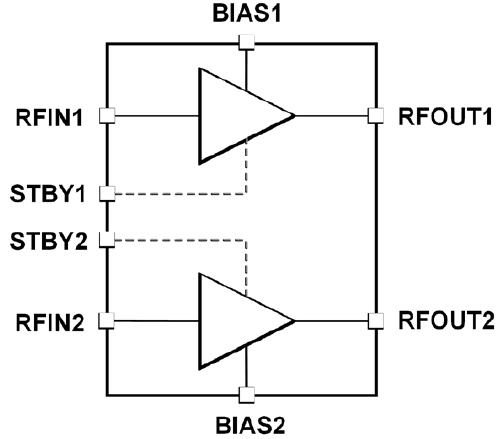

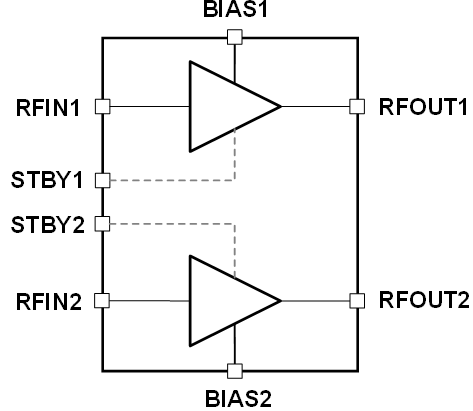

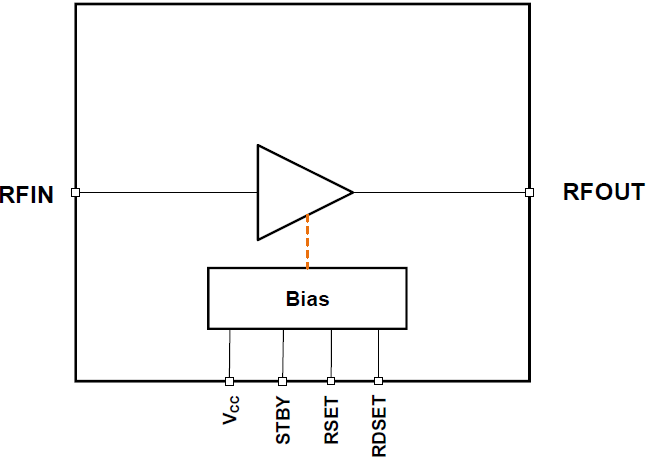

    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
