The EXP7603 is a GaAs MMIC power amplifier designed for 50-Ohm systems, and specified for operation in the 71 to 76 GHz range of E-Band. The EXP7603 enables delivery of 26dBm RF output power when driven to 3 dB of gain compression, and maintains good linearity well below the onset of gain compression. Typical small-signal gain is 17dB with flatness of ±0.75dB over a 1.25GHz window. DC power consumption is as low as 2W. The EXP7603 also provides a built-in E-Band power detector and internally de-couples DC from RF input and output ports to simplify system-level design.

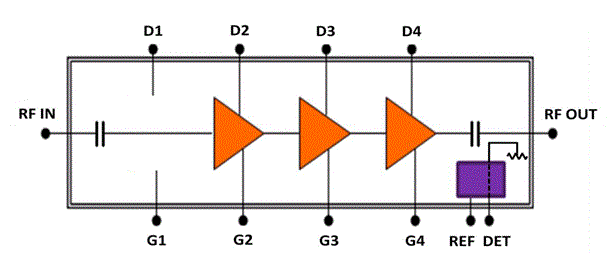

EXP7603 - Block Diagram
EXP7603 - Block Diagram
  • 71 to 76 GHz frequency range
  • 17dB nominal gain
  • 32.5dBm nominal IP3
  • 23.5dBm nominal P-1dB
  • 26dBm nominal P-3dB
  • 4V, 513mA nominal quiescent drain bias
  • 4.17mm x 1.87mm die size

文档

文档标题 类型 日期
EXP7603 Product Brief
PDF695 KB
产品简述

设计和开发

ECAD 模块

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

扩展 ECAD 模块

产品选择

    Processing table
    器件号
    Pkg. Type
    Temp. Grade
    Carrier Type
    购买 / 样片
    EXP7603-DNT
    warningNRND
    memory
    view_in_ar
    		WAFER C WFP
