Space & Harsh Environment

Renesas' radiation hardened source driver products reduce the size, weight, and power of satellite subsystems such as command and telemetry control and communication satellite payloads, enabling satellite manufacturers targeting various mission profiles to significantly increase system capacity and reduce solution footprint by 50%.

产品选型表

    Processing table
    Outputs (#)
    Max Channel Voltage (V)
    Integrated Decoder
    Output Saturation Voltage @350mA (V)
    High Dose Rate (HDR) (krad (Si))
    Low Dose Rate (LDR) (krad (Si))
    DSEE (SEL, SEB, etc.) (MeV*cm2/mg)
    Lead Count (#)
    Pkg. Type
    Temp. Range
    DLA SMD
    SMD URL
    Qualification Level
    Models Available
    器件号
    IS-2981EH
    Radiation Hardened 8-Channel Source Driver    		 8 80 否 2.2 100 50 , SEL free 18 SBDIP -55 to 125°C 5962R0052002V9A, 5962R0052002VVC 5962-00520 QML Class V (Space)

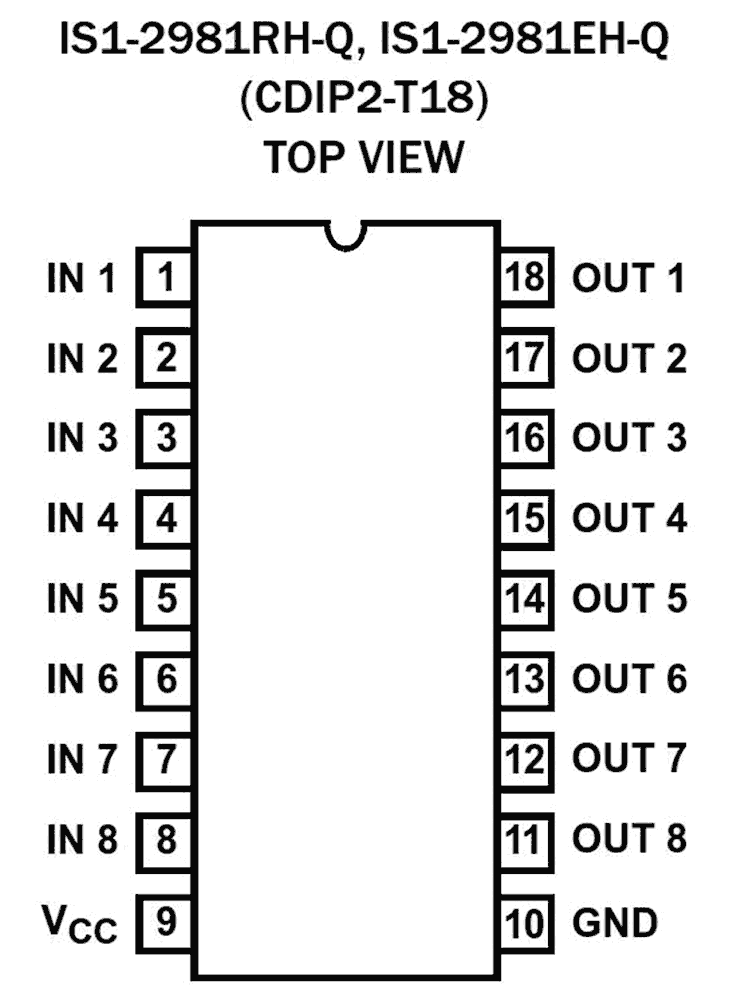

    IS-2981RH
    Radiation Hardened 8-Channel Source Driver    		 8 80 否 2.2 100 , SEL free 18 SBDIP -55 to 125°C 5962R0052001QVC, 5962R0052001V9A, 5962R0052001VVC 5962-00520 PROTO, QML Class Q (Military), QML Class V (Space)
    ISL72813SEH
    32-Channel Driver Circuit with an Integrated Decoder    		 32 42 否, 是的 1.4 100 50 , SEL free 44 CLCC -55 to 125°C 5962R1720801V9A, 5962R1720801VXA 5962-17208 PROTO, QML Class V (Space) PSPICE
    ISL72814SEH
    16-Channel Driver Circuit with an Integrated Decoder    		 16 42 否 1.3 100 75 , SEL free 28 CFP, DIE -55 to 125°C 5962R1822101VXC 5962-18221 PROTO, QML Class V (Space) PSPICE
    ISL73814SEH
    16-Channel Driver Circuit with an Integrated Decoder    		 16 42 否 1.3 75 , SEL free 28 CFP, DIE -55 to 125°C 5962L1822102VXC 5962-18221 PROTO, QML Class V (Space) PSPICE
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    文档

    文档标题
    		类型 日期
    AN9867: End of Life Derating: A Necessity or Overkill
    PDF 338 KB     		应用文档
    Intersil Commercial Lab Services
    PDF 467 KB     		手册
    Intersil Space Products Brochure
    PDF 4.85 MB     		手册
    Reduce Size, Weight and Power of Telecommunication Payload and Satellite Command/Telemetry Subsystems
    PDF 340 KB 日文     		白皮书
    How to Reduce SWaP of Satellite Command and Telemetry Subsystems
    PDF 352 KB     		白皮书
    5 items
