ICS-Low-Voltage-Motor-Control

The ICS-Low-Voltage-Motor-Control is a low-voltage motor control evaluation system and variable waveform display tool for RL78/G14, RX62T MCUs. There are many advantages of ICS (In-Circuit Scope), a variable waveform display tool for low-voltage motor control systems.

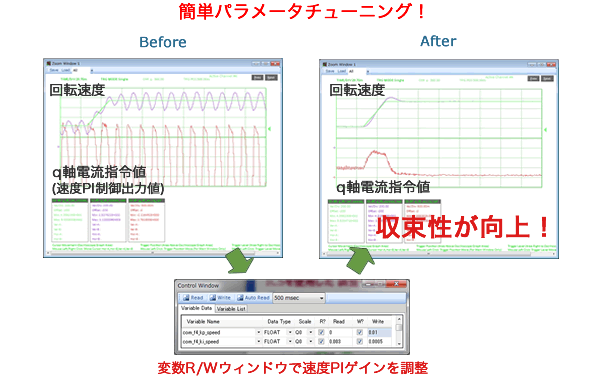

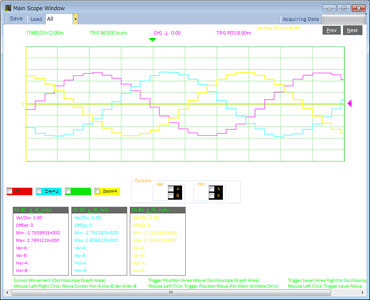

With this software, variable values can be read and written without stopping the program, allowing for safe debugging even while the motor is running. This eliminates the risk of short-circuiting the upper and lower arms, which could otherwise damage the inverter circuit. Additionally, parameters can be adjusted during tuning without modifying the program itself, significantly improving development efficiency. The software also enables real-time waveform display of variable data inside the microcontroller, allowing multiple physical quantities to be observed simultaneously over time. This capability enhances understanding of dynamic phenomena, facilitates problem identification, and further boosts development productivity.
