概览
描述

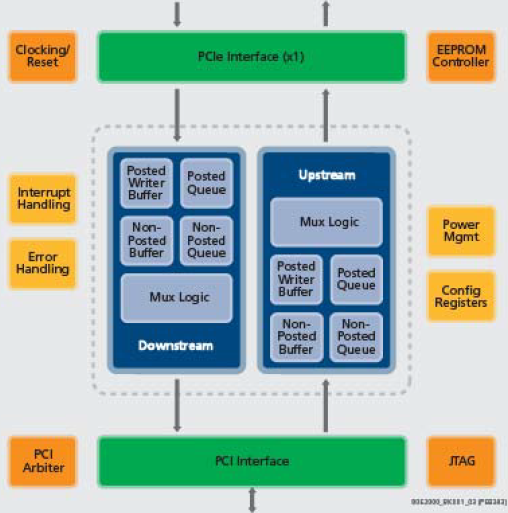

The 89HPEB383 provides a high performance, small footprint bridge from single lane PCI Express to 32 bit PCI. The device's PCI interface can operate up to 66 MHz. Three types of addressing modes are supported; transparent, opaque and non-transparent, giving designers flexibility.
特性
- PCI Express (x1) to PCI forward bridge
- Superior performance, low latency
- Non-transparent bridging support
- No power sequencing restrictions
- 10mm x 10 mm QFN
- 14mm x 14mm QFP
产品对比
应用
设计和开发
软件与工具
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
产品选项
当前筛选条件
