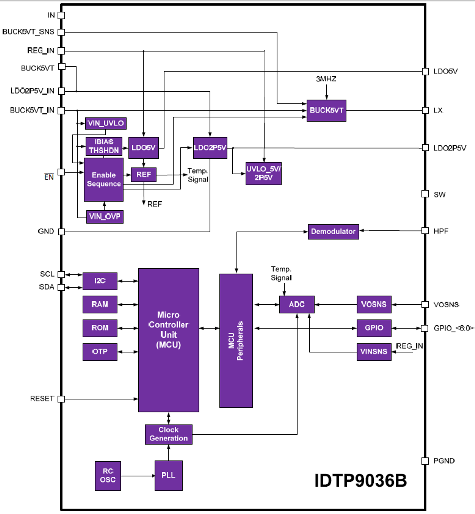

The P9036B is a highly-integrated WPC-compliant wireless power transmitter IC for power transmitter WPC design TX-A6 which meets the requirements for compliance with the WPC 1.1 standard. The device operates with a 12Vdc adaptor, and it offers both internal and external half-bridge inverters enabling this single part to serve in either type of application. It controls the transferred power by changing the switching frequency of the half-bridge inverter from 115kHz to 205kHz as specified by the WPC specification for an "A6" transmitter. It contains logic circuits required to demodulate and decode WPC-compliant message packets sent by the mobile device to adjust the transferred power.
NOTICE: This device is restricted to high-volume and strategic applications only.
特性
- 5W Solution for Wireless Power Consortium (WPC)-Compliant Power Transmitter Design TX-A6
- Conforms to WPC Version 1.1 Specifications
- Low EMI To Meet Requirements of WPC 1.1 Certification
- 12V Operating Input Voltage
- Closed-Loop Power Transfer Control Between Base Station and Mobile Device
- Demodulates and Decodes WPC-Compliant Message Packets
- Integrated Step-down Switching Regulator
- Integrated RESET Function
- Proprietary Bidirectional Communication
- I²C Interface
- Open-Drain LED Indicator Outputs
- Over-Temperature Protection
- Security and Encryption up to 64 bits
- Foreign Object Detection (FOD)
- -40 °C to +85 °C Temperature Operation
- Packaged in a 6mm x 6mm 48-pin VFQFPN
