描述
The P9235A-RB is a highly integrated, magnetic induction, wireless power transmitter supporting up to 5W of total wireless system power. The P9235-RB offers a pre-programmed bootloader that must be used in conjunction with an external flash memory that contains control firmware. This architecture gives the user the flexibility to change the firmware in the external flash to meet application-specific requirements. Renesas also provides firmware to implement standard WPC coil configurations such as the A11a.
The P9235A-RB includes undervoltage lockout (UVLO), foreign object detection (FOD), and a thermal management circuit to safeguard the device under fault conditions. Together with the P9225-R receiver (RX), the P9235A-RB forms a complete 5W wireless power system solution.

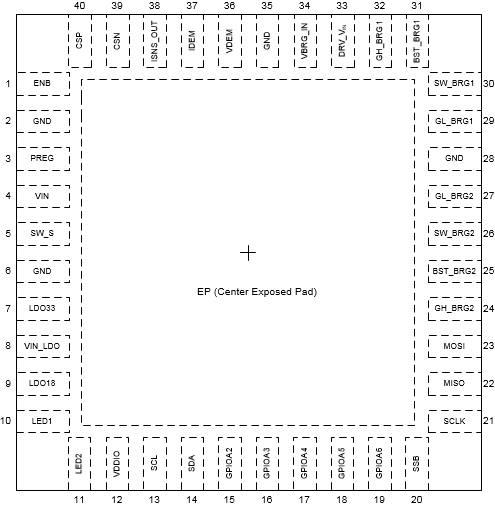

The P9235A-RB is available in a Pb-free, space-saving 5mm x 5mm 40-VFQFPN package. The product is rated over an operating temperature range of -40 °C to +85 °C.
特性
- Power transfer up to 5W
- Wide input voltage range: 4.25V to 21V
- WPC compatible
- Integrated step-down switching regulator
- Embedded 32-bit Arm® Cortex®-M0 processor
- Integrated drivers for external power FETs
- Simultaneous voltage and current demodulation scheme for robust communication
- Integrated current sense amplifier
- Low standby power
- Dedicated remote temperature sensing
- Two LED outputs that can indicate power transfer and fault conditions
- Foreign object detection (FOD)
- Active-Low Enable pin for electrical on/off
- Overcurrent and over-temperature protection
- Supports I²C interface
- -40 °C to +85 °C ambient operating temperature range
- 5mm x 5mm 40-VFQFPN RoHS-compliant package
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 426 KB | |
| EOL 通告 | PDF 768 KB | |
| 产品变更通告 | PDF 734 KB | |
| 产品变更通告 | PDF 728 KB | |
| 产品变更通告 | PDF 983 KB | |
| 产品变更通告 | PDF 1.15 MB | |
| 指南 | PDF 1.90 MB | |
| 白皮书 | PDF 627 KB | |
| 产品简述 | PDF 246 KB | |
9 items
|
||
设计和开发
软件与工具
开发板与套件
评估
P9235A-RB-EVK
不推荐用于新设计
Evaluation Board for P9235A-RB
The P9235A-RB-EVK Evaluation Board demonstrates the features of the P9235A-RB 5W Wireless Power Transmitter (TX). It is intended to evaluate the functionality and performance of the P9235A-RB when combined with a power receiver in a wireless charging system. The P9235A-RB-EVK offers the...
