描述

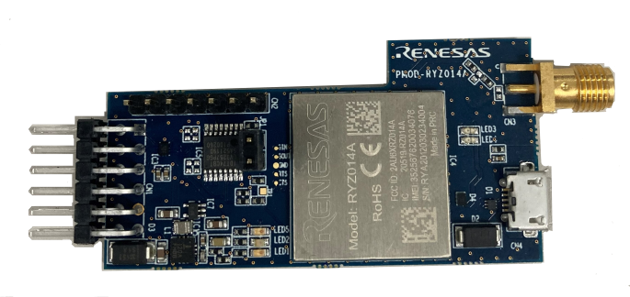

The PMOD Expansion Board for RYZ014A provides an entry point to evaluation and developing for the RYZ014A. The PMOD Expansion Board is easy connection to Renesas MCU kits via PMOD interface. And the PMOD Expansion Board can be controlled through UART interface.

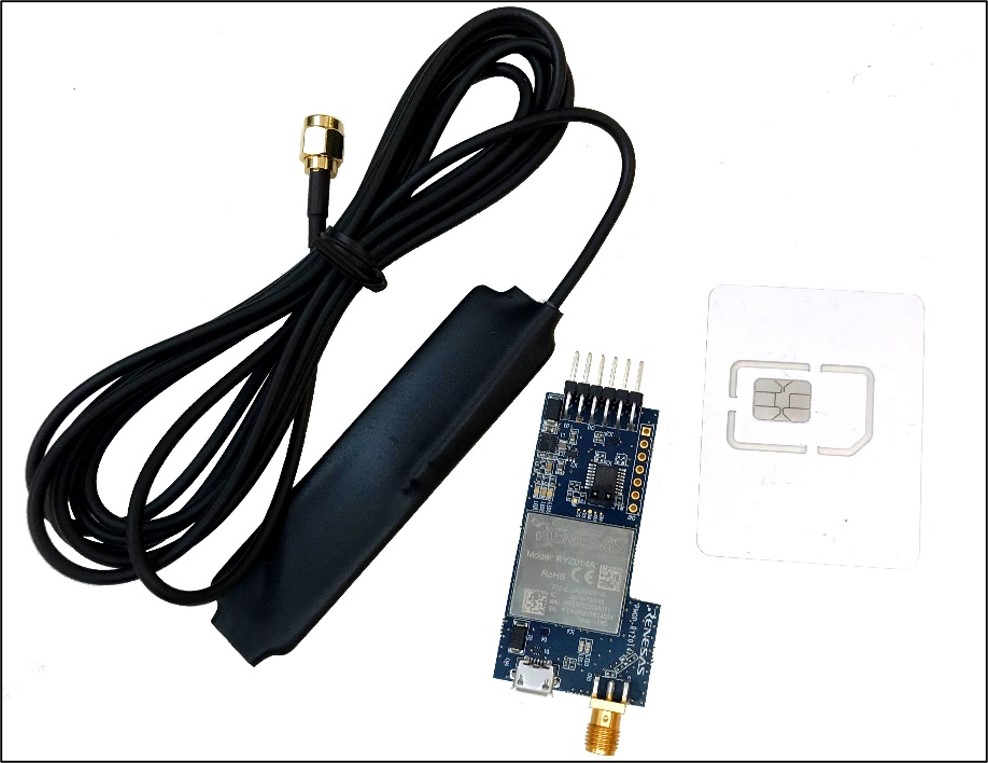

Product Contents
The following components are included.
- PMOD™ Expansion Board for RYZ014A
- LTE Antenna ( Taoglas: GSA.8830.A.201111) (SMA Male termination)
- MVNO SIM Card
Countries supported by the included SIM card
Austria, Belgium, Canada, Denmark, Finland, France, Germany, Japan, Liechtenstein, Luxembourg, Mexico, Netherlands, Norway, Poland, Portugal, Romania, Spain, Sweden, Switzerland, United Kingdom, United States
APN setting information by the included SIM card
| Item | Value |
|---|---|
| APN (Access point name) | iot.truphone.com |
| User ID (Access point login ID) | - (Null) |
| Password (Access point password) | - (Null) |
| SIM card PIN code | - (Null) |
| Authentication protocol type | PAP |
SIM card plans
First 90-days/50MB free
Certifications
The RYZ014A evaluation kit meets multiple regional regulatory requirements. Individual certificates are available below. Refer to the RYZ014A evaluation kit documentation for disclaimer, precautions and more details on the certifications.
Japan radio/terminal equipment based on type certification
Implemented RYZ014A has obtained certified construction type certification (certification number: 003-200328).
Note
Certifications are only for the products and jurisdictions indicated in the certification and should not be construed as a certification for any other jurisdiction or different product.
| Title | Date |
|---|---|
| RTKRYZ014AB00000BE - CE Declaration of Conformity (PDF) | Mar 8, 2022 |
| RTKRYZ014AB00000BE - UKCA Declaration of Conformity (PDF) | Mar 8, 2022 |
特性
- Wireless module
- LTE Cat-M1 Cellular IoT Module RYZ014A (RYZ014A000FZ00#HD0)
- PMOD™ interface
- Easy connection to Renesas MCU kits via PMOD (UART)
- USB interface
- Can be used for various interfaces
- Antenna interface
- Can be used for various external antennas
- Control software
- Supported by the RA MCU family’s Flexible Software Package (FSP)
- Driver for RX MCUs available
应用
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| RA 可扩展性强的配置软件包 (FSP) FSP 是一款增强型软件包，旨在为使用瑞萨电子 RA 系列 Arm 微控制器的嵌入式系统设计提供简单易用且可扩展性强的高质量软件。
|
Software Package | 瑞萨电子 |
| 快速连接平台 快速连接平台通过提供兼容的硬件和软件构建模块，实现快速原型设计。
|
Software and Hardware Development Tools | 瑞萨电子 |
2 items
|
||
