描述

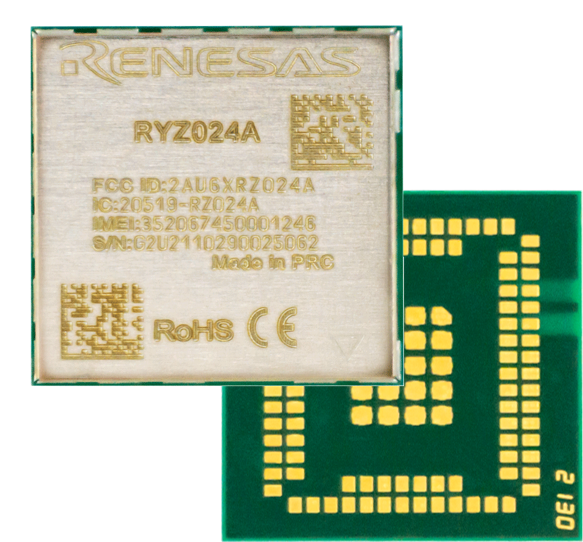

The Renesas RYZ024A module is an all-in-one LTE module supporting category M1 which is upgradable to NB1/NB2 with worldwide deployment and roaming capability.

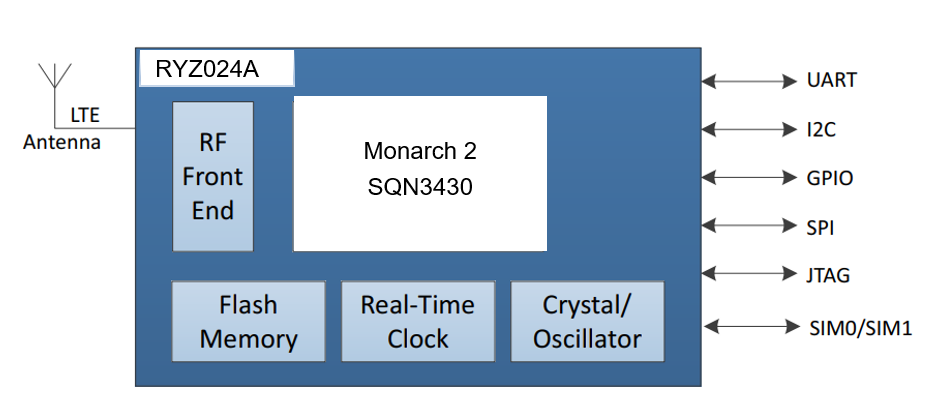

The module comprises an LTE Cat-M1/NB1/NB2 platform and all other elements necessary for a complete LTE modem system. These include an LTE-optimized transceiver, a single complete RF front-end to support LTE Cat-M1/NB bands worldwide, and key interfaces, all in a single compact LGA package. The RYZ024A module includes a carrier-proven LTE Cat-M1 protocol stack and a comprehensive software infrastructure.
特性
- Integrated cellular IoT module for LTE Cat-M1
- 3GPP Release 14 (upgradable to release 15)
- Proven LTE Cat-M1 software stack
- AT command interface
- LGA package with 120 pads
- 16.3 mm x 17 mm x 1.85 mm
- uSIM Interface
- Secure enclave & iUICC/ieUICC
- EAL5+ Secure Element (SE) capable
- Voltage RF compliance: 2.5 V to 5.5 V
- Functional voltage range: 2.2 V to 5.5 V
- RoHS-compliant, halogen-free
- Supports power class 3 (+23dBm)
产品对比
应用
- Metering (Electricity/Gas/Water, Automated Meter Reading)
- Smart Home (HVAC, Thermostats)
- Infrastructure (Charge Poles, Parking Systems)
- Industry (Pumps)
- Agriculture
- Wearables & Trackers
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| RA 可扩展性强的配置软件包 (FSP) FSP 是一款增强型软件包，旨在为使用瑞萨电子 RA 系列 Arm 微控制器的嵌入式系统设计提供简单易用且可扩展性强的高质量软件。
|
Software Package | 瑞萨电子 |
1 item
|
||
样例程序
模型
ECAD 模块
点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。
产品选项
当前筛选条件
视频和培训
RL78 Family LTE CAT-M1 MQTT Communication Solution
This video will show the steps to operate MQTT communication for send and receive (Publish/Subscribe) via MQTT Broker in an LTE CAT-M1 cellular communication with sample software in the application note.
The evaluation environment uses Renesas' RL78/G22 Fast Prototyping Board and PMOD Expansion Board for RYZ024A.
Video List
新闻和博客
| Without Wireless, There Is No IoT | 博客 | 2021年5月26日 |
Certifications
The RYZ024A meets the following certifications/standards. Refer to the RYZ024A documentation for disclaimer, precautions and more details on the certifications.
Radio Certifications
- Cat-M1: PTCRB, GCF, FCC, ISED, CE, UKCA, MIC(Japan), ACMA
- NB-IoT (planned): FCC, ISED, CE, UKCA
Carrier Certifications
- Cat-M1: Verizon, AT&T, Docomo, KDDI
- NB-IoT (planned): Vodafone
NB-IoT Firmware Notification
RYZ024A currently supports the LTE category M1 with the above certifications. Please register with your company email address to be notified about the availability of the latest firmware for the RYZ024A supporting dual mode Cat-M1 & NB-IOT.
