This solution is for digital control of photovoltaic power conditioners, UPS and industrial 3-phase DC/AC inverter power supplies. You can increase the system efficiency and reduce the size and weight of the filter reactors that cut harmonic components by applying a low-loss SiC power element and 3-level (T-type) circuit topology to the inverter circuit.

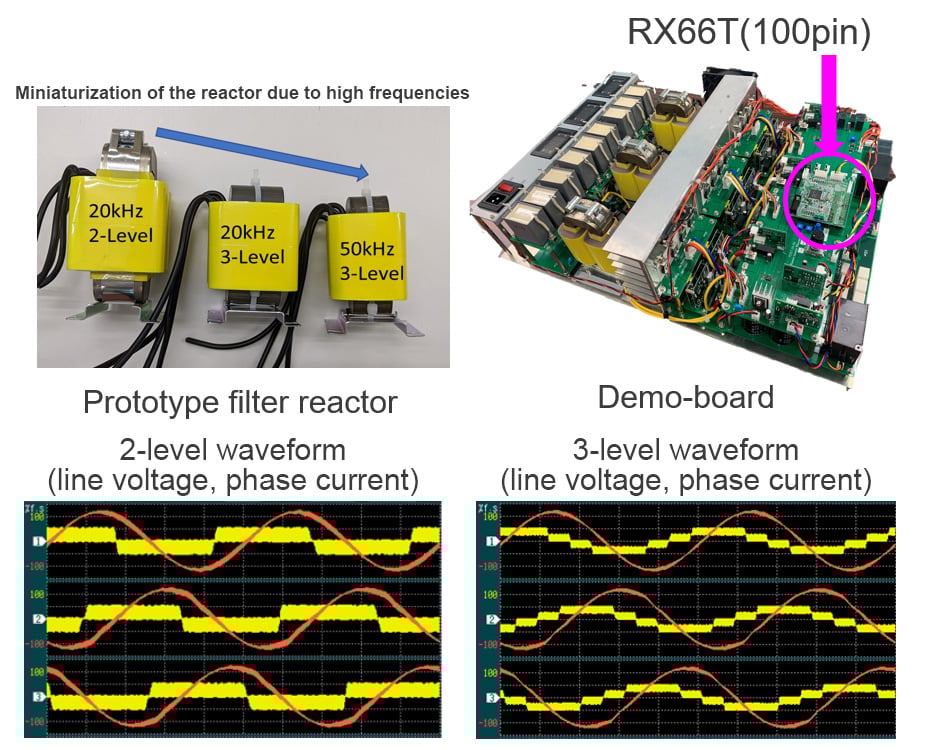

3-level inverter power supply unit
图像
| Items | Specifications |
|---|---|
| Output power | 10kW |
| Output voltage | 3Φ、400Vac |
| Output frequency | 50 or 60Hz |
| Input voltage range | 750Vdc、600～850V |
| Inverter switching frequency | 20~50kHz |
| Power factor | 0.8 |
| Cooling Method | Natural air / Forced air |
| PWM mode | 2-Level / 3-Level |
图像
Primary applications: DC/AC power converters
- Power conditioners for solar power generation
- UPS uninterruptible power supplies
- Industrial power supplies
3-level inverter application effects

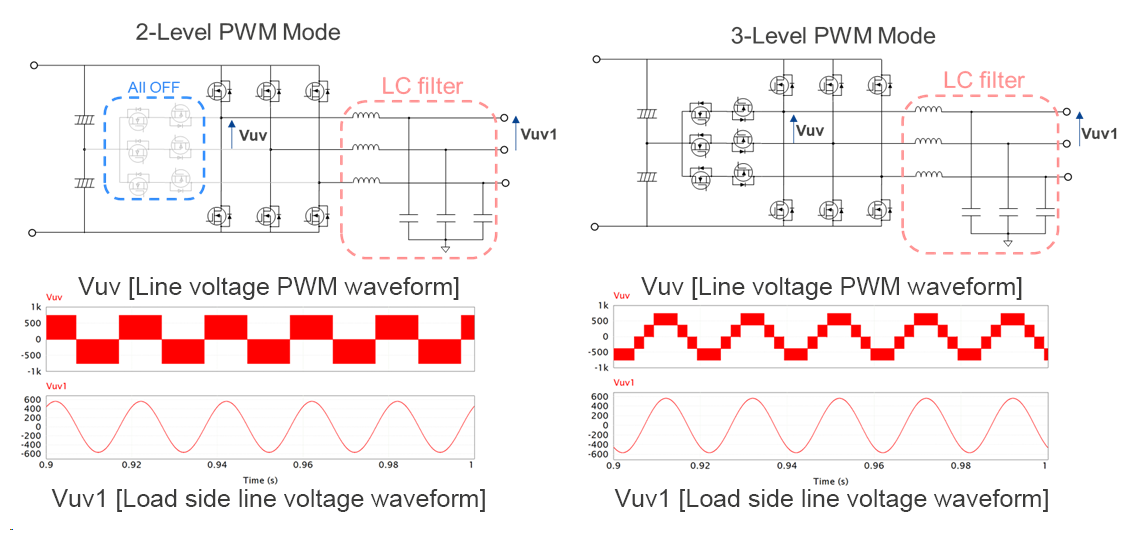

The PWM output voltage waveform of the 3-level inverter more closely approaches a sine wave.
图像

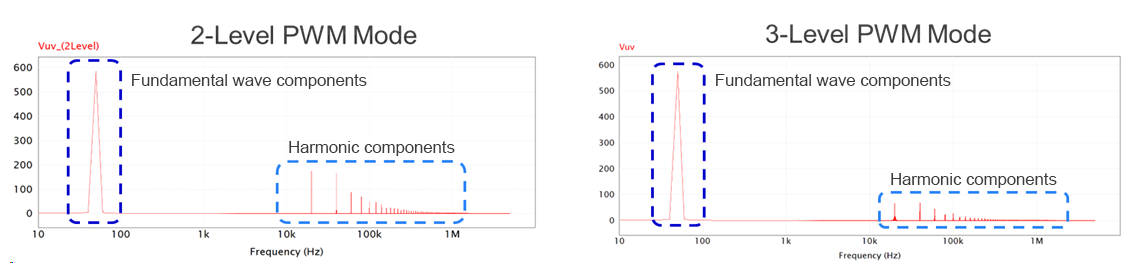

Comparison of the high-frequency components of the PWM output voltage
There are fewer harmonic components in the 3-level inverter output PWM voltage, resulting in smaller, lighter and lower cost filter reactors to cut the high harmonic components
图像
40% reduction in reactor volume and weight for 3-Level (50 kHz) compared to 2-Level (20 kHz)
图像
Reduction of switching losses

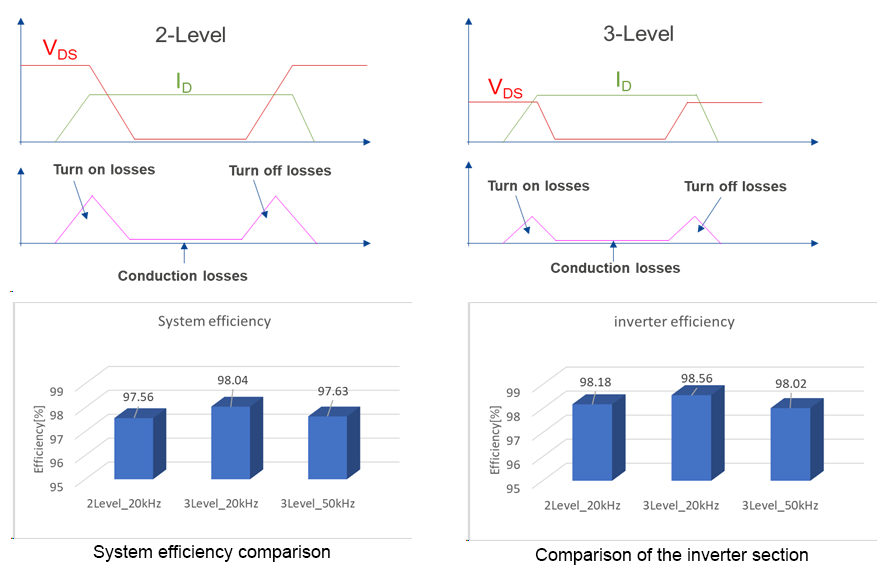

The switching operation of the power components is performed at half the DC power supply voltage, effectively reducing switching losses and increasing efficiency
图像

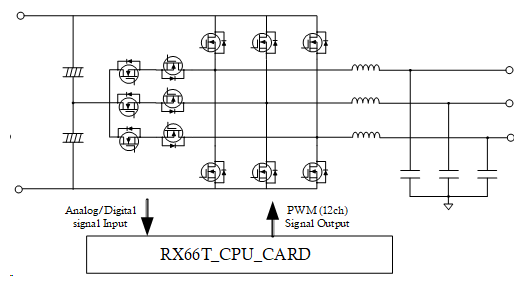

Renesas 3-level DC/AC 3-phase inverter control solution

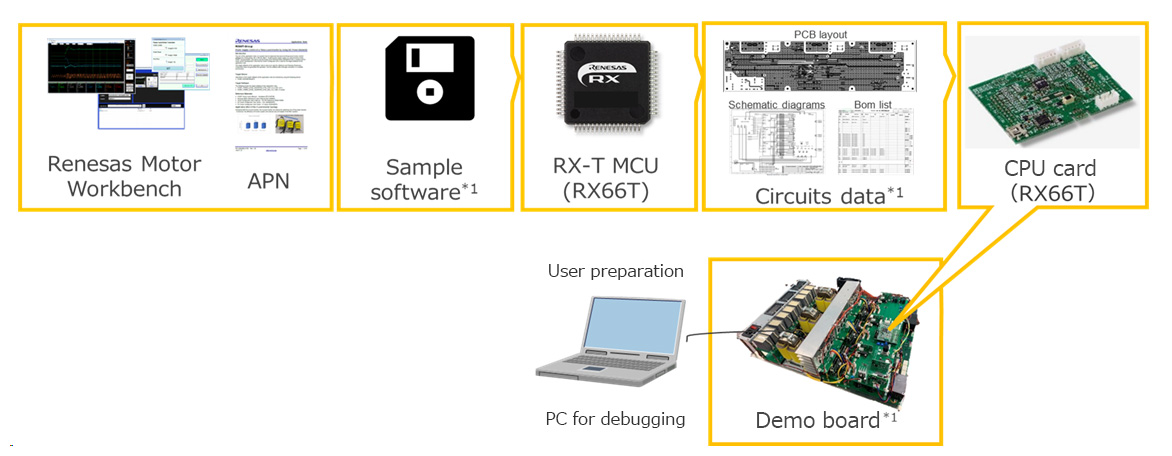

Application note (APN), sample software and development support tools for DC/AC 3-phase inverter power converter control are provided.
图像
*1.Please contact us for sample software, circuit data and demo boards.
Offer
- Application note
RX66T-Group Power Supply Control of a Three-Level Inverter by Using SiC Power Elements Rev.1.00 (PDF | English, 日本語) - CPU card
RX66T PU card
特性
- Both 2-level and 3-level operation modes are supported.
- Can support switching frequencies from 20kHz to 50kHz, which allows for increased power density and smaller and lighter filter reactors (magnetic components).
- The 6 channels of GPT timers in the RX66T can be operated synchronously to simultaneously output the 12 PWM gate signals required for a 3-level inverter.
- Application notes, sample programs, development tools, and circuit data are available, so you can start development immediately.
