Dual General-Purpose Micropower, RRIO Op Amp in MSOP Packages Evaluation Board
The ISL28213MSOPEVAL2Z evaluation board is a design platform containing all the circuitry needed to characterize critical performance parameters of the ISL28213...
概览
描述
The ISL28213 is a dual channel general purpose micropower, rail-to-rail input and output (RRIO) operational amplifier with a supply voltage range of 1.8V to 5.5V. Key features are a low supply current of 130µA maximum per channel at room temperature, a low bias current and a wide input voltage range, which enables the ISL28213 device to be an excellent general purpose operational amplifier for a wide range of applications. The ISL28213 is available in the MSOP8, SOIC8 and SOT23-8 packages. And, this device operates across the extended temperature range of -40 °C to +125 °C.
特性
- Low current consumption: 130µA
- Wide supply range: 1.8V to 5.5V
- Gain bandwidth product: 2MHz
- Input bias current: 20pA, Max.
- Operating temperature range: -40 °C to +125 °C
- Packages: MSOP8, SOIC8, SOT23-8
产品对比
应用
- Power supply control/regulation
- Process control
- Signal gain/buffers
- Active filters

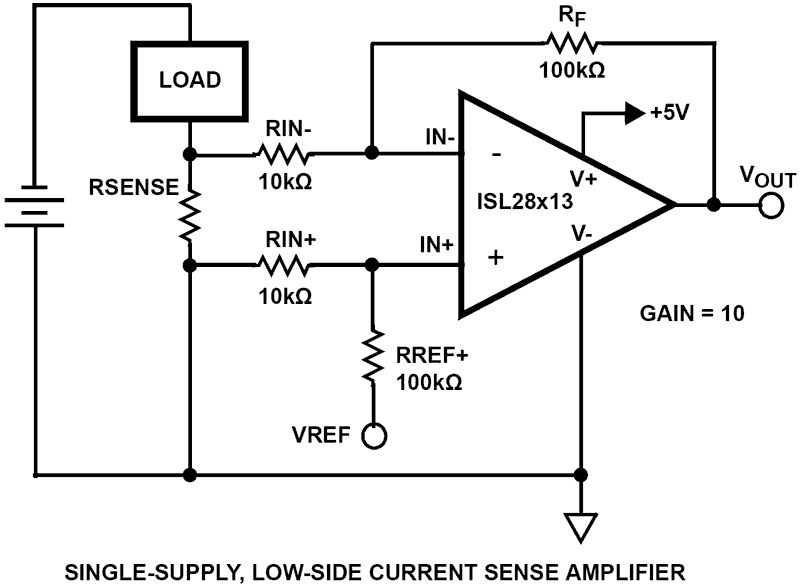

- Current shunt sensing
- Transimpedance amps
