RZ/T 系列逆变器板
RZ/T 系列逆变器板（P/N：RTK0EM0000B15010BJ）是一款逆变器板，可让用户使用 BLDC 电机轻松评估电机控制能力。 本产品支持绝对式编码器和增量式编码器。 与兼容的 CPU 板结合使用，便可立即开始评估电机控制。
概览
简介

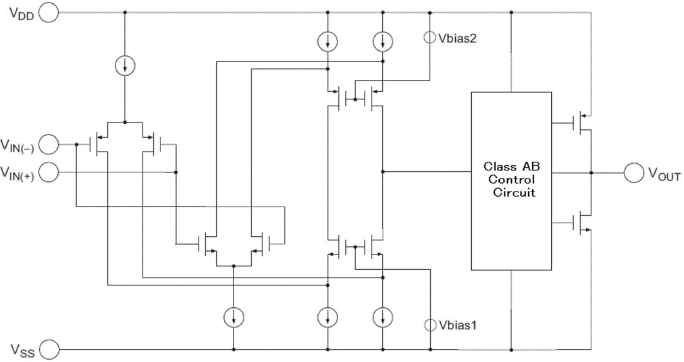

The READ2304G is an input and output full-range dual CMOS operational amplifier that realizes high drivability and high slew rate. This IC can be used in minimum operating supply voltages from 2.5V and in a wide ambient temperature range from -40 °C to +105 °C.

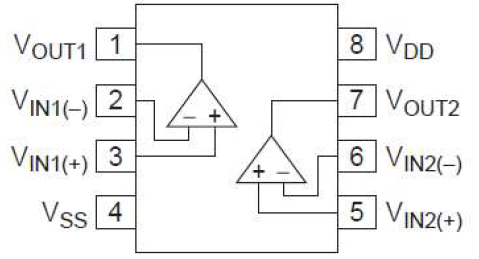

The READ2304G is available in ultra-small 8-pin TSSOP and MSOP packages.
特性
- Low voltage single supply operation: VDD = 2.5V to 5.5V
- Low input offset voltage: VIO ≤ ±6.0mV
- Low input bias current: IB ≤ (1pA)
- Wide output voltage range: VOUT : VSS+0.1V to VDD-0.1V (at Io = 5mA)
- Supply current (per channel) : IDD = 0.75mA typical
- High slew rate: SR = 8V/μs typical
产品对比
应用
文档
= 相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 1.07 MB | |
| 手册 | PDF 5.41 MB 日文 | |
| 产品变更通告 | PDF 782 KB 日文 | |
| Product Reliability Report | PDF 135 KB | |
| Product Reliability Report | PDF 133 KB | |
| 产品变更通告 | PDF 460 KB 日文 | |
6 items
|
||
设计和开发
开发板与套件
RZ/T 系列逆变器板套件
RZ/T 系列逆变器板套件（P/N：RTK0EM0000S05010BJ）是一款逆变器板，可让用户使用 BLDC 电机轻松评估电机控制能力。 本产品支持绝对式编码器和增量式编码器。 与兼容的 CPU 板结合使用，便可立即开始评估电机控制。
支持的 CPU 板：RZ/T2H 评估板套件（P/N：RTK9RZT2H0S00000BJ）
模型
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
| TSSOP | Embossed Tape | 1 | 1.062 | ||
| TSSOP | 1 | 0.5908 | 获取样片, |
