概览
描述

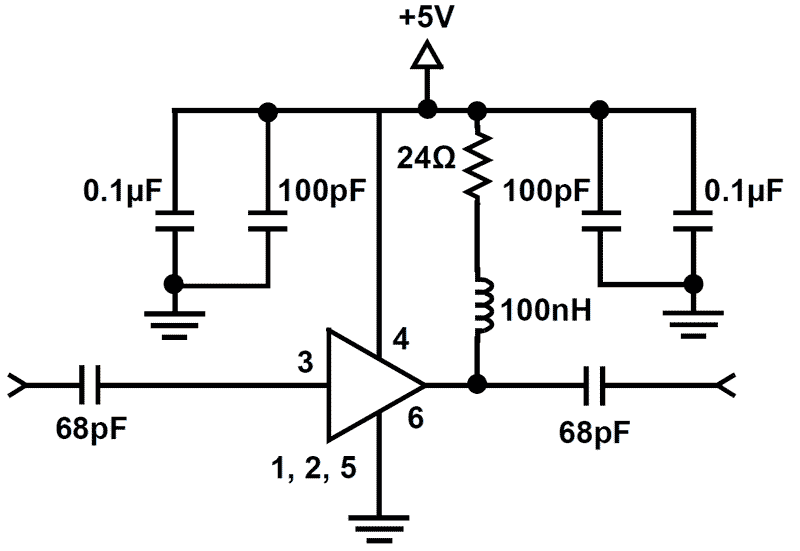

The ISL55015 is a high-performance gain block featuring a Darlington configuration using high fT transistors and excellent thermal performance. They are an ideal choice for DVB-S LNB cable receiver applications. Other members of the family include the ISL55012 and ISL55015 match a 75Ω source to a 50Ω load and the ISL55014 matches a 50Ω source to a 50Ω load.
特性
- Input impedance of 75Ω
- Output impedance of 50Ω
- Gain of 13.5dB at 1GHz
- Noise figure of 4.8dB at 2GHz
- OIP3 of 31dBm at 1GHz
- Low input and output return losses
- Pb-free (RoHS compliant)
产品对比
应用
- LNB and LNB-T (HDTV) amplifiers
- IF gain blocks for satellite and terrestrial STBs
- PA driver amplifiers
- Wireless data, satellites
- Bluetooth/Wi-Fi
- Satellite locator and signal strength meters
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 514 KB | |
| EOL 通告 | PDF 319 KB | |
| 产品变更通告 | PDF 334 KB | |
| 产品变更通告 |
PCN12084A - Manufacturing Site Change for the Listed Intersil Products - Carsem (CAS) Ipoh, Malaysia
PDF
141 KB
|
|
| 产品变更通告 | PDF 529 KB | |
| 产品变更通告 | PDF 135 KB | |
| 产品变更通告 | PDF 49 KB | |
| 应用笔记 | PDF 357 KB | |
8 items
|
||
设计和开发
模型
ECAD 模块
点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。
