概览
描述
The 9ZXL1231 12-output low-power HCSL buffer meets the demanding requirements of the Intel DB1200ZL specification, including the critical low-drift requirements of Intel CPUs.
特性
- Low-power push-pull HCSL outputs; eliminate 24 resistors, save 41mm² of area
- Pin-compatible to 9ZX21201 provides easy path to >50% power savings

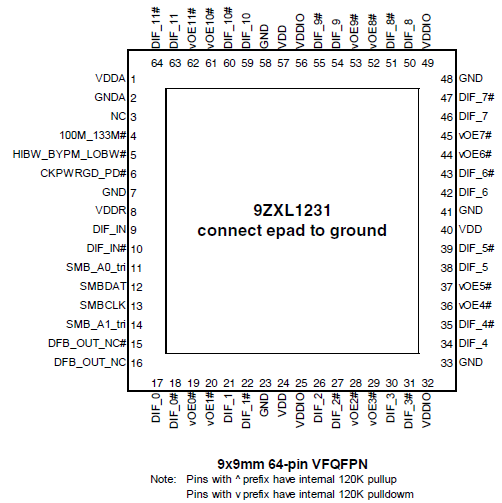

- Space-saving 64-pin VFQFPN package
- Fixed feedback path for 0ps input-to-output delay
- 9 Selectable SMBus Addresses
- 12 OE# pins provide hardware control of each output

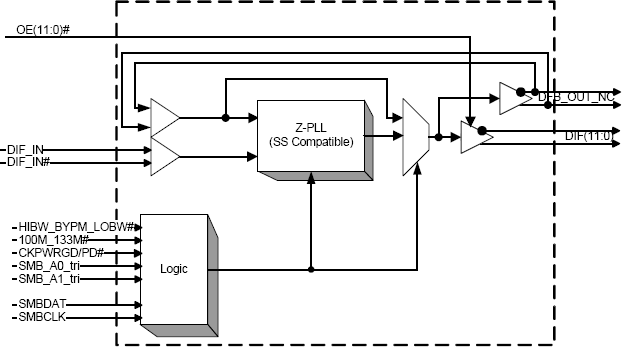

- PLL or bypass mode; PLL can de-jitter incoming clock
- Selectable PLL bandwidth minimizes jitter peaking in downstream PLLs
- Spread spectrum compatible
- -40 °C to +85 °C device available; supports demanding environmental applications
