74FCT38072S

有效

Low Skew 1 to 2 Clock Buffer

立即订购
74FCT38072S Datasheet

概览

The 74FCT38072S is a low skew, single input to two output, LVCMOS clock buffer that offers a best-in-class additive phase jitter of sub 50fs.

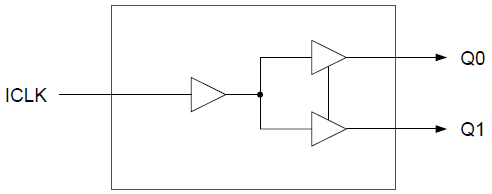

74FCT38072S Block Diagram
74FCT38072S Pinout - DFN

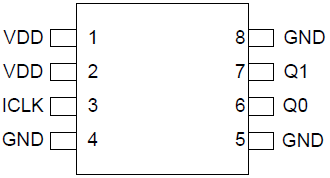

74FCT38072S Pinout - SOIC
74FCT38072S Block Diagram
74FCT38072S Pinout - DFN
74FCT38072S Pinout - SOIC
  • Low additive phase jitter RMS: 50fs
  • Extremely low skew outputs (50ps)
  • Low-cost clock buffer
  • Packaged in an 8-pin SOIC and 8-pin DFN, Pb-free
  • Input/Output clock frequency up to 200MHz
  • Low-power CMOS technology
  • Operating voltages of 1.8V to 3.3V
  • Extended temperature range: -40 °C to +105 °C)
