概览
描述

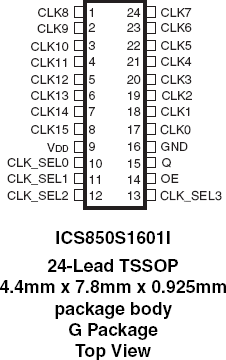

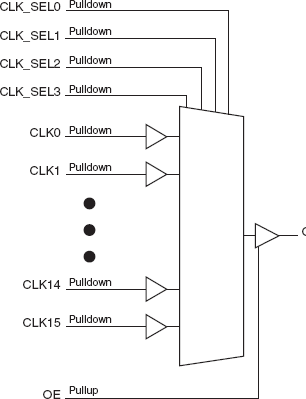

The 850S1061I is a low skew16:1 Single-ended Clock Multiplexer and is a member of the HiPerClockS™ family of High Performance Clock Solutions from IDT. The 850S1061I has 16 selectable single-ended clock inputs and 1 single-ended clock output. The device operates up to 250MHz and is packaged in a 24 TSSOP package.
特性
- 16:1 single-ended multiplexer
- Nominal output impedance: 20? (VDD = 3.3V)
- Maximum output frequency: 250MHz
- Propagation delay: 2.7ns (maximum)
- Full 3.3V or 2.5V supply modes
- -40°C to 85°C ambient operating temperature
- Available in lead-free (RoHS 6) packages
产品对比
应用
设计和开发
模型
ECAD 模块
点击产品选项表中的 CAD 模型链接，查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用，可直接在 SamacSys 请求该符号或模型。
