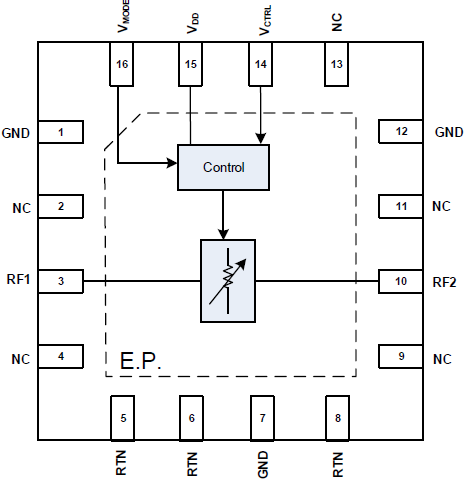

The F2255 is a low insertion loss Voltage Variable RF Attenuator (VVA) that covers a broad frequency range from 1MHz to 3000MHz. In addition to providing low insertion loss, the F2255 provides high linearity and low return loss performance over entire frequency, voltage control and attenuation ranges. The device uses a single positive supply voltage of 3.15V to 5.25V. Other features include the VMODE pin allowing either positive or negative voltage control slope vs. attenuation and multi-directional operation meaning the RF input can be applied to either RF1 or RF2 pins. This device has a wide control voltage range using either a positive or negative control voltage slope.
特性
- Low insertion loss: 1.1dB at 500MHz
- Typical/Min IIP3: 60dBm/44dBm
- Typical/Min IIP2: 98dBm/74dBm
- 34.6dB attenuation range
- Bidirectional RF ports
- +36dBm input P1 dB compression

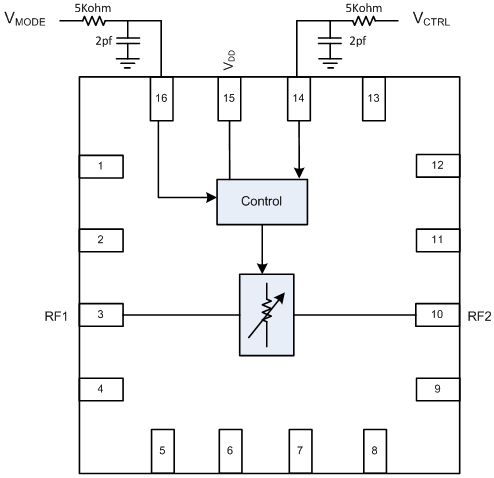

- VMODE pin allows either a positive or negative attenuation control response
- Linear-in-dB attenuation characteristic
- Supply voltage: 3.15V to 5.25V
- VCTRL range: 0V to 3.60V (when VDD = 3.9V to 5.25V, 0 to (VDD - 0.3V) (when VDD = 3.15V to 3.90V)
- +105 °C max operating temperature
- 3mm x 3mm, 16-pin TQFN package
产品对比
应用
文档
相关文档
请登录后开启订阅
|
|
|
|
|---|---|---|
| 类型 | 文档标题 | 日期 |
| 数据手册 | PDF 2.03 MB | |
| 产品变更通告 | PDF 5.71 MB | |
| 产品变更通告 | PDF 5.61 MB | |
| 产品变更通告 | PDF 36 KB | |
| 产品变更通告 | PDF 88 KB | |
| 产品变更通告 | PDF 45 KB | |
| 产品变更通告 | PDF 45 KB | |
7 items
|
||
设计和开发
开发板与套件
评估
F2255EVBI
有效
Evaluation Board for F2255 Voltage Variable RF Attenuator
The F2255EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F2255 Voltage Variable Attenuator. Attenuation slope may be set to either positive or negative attenuation slope using the on-board jumper pins.
