Overview
The GR-KAEDE board using the RX64M MCU enables image processing via dedicated bus and on-board SDRAM. GR-KAEDE offers an Arduino compatible board footprint and libraries allowing designers to get started easily.
GR-KAEDE Key Features

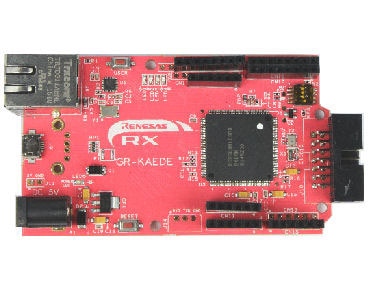

GR-KAEDE Board
- Renesas 32-bit RX64M Group MCU (R5F564MLCDFB) is on-board
- Arduino UNO compatible pin-headers ready for its shields

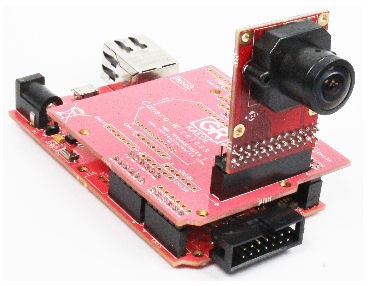

GR-KAEDE with Camera Option
- The camera board option enables image processing
- GR-KAEDE can detect humans and things (up to 10fps)

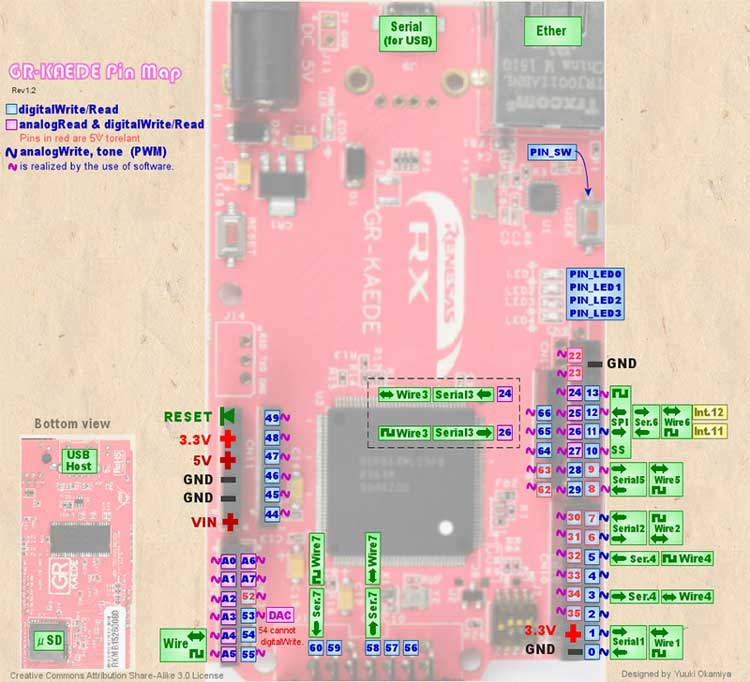

GR-KAEDE Pin Map
Detailed Specification
Microcontroller
RX64M (R5F564MLCDFB 100-pin QFP)
ROM/RAM
4MB/552KB (Note)
Data Flash
64KB
Frequency
96MHz (using external 12MHz XO)
Sub Clock
32.768kHz
Operating Voltage
3.3V
Board Function
USB host/peripheral (exclusion), Ethernet, Micro SD jacket, JTAG I/F, DC power jack (5V), user switch, reset switch, Arduino Shield I/F, camera board I/F, user LED, programmable like USB mass storage.
Note: 1920KB is available when using USB mass storage programming.
Resources
Project File for e2 studio
Project file for sketching in Eclipse-based development environment e2 studio. For downloading and installing e2 studio, please refer to the e2 studio product page.
- Click to download. Import the archive file (zip) as an existing workspace from the menu 'File' -> 'Import' in e2 studio.
GR-KAEDE Sketch v121-e2v7 Project File (ZIP)
Note: This is a project exported in e2 studio Version 7.2.
