LTE Cat-M1 Cellular IoT Module

RYZ014A LTE Category M1 Module Datasheet

概览

The Renesas RYZ014A module is an all-in-one, single-mode LTE category M1 module with worldwide deployment and roaming capability. The module comprises an LTE Cat-M1 platform and all other elements necessary for a complete LTE Cat-M1 modem system. These include an LTE-optimized transceiver, a single complete RF front-end to support LTE Cat-M1 bands worldwide, and key interfaces, all in a single compact LGA package. The RYZ014A module also includes a carrier-proven LTE Cat-M1 protocol stack and comprehensive software.

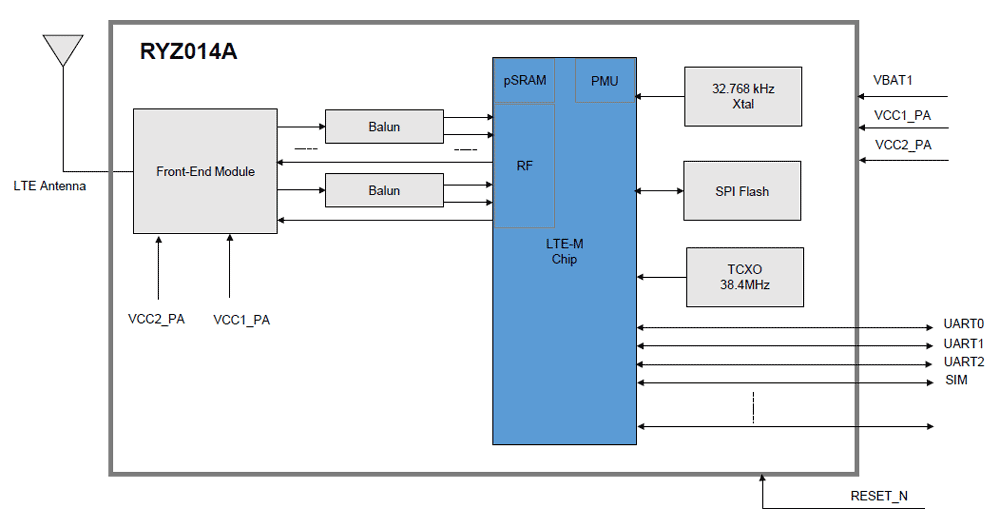

RYZ014A Block Diagram

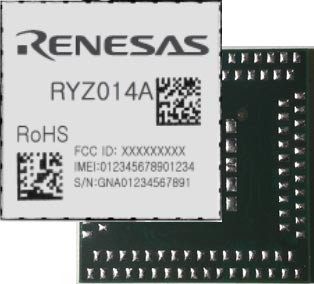

RYZ014A Module
RYZ014A Block Diagram
RYZ014A Module
  • Integrated cellular IoT module for LTE Cat-M1
  • 3GPP Release 13
  • Field-proven LTE Cat-M1 software stack
  • AT command interface
  • 20.25 x 21.35mm LGA package with 108 pads
  • uSIM Interface
  • Voltage 3.1V to 4.5V
  • RoHS-compliant, halogen-free
  • High output power supporting both power class options 20 and 23dBm
  • Metering (Electricity/Gas/Water, Automated Meter Reading)
  • Smart Home (HVAC, Thermostats)
  • Infrastructure (Charge Poles, Parking Systems)
  • Industry (Pumps)
  • Agriculture
  • Wearables & Trackers



Certifications

The RYZ014A meets multiple regional regulatory requirements. Individual certificates are available below. Refer to the RYZ014A documentation for disclaimer, precautions and more details on the certifications.

Japan radio/terminal equipment based on type certification
Implemented RYZ014A has obtained certified construction type certification (certification number: 003-200328).

Note
Certifications are only for the products and jurisdictions indicated in the certification and should not be construed as a certification for any other jurisdiction or different product.

TitleFormatDate
RYZ014A - FCC CertificatePDFDec 03, 20220
RYZ014A - ISED CertificatePDFDec 16, 20220
RYZ014A - CE CertificatePDFFeb 26, 2021
RYZ014A/RYZ014AAA - UKCA Declaration of ConformityPDFDec 8, 2021
