概览
描述

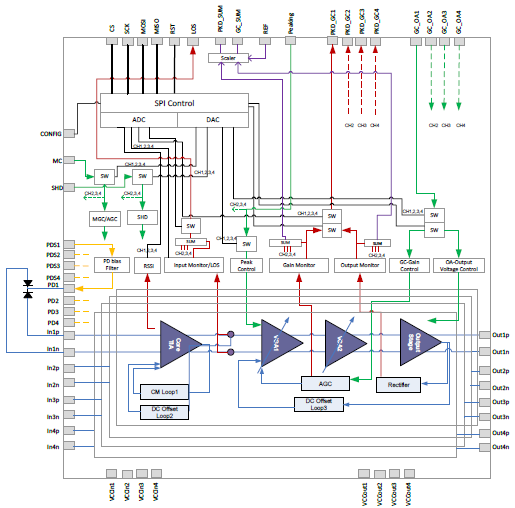

The GX36420 is a 64Gbps linear quad TIA chip that integrates four lanes of TIAs for XI, XQ, YI, and YQ channels, as well as digital interface circuitry for DC controls on a single die for 400G/600G coherent applications. The TIA electrical characteristics, functions, and physical dimensions are designed for small-form factor integrated optical module such as CFP2 and CFP4.
特性
- Adjustable frequency range from 32Gb/s up to 64Gb/s
- Differential gain: 5,000Ω
- Low power consumption
- Linear gain over 30dB of dynamic range
- Internal AGC
- Output voltage control
- Peak detection
- RSSI and Input Current Monitor
- Shutdown mode
产品对比
应用
设计和开发
模型
ECAD 模块
点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。
产品选项
当前筛选条件
