特性
- 21dBm output power capability
- Drives up to 750mA from a +12V supply
- 20VP-P differential output drive into 21Ω
- Very low noise floor
- -75dBc typical driver output distortion at 4MHz
- -80dBc typical driver output distortion at 10MHz
- -79dBc typical driver output distortion at 17MHz
- Low quiescent current of 6mA per amplifier
- Supply range
- ISL1571IUEZ: 4.5V to 12V
- ISL1571IRZ ±2.25V to ±6V: 4.5V to 12V
- 250MHz bandwidth
- Thermal shutdown
- Pb-free (RoHS compliant)
描述

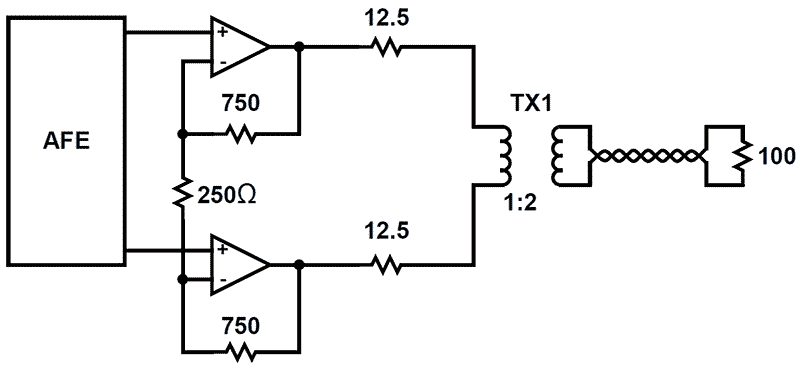

The ISL1571 is a dual operational amplifier designed for PLC line driving in Orthogonal Frequency-Division Multiplexing (OFDM) and Spread Spectrum Communication (SSC) based solutions. This device features a high drive capability of 750mA while consuming only 6mA of supply current per amplifier and operating from a single 4. 5V to 12V supply. The driver achieves a typical distortion of -80dBc, at 150kHz into a 25Ω load. The ISL1571 is available in the thermally-enhanced 16 Ld QFN or 10 Ld HMSOP package and is specified for operation across the full -40°C to +85°C temperature range. The ISL1571 has control pins BIAS0 and BIAS1 for controlling the bias and enable/disable of the outputs. These controls allow for lowering the power to fit the performance/power ratio for the application. The ISL1571 is ideal for line driving applications following the Homeplug 1. 0, Homeplug AV and UPA standard based PLC.
产品参数
| 属性 | 值 |
|---|---|
| Bandwidth (MHz) | 250 |
| Channels (#) | 1 |
| Slew Rate (V/µs) | 1200 |
| VS (Min) (V) | 4.5 |
| VS (Max) (V) | 13.2 |
| IS per Amp (mA) | 15 |
| Noise VN (nV/√Hz) | 6 |
| IBIAS (nA) | 7000 |
| Offset Voltage (Max) (mV) | 7.5 |
| IOUT (A) | 1 |
| IOUT @ RL | 0.235A @ 20Ω |
| VOUT (V) | 10 |
| Rail-to-Rail Input | No |
| Rail-to-Rail Output | No |
| PSRR (db) | 95 |
| Thermal Shutdown | Yes |
| THD (dB) | -75 |
| Enable | Yes |
| Qualification Level | Standard |
应用
- Homeplug 10
- Homeplug AV
- UPA digital home standard
