CPX3 Evaluation Kit for DC under 48V (J80D1 with RX651+Audio circuit)
The Renesas CPX3 Evaluation Kit J80D1 is a power line communication (PLC) evaluation kit for direct current (DC) power lines that can be used to carry out software...
概览
描述
For use in Japan, please use RTK0EE0003D02002BJ (J70D2).

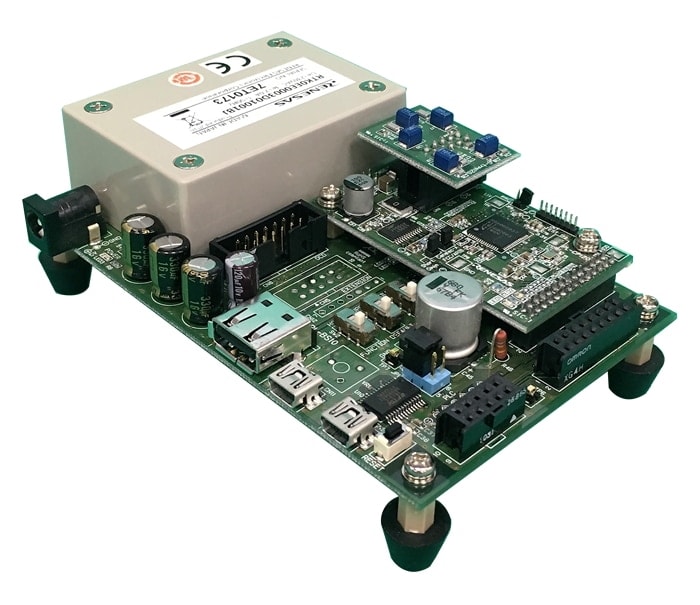

The CPX3 Evaluation Kit J70D1 is a tool to evaluate the hardware and the software of Renesas' PLC modem LSI R9A06G037 (CPX3). This kit supports CENELEC-A, FCC and ARIB frequency bands. This chapter introduces the configuration and setup for the CPX3 Evaluation Kit J70D1.
特性
- Control MCU: RX631 (R5F5631EDDFP)
- PLC Modem Device: R9A06G037
- For detailed information on microcomputer, refer to RX631 page.
- The J70D1 CPX3 Evaluation Kit has a circuit configuration which includes the PLC modem device, the control MCU and the AFE required for power line communication.
- The evaluation board is composed of the following three boards. The main board is composed of 1) and 2).
- PLC board: PLC modem device (CPX3:R9A06G037) and AFE device (NJM45001)
- BASE board: Power circuitry and control MCU (RX631)
- Filter board: Receive filter for CENELEC-A, FCC and ARIB frequency bands
- Board Dimensions: 120×76×44 mm
- PLC specification: CENELEC-A:35kHz-90kHz
- FCC: 150kHz-490kHz
- ARIB: 150kHz-450kHz
- Input voltage for Power line: AC100-230V
- DC power supply voltage: 5.0V/3.0A
Note:
The AC adapter is not included. Please prepare an AC adapter that complies with the laws and regulations of the environment you use. Following AC adapters have been verified to not degrade communication performance.
Verified AC adapters
| Model name | UN318-0530 PL03B | SMI18-5-V-P5 | GST18B05-P1J | ||
|---|---|---|---|---|---|
| Vender | UNIFIVE | CUI Inc. | MEAN WELL | ||
| DC Volt. | 5V | 5V | 5V | ||
| Type | Wall Mount | Wall Mount | Desktop | ||
| Supported Standards * Please check the latest information by vender. | PSE | (JPN) | check | check | check |
| CE | (EU) | check | check | check | |
| UKCA | (GBR) | check | check | ||
| UL | (USA) | check | check | check | |
| FCC | (USA) | check | check | check | |
| DoE-VI | (USA) | check | check | check | |
| CCC | (CHN) | check | check | check | |
| BIS | (IND) | check | |||
| CPS | (SGP) | ||||
| BSMI | (TWN) | check | |||
| KC | (KOR) | check | check | ||
| RCM | (AUS) | check | check | ||
| CB | check | check | |||
| Remark | A type pin | Multi-Blade (A,B,C,E,N) | without AC power cable | ||
