概览

描述

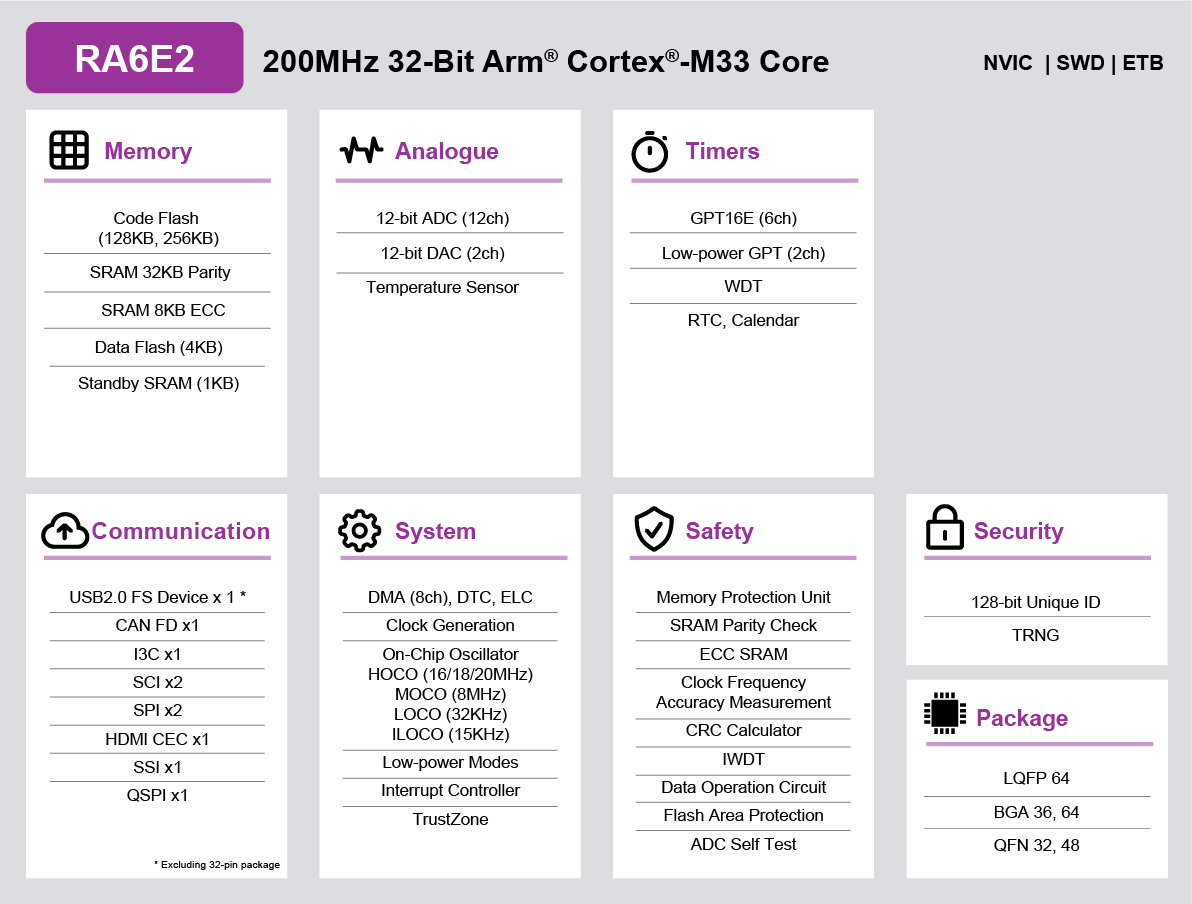

RA6E2组是RA6系列中最新的入门级微控制器,基于带有TrustZone®的200MHz Arm® Cortex®-M33内核。

RA6E2 MCU作为入门级微控制器,在追求成本优化的同时提供了最佳的性能。与RA4E2组的引脚和外设兼容,使其成为要求更高性能、小尺寸和低引脚数的应用的理想选择。

特性

  • 200MHz的Arm Cortex-M33,具有TrustZone功能
  • 128KB - 256KB的闪存和40KB的SRAM
  • 4KB数据闪存,类似EEPROM数据存储功能
  • 1KB待机SRAM
  • 可从32个引脚扩展到64个引脚的封装
  • USB 2.0全速
  • CAN FD,I3C
  • HDMI CEC,SSI
  • Quad SPI
  • 12位A/D转换器
  • 12位D/A转换器
  • 通用PWM定时器

产品对比

应用

  • 一般用途
  • 传感器应用(医疗,工业,可穿戴)
  • 通信/网络模块
  • 家用电器
  • 指纹识别模块
  • 家庭娱乐(语音命令/识别)

文档

设计和开发

软件与工具

软件与工具

Software title
Software type
公司
RA 可扩展性强的配置软件包 (FSP)
FSP 是一款增强型软件包,旨在为使用瑞萨电子 RA 系列 Arm 微控制器的嵌入式系统设计提供简单易用且可扩展性强的高质量软件。
Software Package 瑞萨电子
E2 emulator [RTE0T00020KCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
Emulator 瑞萨电子
E2 emulator Lite [RTE0T0002LKCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
Emulator 瑞萨电子
Renesas Flash Programmer (Programming GUI)
闪存编程软件【支持 MCU/MPU 和设备:RA、RE、RX、RL78、RH850、RISC-V MCU Renesas Synergy、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、Renesas USB Power Delivery 系列、电机驱动器/执行器驱动器 IC、V850、78K0R、78K0】
Programmer (Unit/SW) 瑞萨电子
PG-FP6
Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
Programmer (Unit/SW) 瑞萨电子
RA Smart Configurator
The Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain.
Solution Toolkit 瑞萨电子
e² studio - RA 产品家族信息
基于 Eclipse 的瑞萨集成开发环境(IDE)。
IDE and Coding Tool 瑞萨电子
EZ-CUBE3
EZ-CUBE3(CYRCNEZCUBE03)是具有Flash存储器编程功能的片上调试仿真器,可以用于调试MCU程序或将程序烧写到MCU的内置Flash中。
Emulator 瑞萨电子
SEGGER emWin GUI Library for Renesas RA Products
SEGGER's emWin graphics library is a ready-to-use solution that provides a versatile and professional GUI platform for creating interactive and high-quality graphical user interfaces on any type of display for the Renesas RA family.
Imaging SEGGER
SEGGER J-Link and J-Trace PRO
The J-Link debug probes offer full support for RZ Family MPUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.
Emulator SEGGER
IAR Embedded Workbench for Arm
IAR Embedded Workbench for Arm (EWARM) provides a complete development environment for Arm - including RA Family MCUs - generating fast, compact code and enabling you to take full control of your code.
IDE and Coding Tool IAR Systems
Arm® Keil® MDK
Arm® Keil® MDK is a comprehensive software development solution for Arm-based microcontrollers, including RA Family MCUs, containing all the components that you need to create, build, and debug embedded applications.
IDE and Coding Tool Arm® Keil® MDK Arm®
Reality AI Utilities
瑞萨电子 e² studio 插件模块
Solution Toolkit 瑞萨电子
13 items

样例程序

样例程序

筛选
类型 文档标题 日期 日期
示例代码
[Software=RA FSP],[Board=EK-RA6E2]
登录后下载 ZIP 15.97 MB IDE: e2 studio/GCC/AC6, IAR, Keil MDK
示例代码 登录后下载 ZIP 4.64 MB
示例代码
[Software=RA FSP|v4.2.0]
登录后下载 ZIP 7.74 MB Compiler: GNUARM-None IDE: e2 studio
示例代码 登录后下载 ZIP 6.08 MB 日本語 Compiler: GNU ARM Embedded, ICCARM Function: Security IDE: e2 studio, IAR EWARM
示例代码 登录后下载 ZIP 4.87 MB
5 items

开发板与套件

模型

ECAD 模块

点击产品选项表中的 CAD 模型链接,查找 SamacSys 中的原理图符号、PCB 焊盘布局和 3D CAD 模型。如果符号和模型不可用,可直接在 SamacSys 请求该符号或模型。

Diagram of ECAD Models

模型

类型 文档标题 日期
模型 - IBIS ZIP 2.07 MB
1 item

产品选项

当前筛选条件

视频和培训

RA6E2 200 MHz Arm® Cortex®-M33 Entry-Line MCUs in Compact Packages

An overview of the RA6E2 32-bit Entry-Line MCUs with rich peripheral and connectivity options in compact packages designed for communication and networking modules, appliances, fingerprint readers and cost-sensitive general purpose applications.
