RA6M1 MCU 群组评估套件
EK-RA6M1 评估套件可通过瑞萨电子的灵活配置软件包 (FSP) 和各种 IDE，帮助用户对 RA6M1 MCU 群组的特性轻松进行评估，并对嵌入系统应用程序进行开发。
入门
运行快速入门示例项目
- EK-RA6M1 板已经预先烧录了快速入门示例项目（在“下载”页面中提供了示例项目）
- 用户可使用连接至...
概览
简介
瑞萨电子 RA6M1 微控制器是瑞萨电子 RA6 产品系列的切入点，适用于需要高性能 Arm® Cortex®-M4 内核的应用，价格点非常具有吸引力。RA6M1 采用高效的 40nm 工艺，由开放且灵活的生态系统概念提供支持，即基于 FreeRTOS 的灵活配置软件包 (FSP)，能够扩展以使用其他 RTOSes 和中间件。RA6M1 适用于需要安全性、大型嵌入式 RAM 和低功耗的物联网应用。

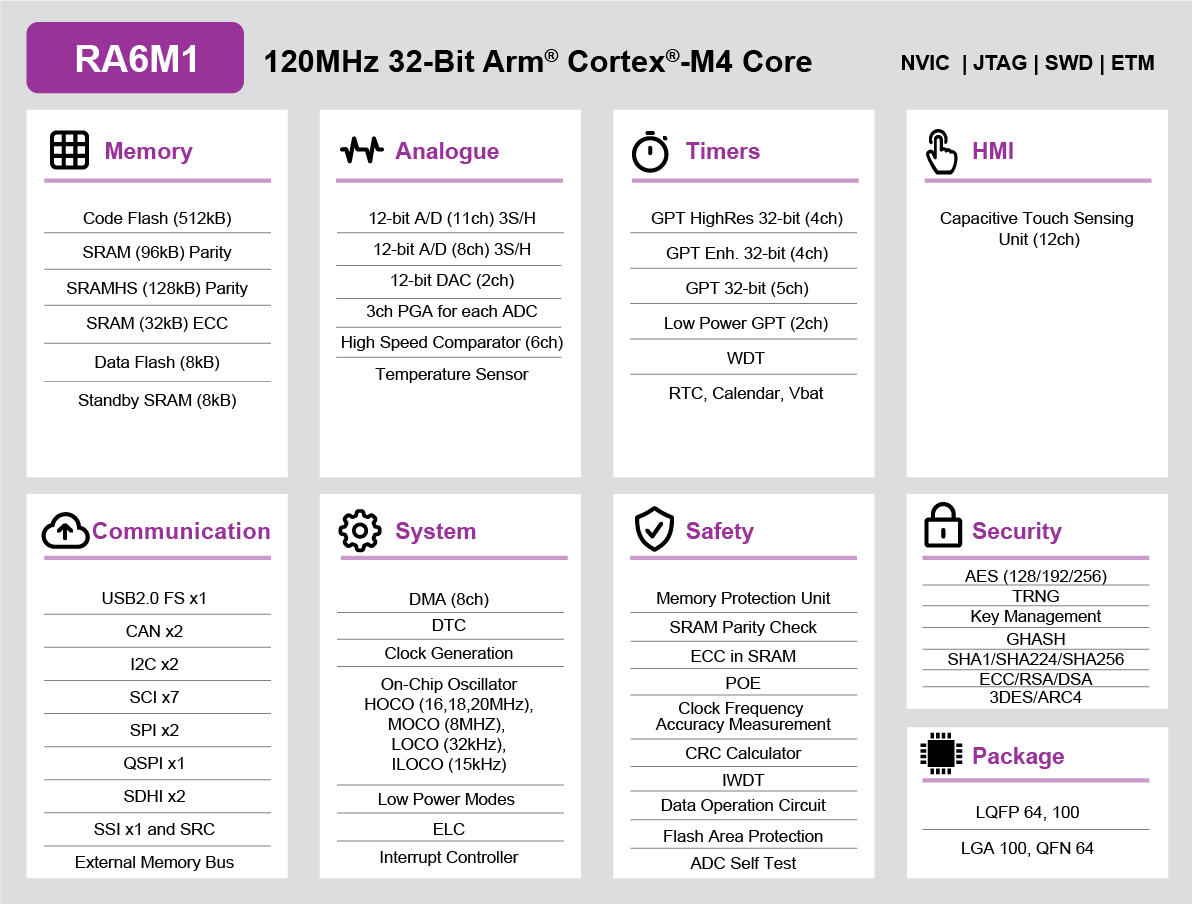

特性
- 120MHz Arm® Cortex®-M4
- 512kB 闪存以及 256kB SRAM
- 与 EEPROM 存储数据功能类似的 8kB 数据闪存
- 可从 64 引脚封装扩展至 100 引脚封装
- 电容式触摸传感单元
- 全速 USB 2.0
- CAN 2.0B
- SCI（UART、简单 SPI、简单 I2C）
- SPI/ I2C 多主机接口
- SDHI
- SSI/串行声音接口
产品对比
应用
- 安全性（火灾探测、防盗检测、面板控制）
- 计量（电力，自动抄表）
- 工业（机器人、开门器、缝纫机、自动售货机、UPS）
- HVAC（供暖、空调、锅炉控制）
- 一般用途
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors In developing embedded system using the capacitive touch sensor of MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RL78, RX, Renesas Synergy™]
|
Solution Toolkit | 瑞萨电子 |
| RA 可扩展性强的配置软件包 (FSP) FSP 是一款增强型软件包，旨在为使用瑞萨电子 RA 系列 Arm 微控制器的嵌入式系统设计提供简单易用且可扩展性强的高质量软件。
|
Software Package | 瑞萨电子 |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | 瑞萨电子 |
| 瑞萨闪存编程器（编程图形用户界面） 闪存编程软件【支持 MCU/MPU 和设备：RA、RE、RX、RL78、RH850、RISC-V MCU 瑞萨电子 Synergy 平台、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、瑞萨电子 USB PD 系列、电机驱动器/制动器驱动器 IC、V850、78K0R、78K0】
|
Programmer (Unit/SW) | 瑞萨电子 |
| RA Smart Configurator The Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain.
|
Solution Toolkit | 瑞萨电子 |
| Sensor Software Modules for Renesas MCU Platforms Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
|
Sensor | 瑞萨电子 |
| Security Key Management Tool Key wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys.
|
Solution Toolkit | 瑞萨电子 |
| e² studio - RA 产品家族信息 基于 Eclipse 的瑞萨集成开发环境（IDE）。
|
IDE and Coding Tool | 瑞萨电子 |
| EZ-CUBE3 EZ-CUBE3（CYRCNEZCUBE03）是具有Flash存储器编程功能的片上调试仿真器，可以用于调试MCU程序或将程序烧写到MCU的内置Flash中。
|
Emulator | 瑞萨电子 |
| SEGGER emWin GUI Library for Renesas RA Products SEGGER's emWin graphics library is a ready-to-use solution that provides a versatile and professional GUI platform for creating interactive and high-quality graphical user interfaces on any type of display for the Renesas RA family.
|
Imaging | SEGGER |
| SEGGER J-Link and J-Trace PRO The J-Link debug probes offer full support for RZ Family MPUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.
|
Emulator | SEGGER |
| IAR Embedded Workbench for Arm IAR Embedded Workbench for Arm (EWARM) provides a complete development environment for Arm - including RA Family MCUs - generating fast, compact code and enabling you to take full control of your code.
|
IDE and Coding Tool | IAR Systems |
| Arm® Keil® MDK Arm® Keil® MDK is a comprehensive software development solution for Arm-based microcontrollers, including RA Family MCUs, containing all the components that you need to create, build, and debug embedded applications.
|
IDE and Coding Tool | Arm® Keil® MDK Arm® |
| Reality AI Utilities 瑞萨电子 e² studio 插件模块
|
Solution Toolkit | 瑞萨电子 |
|
16 items
|
||
样例程序
开发板与套件
RA6M1 语音识别演示板
RTK0EA0004D00001BJ 是使用 RA6M1 语音识别遥控器的演示板。
模型
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
PLP |
Carrier Type |
CPU |
Operating Freq (Max) (MHz) |
Program Memory (KB) |
Data Flash (KB) |
RAM (KB) |
Lead Count (#) |
Pkg. Type |
Pkg. Dimensions (mm) |
Pitch (mm) |
I/O Ports |
Supply Voltage (V) |
Temp. Range |
External Memory Bus (bit) |
Floating Point Unit |
DMAC or DTC |
External Interrupt Pins (#) |
USB FS (host ch/device ch) |
USB HS (host ch/device ch) |
Ethernet (ch) |
CAN (ch) |
CAN-FD (ch) |
SCI or UART (ch) |
SPI (ch) |
I2C (#) |
I3C (ch) |
LIN (#) |
SSI (ch) |
QSPI Interface (#) |
OSPI (ch) |
SDHI (ch) |
Capacitive Touch Sensing Unit (ch) |
Camera I/F (Parallel) |
Segment LCD Controller |
Wireless |
IrDA |
PWM Output (pin#) |
32-Bit Timer (ch) |
16-bit Enhanced Timer (ch) |
16-Bit Timer (ch) (#) |
8-Bit Timer (ch) |
Asynchronous General Purpose Timer (ch) |
Watchdog Timer (ch) |
24-Bit Sigma-Delta A/D Converter (ch) |
16-Bit A/D Converter (ch) |
14-Bit A/D Converter (ch) |
12-Bit A/D Converter (ch) |
10-Bit A/D Converter (ch) |
12-Bit D/A Converter (ch) |
8-Bit D/A Converter (ch) |
High-Speed Analog Comparator (ch) |
Low-Power Analog Comparator (ch) |
PGA (ch) |
OPAMP (ch) (#) |
Temperature Sensor (ch) (#) |
RTC |
LVD or PVD |
Security & Encryption |
Power-On Reset |
Sub-clock (32.768 kHz) |
On-chip Oscillator |
Debug Interface |
Replacement Product |
Replacement Remark |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
购买 / 样片 |
105°C Max. Case Temp. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 器件号 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 探讨中 | Bulk (Tray) | Arm Cortex-M4 | 120 | 512 | 8 | 256 | 100 | TFLGA | 7 x 7 x 1.05 | 0.65 | 76 | 2.7 - 3.6 | Ta = -40 to 85°C | 8 | Single | DMAC&DTC | 14 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 7 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 2 | 12 | No | No | No | 是 | 26 | 13 | 0 | 0 | 0 | 2 | 2 | 0 | 0 | 0 | 17 | 0 | 2 | 0 | 6 | 0 | 6 | 0 | 1 | 是 | 是 | AES, ECC, RSA, SHA224/SHA256, TRNG, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 5.364 | 获取样片, | ||||
| N/A | Bulk (Tray) | Arm Cortex-M4 | 120 | 512 | 8 | 256 | 64 | LFQFP | 10 x 10 x 1.7 | 0.5 | 40 | 2.7 - 3.6 | Ta = -40 to 105°C | No | Single | DMAC&DTC | 14 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 7 | 2 | 2 | 0 | 0 | 0 | 1 | 0 | 0 | 7 | No | No | No | 是 | 22 | 11 | 0 | 0 | 0 | 2 | 2 | 0 | 0 | 0 | 8 | 0 | 2 | 0 | 6 | 0 | 3 | 0 | 1 | 是 | 是 | AES, ECC, RSA, SHA224/SHA256, TRNG, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 3.87 | 获取样片, | ||||
| N/A | Bulk (Tray) | Arm Cortex-M4 | 120 | 512 | 8 | 256 | 100 | LFQFP | 14 x 14 x 1.7 | 0.5 | 76 | 2.7 - 3.6 | Ta = -40 to 105°C | 8 | Single | DMAC&DTC | 14 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 7 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 2 | 12 | No | No | No | 是 | 26 | 13 | 0 | 0 | 0 | 2 | 2 | 0 | 0 | 0 | 17 | 0 | 2 | 0 | 6 | 0 | 6 | 0 | 1 | 是 | 是 | AES, ECC, RSA, SHA224/SHA256, TRNG, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 4.271 | 获取样片, | ||||
| 探讨中 | Bulk (Tray) | Arm Cortex-M4 | 120 | 512 | 8 | 256 | 100 | TFLGA | 7 x 7 x 1.05 | 0.65 | 76 | 2.7 - 3.6 | Ta = -40 to 105°C | 8 | Single | DMAC&DTC | 14 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 7 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 2 | 12 | No | No | No | 是 | 26 | 13 | 0 | 0 | 0 | 2 | 2 | 0 | 0 | 0 | 17 | 0 | 2 | 0 | 6 | 0 | 6 | 0 | 1 | 是 | 是 | AES, ECC, RSA, SHA224/SHA256, TRNG, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 获取样片, | |||||
| 探讨中 | Bulk (Tray) | Arm Cortex-M4 | 120 | 512 | 8 | 256 | 64 | HWQFN | 8 x 8 x 0.8 | 0.4 | 40 | 2.7 - 3.6 | Ta = -40 to 105°C | No | Single | DMAC&DTC | 14 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 7 | 2 | 2 | 0 | 0 | 0 | 1 | 0 | 0 | 7 | No | No | No | 是 | 22 | 11 | 0 | 0 | 0 | 2 | 2 | 0 | 0 | 0 | 8 | 0 | 2 | 0 | 6 | 0 | 3 | 0 | 1 | 是 | 是 | AES, ECC, RSA, SHA224/SHA256, TRNG, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 5.043 | |||||
| 2037 12月 | Full Carton (Tray) | Arm Cortex-M4 | 120 | 512 | 8 | 256 | 64 | LFQFP | 10 x 10 x 1.7 | 0.5 | 40 | 2.7 - 3.6 | Ta = -40 to 105°C | No | Single | DMAC&DTC | 14 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 7 | 2 | 2 | 0 | 0 | 0 | 1 | 0 | 0 | 7 | No | No | No | 是 | 22 | 11 | 0 | 0 | 0 | 2 | 2 | 0 | 0 | 0 | 8 | 0 | 2 | 0 | 6 | 0 | 3 | 0 | 1 | 是 | 是 | AES, ECC, RSA, SHA224/SHA256, TRNG, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 获取样片, | |||||
| 2037 12月 | Full Carton (Tray) | Arm Cortex-M4 | 120 | 512 | 8 | 256 | 100 | LFQFP | 14 x 14 x 1.7 | 0.5 | 76 | 2.7 - 3.6 | Ta = -40 to 105°C | 8 | Single | DMAC&DTC | 14 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 7 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 2 | 12 | No | No | No | 是 | 26 | 13 | 0 | 0 | 0 | 2 | 2 | 0 | 0 | 0 | 17 | 0 | 2 | 0 | 6 | 0 | 6 | 0 | 1 | 是 | 是 | AES, ECC, RSA, SHA224/SHA256, TRNG, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 4.318 | 获取样片, | ||||
| 探讨中 | Full Carton (Tray) | Arm Cortex-M4 | 120 | 512 | 8 | 256 | 64 | HWQFN | 8 x 8 x 0.8 | 0.4 | 40 | 2.7 - 3.6 | Ta = -40 to 105°C | No | Single | DMAC&DTC | 14 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 7 | 2 | 2 | 0 | 0 | 0 | 1 | 0 | 0 | 7 | No | No | No | 是 | 22 | 11 | 0 | 0 | 0 | 2 | 2 | 0 | 0 | 0 | 8 | 0 | 2 | 0 | 6 | 0 | 3 | 0 | 1 | 是 | 是 | AES, ECC, RSA, SHA224/SHA256, TRNG, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 获取样片, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
