概览
简介
瑞萨电子 RA6M4 微控制器 (MCU) 产品群使用了支持 TrustZone® 的高性能 Arm® Cortex®-M33 内核。与片内的 Secure Crypto Engine（SCE） 配合使用，可提供安全芯片的功能。集成带有专用 DMA 的以太网 MAC，可确保高数据吞吐率。RA6M4 采用高效的 40nm 工艺，由基于 FreeRTOS 的灵活配置软件包 (FSP) 这一开放且灵活的生态系统概念提供支持，并能够扩展以使用其他实时操作系统（RTOS）和中间件。RA6M4 适用于物联网应用的需求，如以太网、面向未来应用的安全功能、大容量嵌入式 RAM 和较低功耗（从闪存运行 CoreMark® 算法，低至 99µA/MHz）。

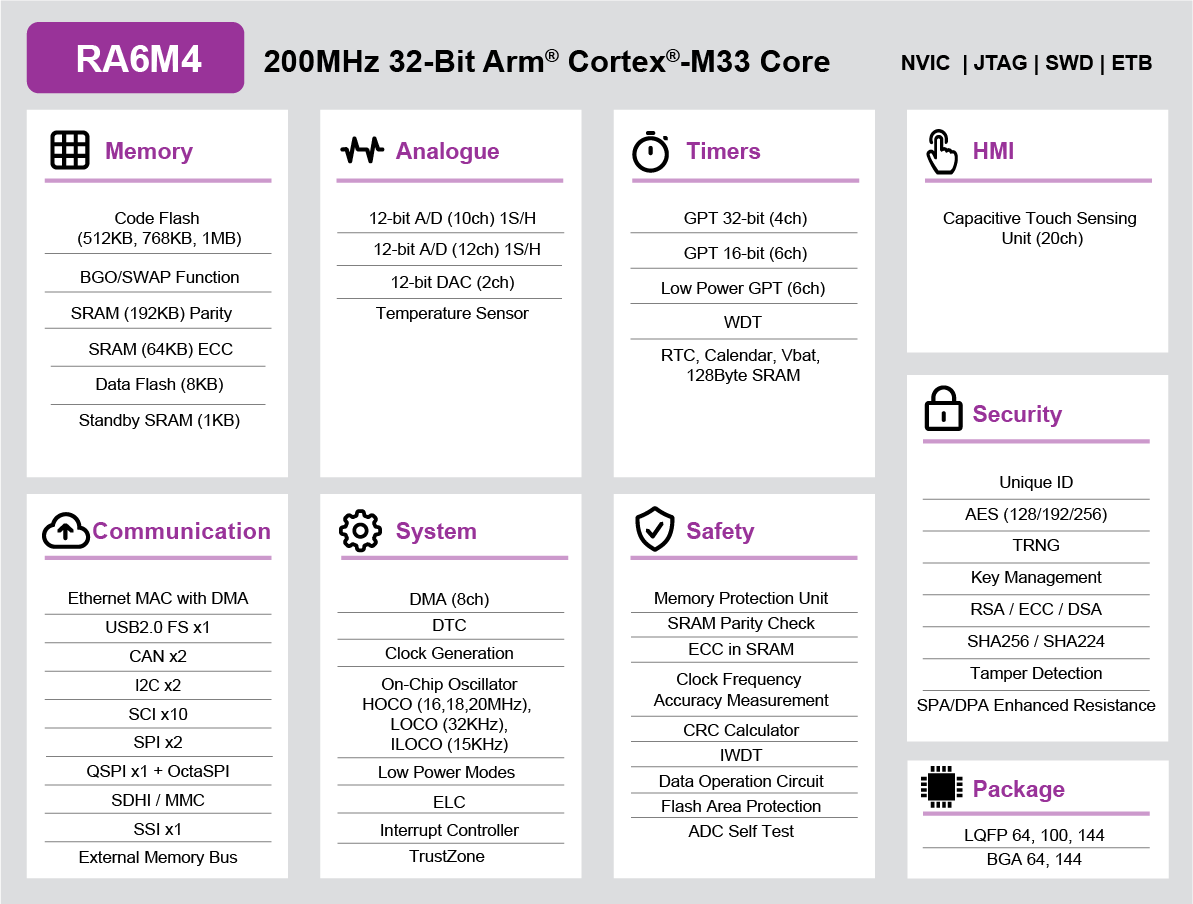

特性
- 支持 TrustZone 的 200MHz Arm Cortex-M33
- 安全芯片的功能
- 512kB - 1MB 闪存、192kB支持奇偶校验 SRAM 以及64kb ECC SRAM
- 具有后台运行能力的双区闪存
- 8KB 数据闪存，提供与 EEPROM 类似的数据存储功能
- 64 引脚封装至 144 引脚封装
- 带有专用 DMA 的以太网控制器
- 电容触摸按键感应单元
- 全速 USB 2.0，支持主机模式和设备模式
- CAN 2.0B
- QuadSPI 和 OctaSPI
- SCI（UART、简单 SPI、简单 I2C）
- SPI/ I2C 多主接口
- SDHI 和 MMC
产品对比
应用
- 有线以太网应用
- 需要增强安全功能的产品（火灾探测、防盗检测、面板控制）
- 表计类产品（电力，自动抄表）
- 工业应用（机器人、开门器、缝纫机、自动售货机、UPS）
- HVAC（供暖、空调、锅炉控制）
- 一般用途
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| RA Smart Configurator The Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain.
|
Solution Toolkit | 瑞萨电子 |
| RA 可扩展性强的配置软件包 (FSP) FSP 是一款增强型软件包，旨在为使用瑞萨电子 RA 系列 Arm 微控制器的嵌入式系统设计提供简单易用且可扩展性强的高质量软件。
|
Software Package | 瑞萨电子 |
| QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors In developing embedded system using the capacitive touch sensor of MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RL78, RX, Renesas Synergy™]
|
Solution Toolkit | 瑞萨电子 |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | 瑞萨电子 |
| 瑞萨闪存编程器（编程图形用户界面） 闪存编程软件【支持 MCU/MPU 和设备：RA、RE、RX、RL78、RH850、RISC-V MCU 瑞萨电子 Synergy 平台、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、瑞萨电子 USB PD 系列、电机驱动器/制动器驱动器 IC、V850、78K0R、78K0】
|
Programmer (Unit/SW) | 瑞萨电子 |
| Sensor Software Modules for Renesas MCU Platforms Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
|
Sensor | 瑞萨电子 |
| Security Key Management Tool Key wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys.
|
Solution Toolkit | 瑞萨电子 |
| e² studio - RA 产品家族信息 基于 Eclipse 的瑞萨集成开发环境（IDE）。
|
IDE and Coding Tool | 瑞萨电子 |
| EZ-CUBE3 EZ-CUBE3（CYRCNEZCUBE03）是具有Flash存储器编程功能的片上调试仿真器，可以用于调试MCU程序或将程序烧写到MCU的内置Flash中。
|
Emulator | 瑞萨电子 |
| SEGGER emWin GUI Library for Renesas RA Products SEGGER's emWin graphics library is a ready-to-use solution that provides a versatile and professional GUI platform for creating interactive and high-quality graphical user interfaces on any type of display for the Renesas RA family.
|
Imaging | SEGGER |
| SEGGER J-Link and J-Trace PRO The J-Link debug probes offer full support for RZ Family MPUs. With their outstanding performance, robustness, and ease of use are widely recognized as the market-leading debug probes today.
|
Emulator | SEGGER |
| IAR Embedded Workbench for Arm IAR Embedded Workbench for Arm (EWARM) provides a complete development environment for Arm - including RA Family MCUs - generating fast, compact code and enabling you to take full control of your code.
|
IDE and Coding Tool | IAR Systems |
| Arm® Keil® MDK Arm® Keil® MDK is a comprehensive software development solution for Arm-based microcontrollers, including RA Family MCUs, containing all the components that you need to create, build, and debug embedded applications.
|
IDE and Coding Tool | Arm® Keil® MDK Arm® |
| QE for OTA: Development Assistance for Cloud QE for OTA is a development assistance tool that enables easy trial of over-the-air (OTA) firmware updates using cloud services. [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RX, RL78, RA] [Support clouds service: Amazon Web Services (AWS), Microsoft Azure]
|
Solution Toolkit | 瑞萨电子 |
| Reality AI Utilities 瑞萨电子 e² studio 插件模块
|
Solution Toolkit | 瑞萨电子 |
|
17 items
|
||
样例程序
开发板与套件
RA6M4 MCU 群组中国本地评估板
CPK-RA6M4 评估板可通过灵活配置软件包 (FSP) 和 e2 studio IDE，帮助用户对RA6M4 MCU 群组的特性进行无缝评估，并对嵌入系统应用程序进行开发。用户可利用丰富的板载功能以及自选的热门生态系统插件来将丰富创意变为现实。
套件内容
- CPK-RA6M4 板
- Micro USB 设备电缆...
特色文件:
RA6M4 MCU 群组云连接评估板
CPKIOT-RA6M4 评估板可通过灵活配置软件包 (FSP) 和 e2 studio IDE，帮助用户对RA6M4 MCU 群组的特性进行无缝评估，并对嵌入系统应用程序进行开发。板上搭载了专为云连接相关应用准备的扩展接口，可以自选各种生态系统插件来将丰富创意变为现实。
套件内容
- CPKIOT-RA6M4...
特色文件:
面向物联网的 SPI 摄像头 – ArduCam Mega
QCIoT-Arducam-Mega 是 ArduCam Mega SPI 摄像头与瑞萨 EK-RA6M4 200MHz Arm® Cortex®-M33 TrustZone® 微控制器评估板的适配产品。 该摄像头解决方案可以帮您快速轻松地将一个或多个摄像头连接到任何微控制器。 该解决方案针对电池供电的物联网设备...
可在云上实验室使用
使用我们基于 PC 的 GUI，无需物理板即可在虚拟实验室中立即开始配置和测试设计
模型
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
PLP |
Carrier Type |
CPU |
Operating Freq (Max) (MHz) |
Program Memory (KB) |
Data Flash (KB) |
RAM (KB) |
ECC SRAM |
Lead Count (#) |
Pkg. Type |
Pkg. Dimensions (mm) |
Pitch (mm) |
I/O Ports |
Supply Voltage (V) |
Temp. Range |
External Memory Bus (bit) |
Floating Point Unit |
DMAC or DTC |
External Interrupt Pins (#) |
USB FS (host ch/device ch) |
USB HS (host ch/device ch) |
Ethernet (ch) |
CAN (ch) |
CAN-FD (ch) |
SCI or UART (ch) |
SPI (ch) |
I2C (#) |
I3C (ch) |
LIN (#) |
SSI (ch) |
QSPI Interface (#) |
OSPI (ch) |
SDHI (ch) |
Capacitive Touch Sensing Unit (ch) |
Camera I/F (Parallel) |
Segment LCD Controller |
Wireless |
IrDA |
PWM Output (pin#) |
32-Bit Timer (ch) |
16-bit Enhanced Timer (ch) |
16-Bit Timer (ch) (#) |
8-Bit Timer (ch) |
Asynchronous General Purpose Timer (ch) |
Watchdog Timer (ch) |
24-Bit Sigma-Delta A/D Converter (ch) |
16-Bit A/D Converter (ch) |
14-Bit A/D Converter (ch) |
12-Bit A/D Converter (ch) |
10-Bit A/D Converter (ch) |
12-Bit D/A Converter (ch) |
8-Bit D/A Converter (ch) |
High-Speed Analog Comparator (ch) |
Low-Power Analog Comparator (ch) |
PGA (ch) |
OPAMP (ch) (#) |
Temperature Sensor (ch) (#) |
RTC |
LVD or PVD |
Security & Encryption |
Power-On Reset |
Sub-clock (32.768 kHz) |
On-chip Oscillator |
Debug Interface |
Replacement Product |
Replacement Remark |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
购买 / 样片 |
105°C Max. Case Temp. |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 器件号 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 2037 12月 | Bulk (Tray) | Arm Cortex-M33 | 200 | 1024 | 8 | 256 | 是 | 100 | LFQFP | 14 x 14 x 1.7 | 0.5 | 76 | 2.7 - 3.6 | Ta = -40 to +105°C | 8 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 12 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 17 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 获取样片, | |||||
| 2037 12月 | Bulk (Tray) | Arm Cortex-M33 | 200 | 512 | 8 | 256 | 是 | 144 | LFQFP | 20 x 20 x 1.7 | 0.5 | 110 | 2.7 - 3.6 | Ta = -40 to +105°C | 8,16 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 20 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 19 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 5.003 | 获取样片, | ||||
| 2037 12月 | Bulk (Tray) | Arm Cortex-M33 | 200 | 512 | 8 | 256 | 是 | 64 | LFQFP | 10 x 10 x 1.7 | 0.5 | 42 | 2.7 - 3.6 | Ta = -40 to +105°C | No | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 8 | 2 | 2 | 0 | 0 | 0 | 1 | 0 | 0 | 7 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 8 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 4.276 | 获取样片, | ||||
| 2037 12月 | Bulk (Tray) | Arm Cortex-M33 | 200 | 512 | 8 | 256 | 是 | 100 | LFQFP | 14 x 14 x 1.7 | 0.5 | 76 | 2.7 - 3.6 | Ta = -40 to +105°C | 8 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 12 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 17 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 获取样片, | |||||
| 2037 12月 | Bulk (Tray) | Arm Cortex-M33 | 200 | 768 | 8 | 256 | 是 | 144 | LFQFP | 20 x 20 x 1.7 | 0.5 | 110 | 2.7 - 3.6 | Ta = -40 to +105°C | 8,16 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 20 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 19 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 获取样片, | |||||
| 2037 12月 | Bulk (Tray) | Arm Cortex-M33 | 200 | 768 | 8 | 256 | 是 | 64 | LFQFP | 10 x 10 x 1.7 | 0.5 | 42 | 2.7 - 3.6 | Ta = -40 to +105°C | No | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 8 | 2 | 2 | 0 | 0 | 0 | 1 | 0 | 0 | 7 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 8 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 4.289 | 获取样片, | ||||
| 2037 12月 | Bulk (Tray) | Arm Cortex-M33 | 200 | 768 | 8 | 256 | 是 | 100 | LFQFP | 14 x 14 x 1.7 | 0.5 | 76 | 2.7 - 3.6 | Ta = -40 to +105°C | 8 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 12 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 17 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 获取样片, | |||||
| 2037 12月 | Bulk (Tray) | Arm Cortex-M33 | 200 | 1024 | 8 | 256 | 是 | 144 | LFQFP | 20 x 20 x 1.7 | 0.5 | 110 | 2.7 - 3.6 | Ta = -40 to +105°C | 8,16 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 20 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 19 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 5.377 | 获取样片, | ||||
| 2037 12月 | Bulk (Tray) | Arm Cortex-M33 | 200 | 1024 | 8 | 256 | 是 | 64 | LFQFP | 10 x 10 x 1.7 | 0.5 | 42 | 2.7 - 3.6 | Ta = -40 to +105°C | No | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 8 | 2 | 2 | 0 | 0 | 0 | 1 | 0 | 0 | 7 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 8 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 4.479 | 获取样片, | ||||
| 探讨中 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 1024 | 8 | 256 | 是 | 64 | BGA | 6 x 6 x 1.38 | 0.65 | 46 | 2.7 - 3.6 | Ta = -40 to +85°C | No | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 8 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 0 | 7 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 8 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 4.05 | 获取样片, | ||||
| 2034 3月 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 768 | 8 | 256 | 是 | 64 | BGA | 6 x 6 x 1.38 | 0.65 | 46 | 2.7 - 3.6 | Ta = -40 to +85°C | No | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 8 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 0 | 7 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 8 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 4.291 | 获取样片, | ||||
| 2034 3月 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 512 | 8 | 256 | 是 | 64 | BGA | 6 x 6 x 1.38 | 0.65 | 46 | 2.7 - 3.6 | Ta = -40 to +85°C | No | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 8 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 0 | 7 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 8 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 获取样片, | |||||
| 2034 3月 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 1024 | 8 | 256 | 是 | 144 | BGA | 7 x 7 x 1.29 | 0.5 | 110 | 2.7 - 3.6 | Ta = -40 to +85°C | 8,16 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 20 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 19 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 5.529 | 获取样片, | ||||
| 2034 3月 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 768 | 8 | 256 | 是 | 144 | BGA | 7 x 7 x 1.29 | 0.5 | 110 | 2.7 - 3.6 | Ta = -40 to +85°C | 8,16 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 20 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 19 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 5.484 | 获取样片, | ||||
| 2034 3月 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 512 | 8 | 256 | 是 | 144 | BGA | 7 x 7 x 1.29 | 0.5 | 110 | 2.7 - 3.6 | Ta = -40 to +85°C | 8,16 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 20 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 19 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 4.537 | 获取样片, | ||||
| 探讨中 | Tape & Reel | Arm Cortex-M33 | 200 | 768 | 8 | 256 | 是 | 100 | LFQFP | 14 x 14 x 1.7 | 0.5 | 76 | 2.7 - 3.6 | Ta = -40 to +105°C | 8 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 12 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 17 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 4.971 | 获取样片, | ||||
| 2039 3月 | Tape & Reel | Arm Cortex-M33 | 200 | 1024 | 8 | 256 | 是 | 100 | LFQFP | 14 x 14 x 1.7 | 0.5 | 76 | 2.7 - 3.6 | Ta = -40 to +105°C | 8 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 12 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 17 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 5.163 | 获取样片, | ||||
| 探讨中 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 1024 | 8 | 256 | 是 | 144 | BGA | 7 x 7 x 1.29 | 0.5 | 110 | 2.7 - 3.6 | Ta = -40 to +105°C | 8,16 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 20 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 19 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 5.9 | 获取样片, | ||||
| 探讨中 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 768 | 8 | 256 | 是 | 144 | BGA | 7 x 7 x 1.29 | 0.5 | 110 | 2.7 - 3.6 | Ta = -40 to +105°C | 8,16 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 20 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 19 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 5.708 | 获取样片, | ||||
| 探讨中 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 512 | 8 | 256 | 是 | 144 | BGA | 7 x 7 x 1.29 | 0.5 | 110 | 2.7 - 3.6 | Ta = -40 to +105°C | 8,16 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 20 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 19 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 5.488 | 获取样片, | ||||
| 2039 3月 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 1024 | 8 | 256 | 是 | 100 | LFQFP | 14 x 14 x 1.7 | 0.5 | 76 | 2.7 - 3.6 | Ta = -40 to +105°C | 8 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 12 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 17 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 4.929 | 获取样片, | ||||
| 2039 3月 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 1024 | 8 | 256 | 是 | 64 | LFQFP | 10 x 10 x 1.7 | 0.5 | 42 | 2.7 - 3.6 | Ta = -40 to +105°C | No | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 8 | 2 | 2 | 0 | 0 | 0 | 1 | 0 | 0 | 7 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 8 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 获取样片, | |||||
| 2039 3月 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 1024 | 8 | 256 | 是 | 144 | LFQFP | 20 x 20 x 1.7 | 0.5 | 110 | 2.7 - 3.6 | Ta = -40 to +105°C | 8,16 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 20 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 19 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 5.38 | 获取样片, | ||||
| 2039 3月 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 768 | 8 | 256 | 是 | 100 | LFQFP | 14 x 14 x 1.7 | 0.5 | 76 | 2.7 - 3.6 | Ta = -40 to +105°C | 8 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 12 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 17 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 4.739 | 获取样片, | ||||
| 2039 3月 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 768 | 8 | 256 | 是 | 64 | LFQFP | 10 x 10 x 1.7 | 0.5 | 42 | 2.7 - 3.6 | Ta = -40 to +105°C | No | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 8 | 2 | 2 | 0 | 0 | 0 | 1 | 0 | 0 | 7 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 8 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 获取样片, | |||||
| 2039 3月 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 768 | 8 | 256 | 是 | 144 | LFQFP | 20 x 20 x 1.7 | 0.5 | 110 | 2.7 - 3.6 | Ta = -40 to +105°C | 8,16 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 20 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 19 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 5.319 | 获取样片, | ||||
| 2039 3月 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 512 | 8 | 256 | 是 | 100 | LFQFP | 14 x 14 x 1.7 | 0.5 | 76 | 2.7 - 3.6 | Ta = -40 to +105°C | 8 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 12 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 17 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 获取样片, | |||||
| 2039 3月 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 512 | 8 | 256 | 是 | 64 | LFQFP | 10 x 10 x 1.7 | 0.5 | 42 | 2.7 - 3.6 | Ta = -40 to +105°C | No | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 8 | 2 | 2 | 0 | 0 | 0 | 1 | 0 | 0 | 7 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 8 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 获取样片, | |||||
| 2039 3月 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 512 | 8 | 256 | 是 | 144 | LFQFP | 20 x 20 x 1.7 | 0.5 | 110 | 2.7 - 3.6 | Ta = -40 to +105°C | 8,16 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 20 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 19 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 5.127 | 获取样片, | ||||
| 探讨中 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 512 | 8 | 256 | 是 | 64 | BGA | 6 x 6 x 1.38 | 0.65 | 46 | 2.7 - 3.6 | Ta = -40 to +105°C | No | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 8 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 0 | 7 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 8 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 获取样片, | |||||
| 探讨中 | Tape & Reel | Arm Cortex-M33 | 200 | 512 | 8 | 256 | 是 | 100 | LFQFP | 14 x 14 x 1.7 | 0.5 | 76 | 2.7 - 3.6 | Ta = -40 to +105°C | 8 | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 1 | 2 | 0 | 10 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 1 | 12 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 17 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 4.499 | 获取样片, | ||||
| 探讨中 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 768 | 8 | 256 | 是 | 64 | BGA | 6 x 6 x 1.38 | 0.65 | 46 | 2.7 - 3.6 | Ta = -40 to +105°C | No | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 8 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 0 | 7 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 8 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 4.588 | 获取样片, | ||||
| 探讨中 | Full Carton (Tray) | Arm Cortex-M33 | 200 | 1024 | 8 | 256 | 是 | 64 | BGA | 6 x 6 x 1.38 | 0.65 | 46 | 2.7 - 3.6 | Ta = -40 to +105°C | No | Single | DMAC&DTC | 16 | ( 1 / 1 ) | ( 0 / 0 ) | 0 | 2 | 0 | 8 | 2 | 2 | 0 | 0 | 1 | 1 | 0 | 0 | 7 | No | No | No | 否 | 20 | 4 | 0 | 6 | 0 | 6 | 2 | 0 | 0 | 0 | 8 | 0 | 2 | 0 | 0 | 0 | 0 | 0 | 1 | 是 | 是 | AES, Arm TrustZone, DSA, ECC, RSA, SHA224/SHA256, TRNG, Tamper Detection, Unique ID | 是 | 是 | 是 | JTAG/SWD | 3 | 4.79 | 获取样片, |
