RH850/E2x 292pin Piggyback Board of RH850 Evaluation Platform
The RH850/E2X 292pin Piggyback Board supports all devices of the RH850/E2M and RH850/E2x-FCC1 series in 292pin-package. It can be used standalone or in combination with...
概览
描述

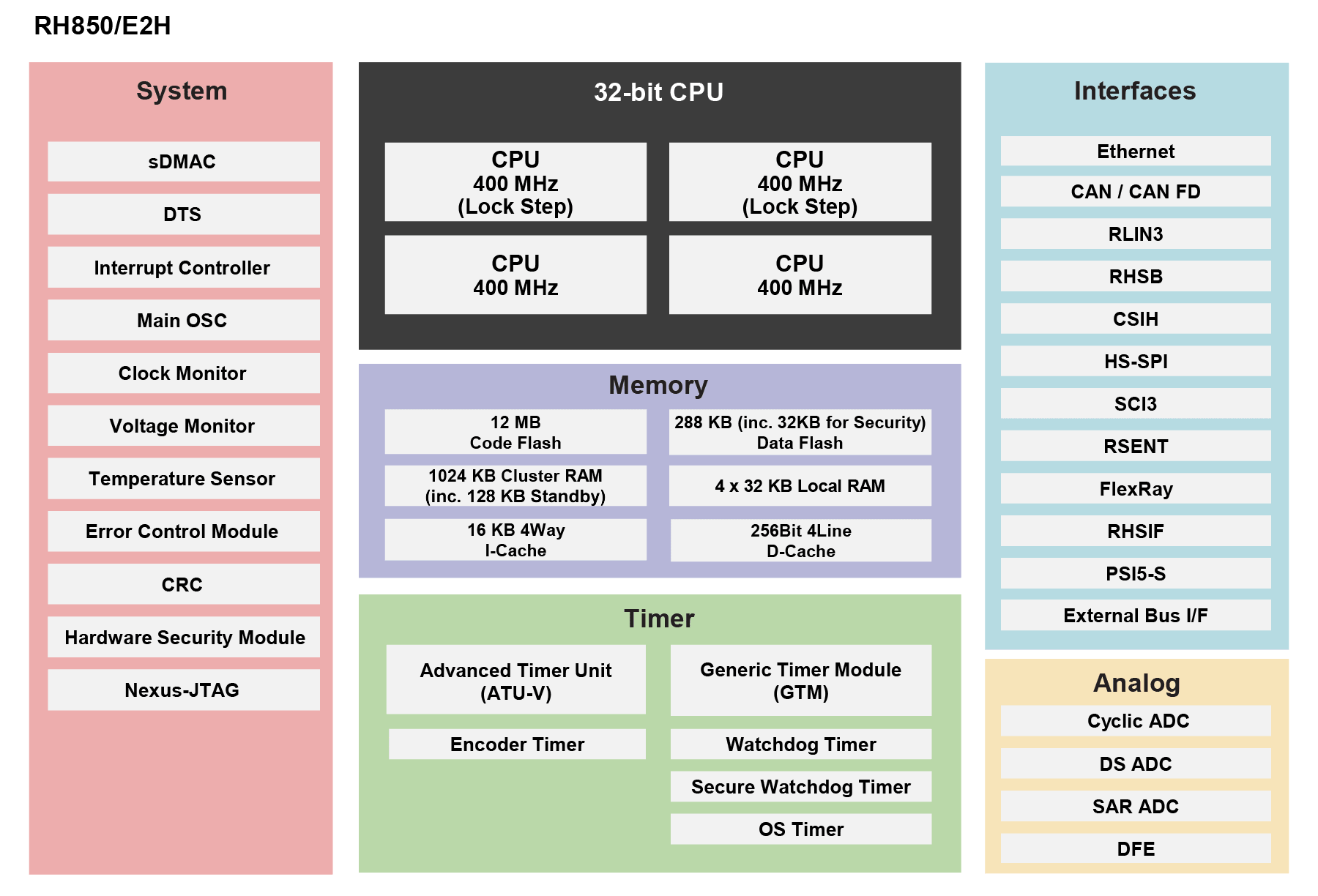

The RH850/E2H microcontrollers operate at 400 MHz and are equipped with large-capacity code flash and RAM of the highest speed class, which is necessary for real-time control. By leveraging multiple G4MH cores, the RH850/E2M supports even more advanced functionality, and many built-in functions such as security functions for Evita Medium and functional safety (ISO 26262) functions make it easier to get the certification. Over The Air (OTA) updating for automatically updating software wirelessly to a safer control program is also supported.
特性
- CPU Core:
- 400MHz core x4 (Inc. Lockstep dual core x2),
- FPU x4, FP-SIMD x2,
- Clock:
- Main Oscillator: 20/40 MHz, PLL: 400 MHz
- Internal Oscillator: 100 MHz
- Data transfer: sDMAC / DTS
- Timers : Engine Control Timer (ATU-V), GTM, Encoder Timer 2 units
- Digital Filter Engine (DFE) 20 ch, 2 units
- Analog: SAR A/D Converter 96 ch, 4 modules ,
- Delta-Sigma A/D Converter 38 ch, 10 modules ,
- Cyclic A/D Converter 8 ch, 1 module
- Communication interfaces :
- Serial Communication Interface (SCI3) 4 ch,
- Clock Synchronous Serial Interface(CSIH) 8 ch,
- High-Speed Bus (RHSB) 3 ch,
- LIN/UART,LIN/Master,LIN/Slave(RLIN3) 6 ch,
- CAN/CAN-FD 6 ch,
- FlexRay 1 unit,
- SENT I/F(RSENT) 20 ch,
- High Speed Serial Peripheral Interface (HS-SPI) 1 ch,
- High-Speed Serial I/F(RHSIF) 1 ch,
- Ethernet 1 ch,
- Peripheral sensor interface compliant with PSI5 Version 2.2 via the external transceiver (PSI5-S) 1 ch,
- External Bus Interface
- Digital Filter Engine (DFE) 20 ch, 2 units
- Security : Hardware security module (compliant with SHE/EVITA-Medium automotive security standard)
- Power Supply Voltage:
- 1.025 - 1.155 V (CPU core);
- 3.0 - 3.6 V / 4.5 - 5.5 V (I/O, System, AD converter)
- Temperature: Tj= -40 - +150 degC
产品对比
应用
- Automotive Powertrain
