RH850/F1x, RH850/F1Kx 176-pin Piggyback Board of RH850 Evaluation Platform
The RH850/F1x 176-pin Piggyback Board supports all devices of the RH850/F1L and RH850/F1KM-S1 series in 176-pin package. It can be used standalone or in combination...
概览
描述

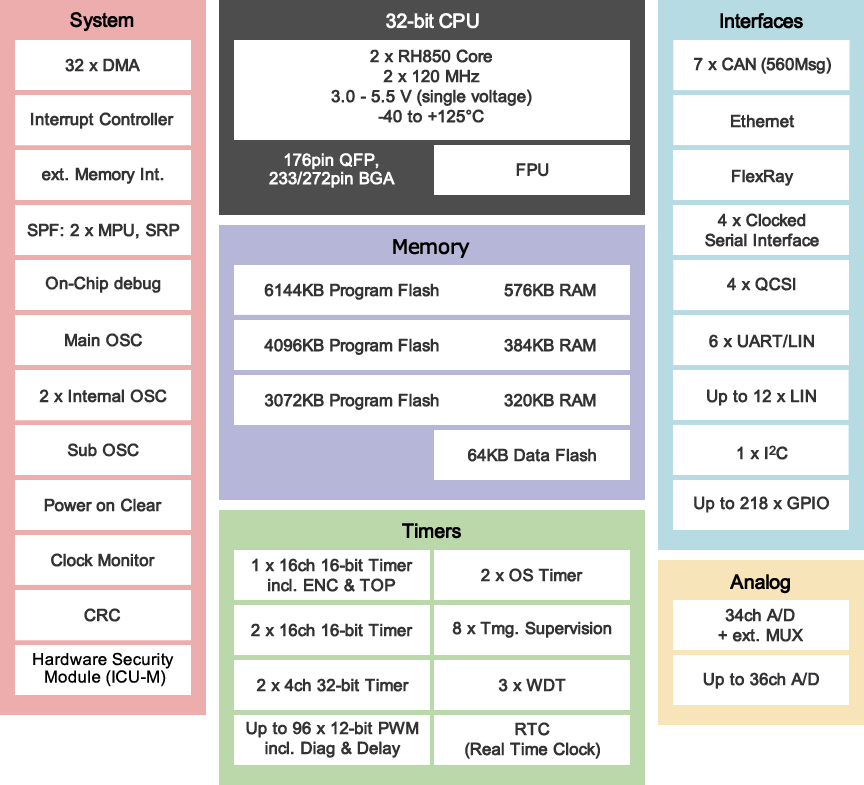

The RH850/F1H is a 32-bit single-chip microcontroller with two RH850G3 cores. The key features of the RH850/F1H are low power consumption, high processing power and a wide variety of internal peripheral functions. In order to correspond to various in-vehicle systems, several combinations of memories and packages are provided.
特性
- Voltage: 3V to 5.5V
- Package: 176-pin LFQFP
- Memory: SRAM Max. 736KB, Program Flash Max. 6MB
- Timer: 32-bit Timer (ch) x 8, 16-bit Timer (ch) x 48, Watchdog Timer (ch) x 3, Timer for OS x 10ch, Encoder timer x 1ch
- PWM: PWM Output x 96, 3-phase PWM Output Function
- Analog function: 10-bit A/D Converter (ch) x 38, 12-bit A/D Converter (ch) x 32
- On-chip Oscillator Freq. (MHz): 8 MHz, Low Speed: 240 kHz
- Others: PLL, RTC, Power-On Reset, Low Voltage Detection
