RH850 Generation 1 Base-Mainboard of RH850 Evaluation System
The RH850 Generation 1 Base-Mainboard provides communication interfaces to the RH850 Piggyback boards. The modular RH850 Evaluation System consisting of mainboards and...
特色文件:
概览
描述

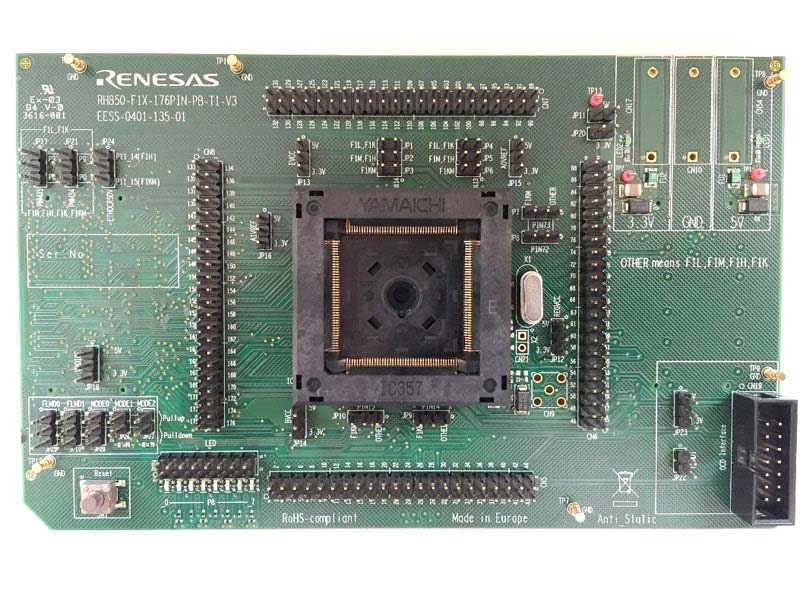

The RH850/F1x 176-pin Piggyback Board supports all devices of the RH850/F1L and RH850/F1KM-S1 series in 176-pin package. It can be used standalone or in combination with a mainboard of the RH850 Evaluation Platform. The modular RH850 Evaluation Platform consisting of mainboards and piggyback boards is a platform for evaluating features and performance of Renesas 32-bit RH850 microcontrollers.
特性
- Can be used with all mainboards of the RH850 Evaluation Platform.
- Socket for mounting the MCU [Note: MCU is not included, needs to be ordered separately]
- 3.3V or 5.0V single supply voltage via 4mm Banana Jacks (2x red, 1x black)
- 14-pin Renesas Debug Connector to connect a Renesas or 3rd party emulator
- offering LPD (1-pin/4-pin) and JTAG debug connection support
- offering serial Flash programming support for the RH850 on-chip Flash memory.
- Each pin of the device is accessible via 2.54 mm pitch connector (double row).
- External clock circuits
- main clock with an exchangeable 8, 16, 20MHz Crystal Resonator
- sub clock 32.768 KHz
- 8x Signal LEDs
- Reset circuit/switch
- Jumpers for device mode selection
应用
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| CS+ 瑞萨电子集成开发环境（IDE）[支持 MCU/MPU：RH850、V850、RX、RL78、78K0R、78K0]
（注意：CS+ 通常不会向美国和欧洲客户推广。
（注意：要在 CS+ 上对 RL78/G23 和 RX 系列 MCU 使用智能配置器，请为每个 MCU 系列安装智能配置器，从“设计和支持”>“开发工具”>“智能配置器”下载）
|
IDE and Coding Tool | 瑞萨电子 |
| RH850 Smart Configurator RH850 Smart Configurator is an automatic driver generation tool for internal peripheral I/O modules through GUI settings.
|
Solution Toolkit | 瑞萨电子 |
| Green Hills Multi 多开发环境：快速开发、调试、测试以及优化嵌入式应用和实时应用。Green Hills 优化编译器：使用 C、C++ 和 Ada 生成最小和最快的代码。
|
IDE and Coding Tool | Green Hills Software LLC |
| IAR Embedded Workbench for Renesas RH850 IAR Embedded Workbench 可为 RH850 设备提供广泛支持。 IAR Embedded Workbench 是一套具备领先优化技术的完整开发工具，可用于创建强大的汽车应用程序。
|
IDE and Coding Tool | IAR Systems |
|
