RH850/E2x 292pin Piggyback Board of RH850 Evaluation Platform
The RH850/E2X 292pin Piggyback Board supports all devices of the RH850/E2M and RH850/E2x-FCC1 series in 292pin-package. It can be used standalone or in combination with...
概览
描述

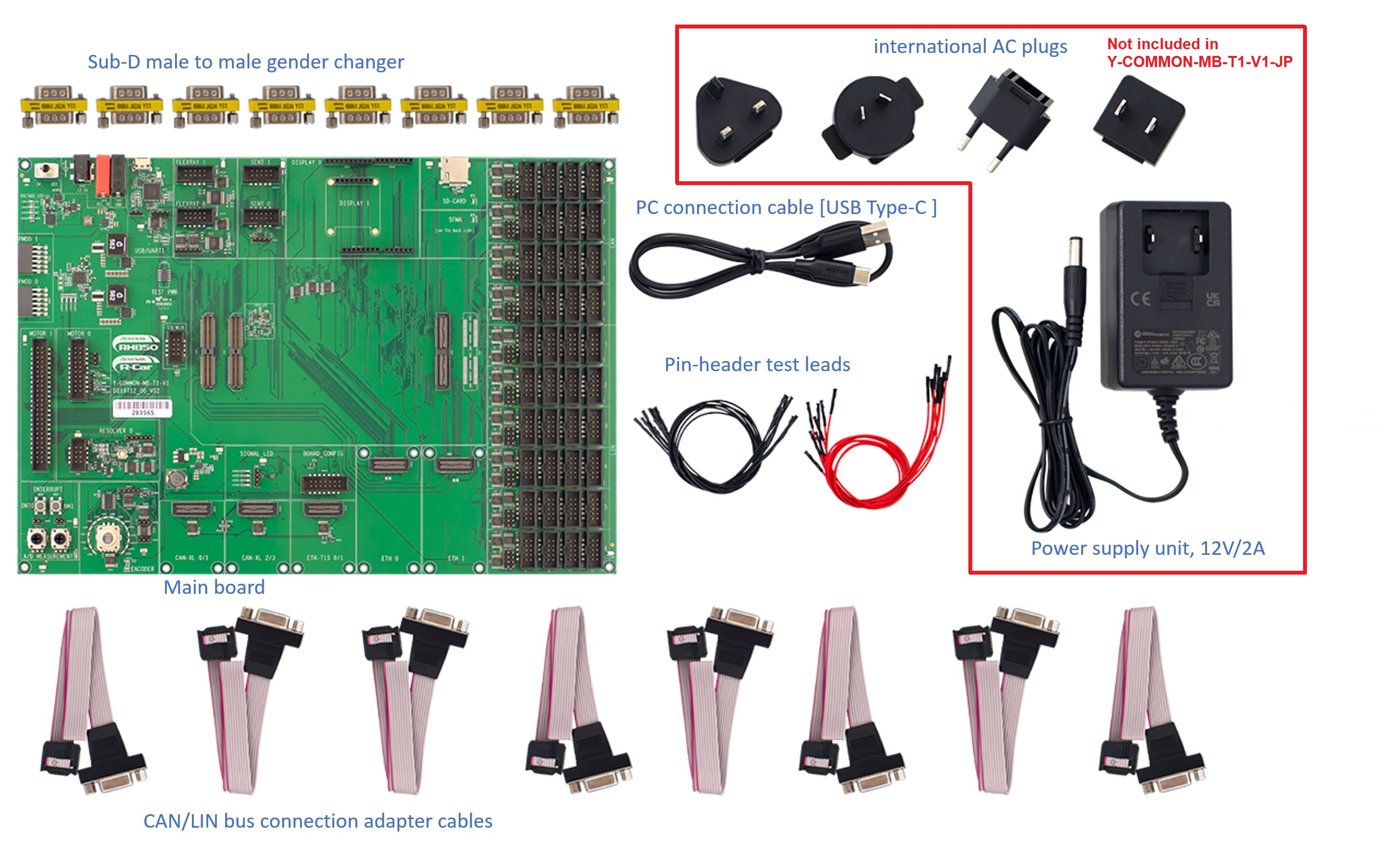

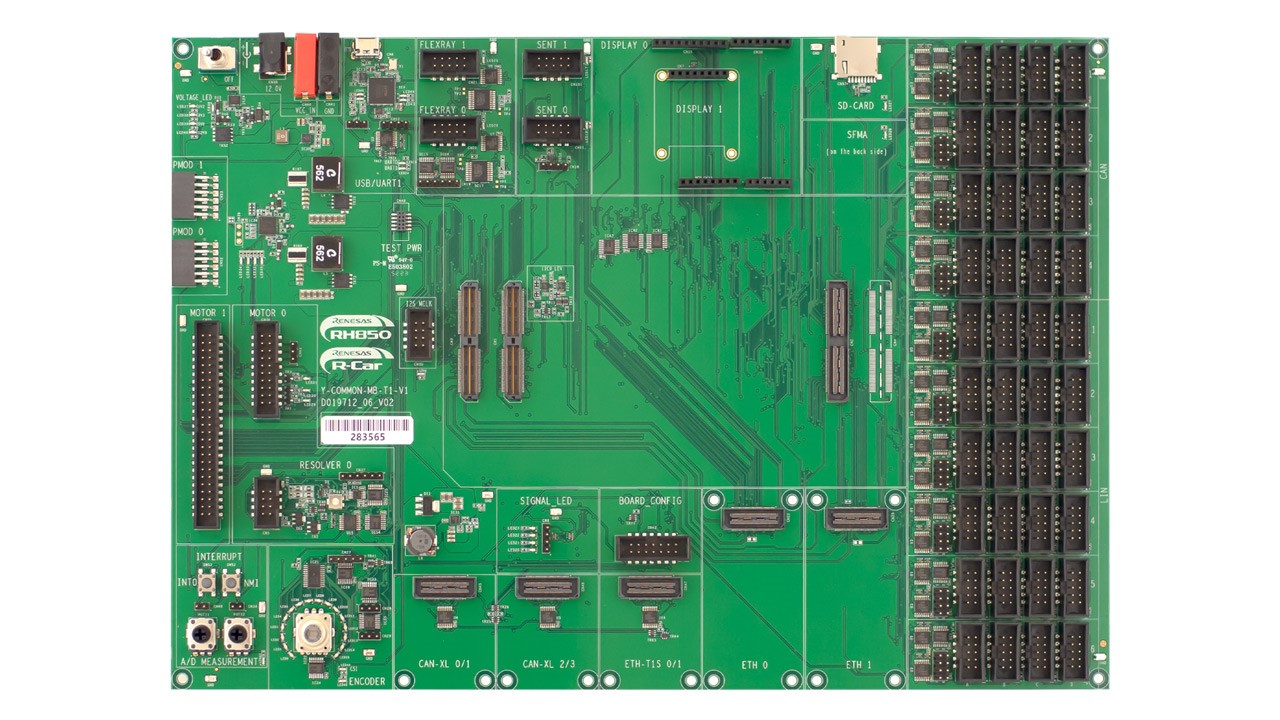

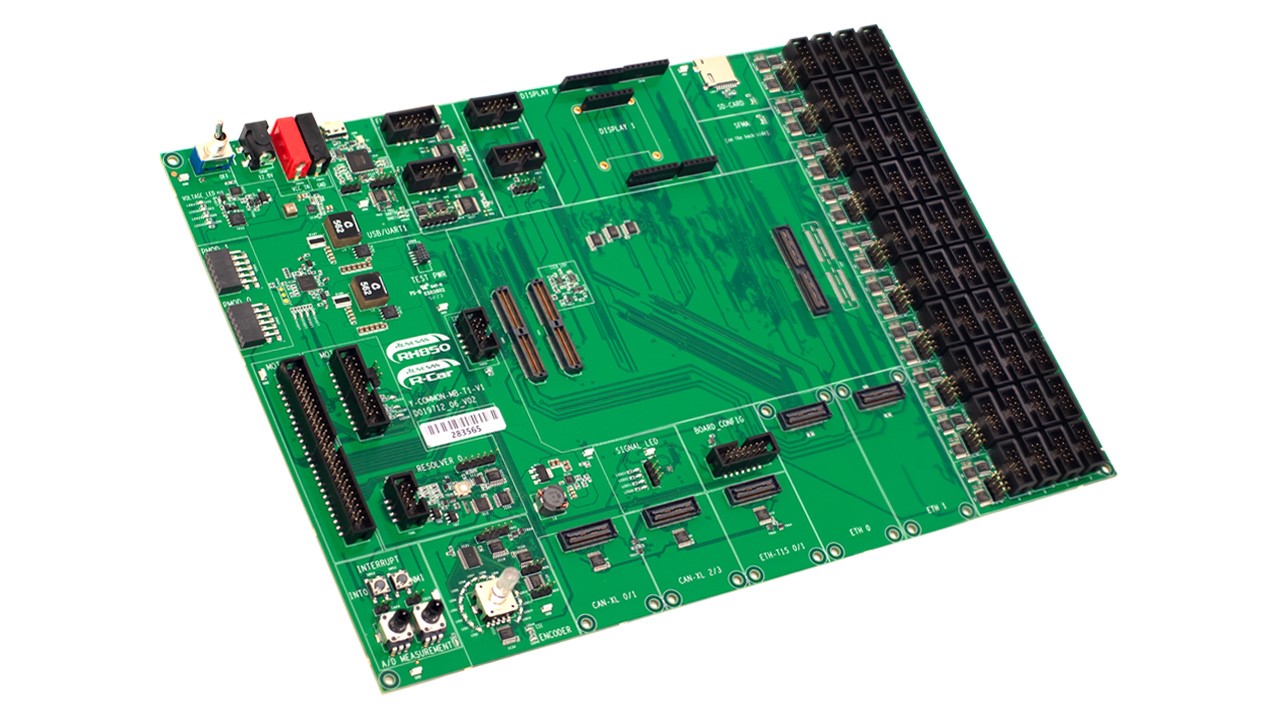

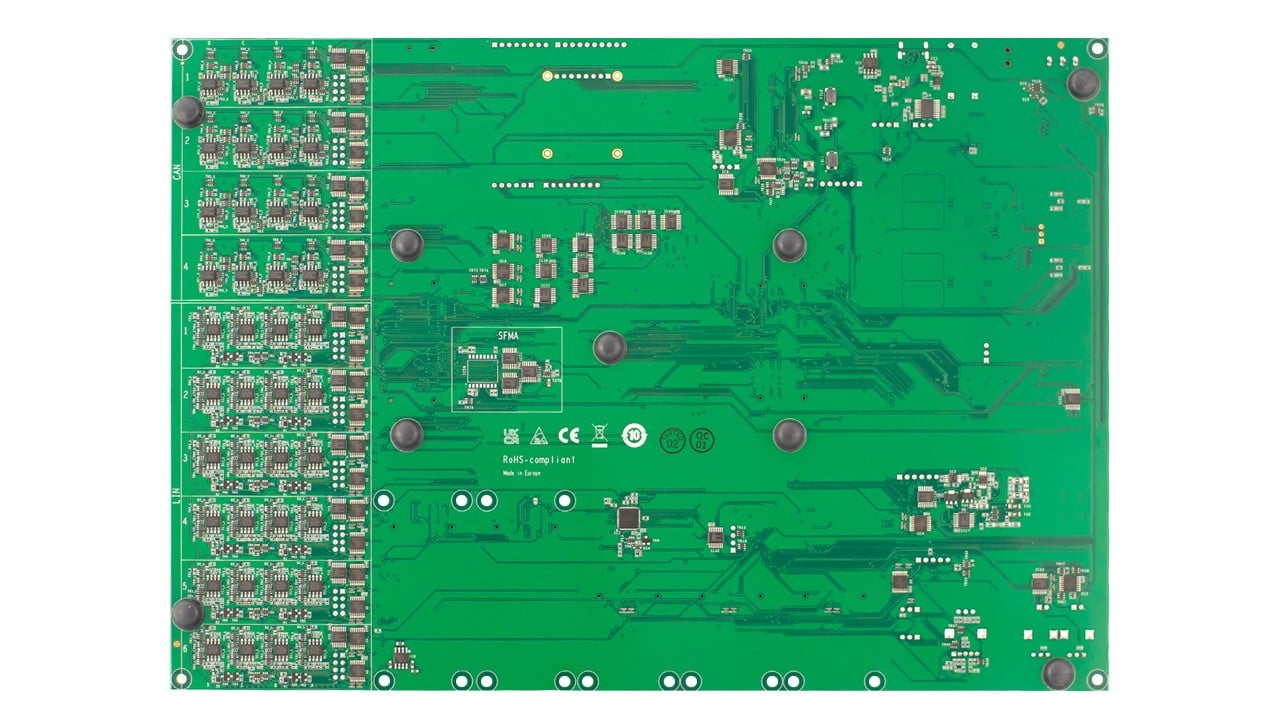

This mainboard provides communication interfaces to the RH850 MCU piggyback boards, offering compatibility across the entire RH850 MCU line for scalable development. The modular evaluation system consists of mainboards and piggyback boards allowing users to evaluate the features and performance of Renesas 32-bit RH850 microcontrollers.
特性
- Single board power supply (12V) with onboard voltage regulators
- High density connectors to adapt MCU piggyback boards
- Board Set-up Configuration via PC / GUI Software
- 16 CAN-FD interfaces
- 24 LIN interfaces
- 2 FlexRay interfaces
- 2 SENT interfaces
- 3 connectors for Ethernet Extension modules supporting MII/RMII, SGMII and T1S
- 2 connectors for CAN-XL Extension modules
- 2 connectors for graphic display extensions
- 2 connectors for motor control signal outputs [one with resolver input circuit]
- 2 PMOD connectors providing I²C/SPI connectivity in various standards
- 1 USB-C/UART1 interface for PC terminal communication
- 1 UART0 shared with one LIN connector
- 1 SD-Card interface
- 4 general-purpose Signal-LEDs
- 16 Signal-LEDs connected via CSI/LED driver
- 2 interrupt push buttons
- 2 potentiometers for analog signal input
- 1 Rotary switch/encoder with RGB illuminated shaft
- Operating temperature from 0°C to +40°C
应用
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| CS+ 瑞萨电子集成开发环境（IDE）[支持 MCU/MPU：RH850、V850、RX、RL78、78K0R、78K0]
（注意：CS+ 通常不会向美国和欧洲客户推广。
（注意：要在 CS+ 上对 RL78/G23 和 RX 系列 MCU 使用智能配置器，请为每个 MCU 系列安装智能配置器，从“设计和支持”>“开发工具”>“智能配置器”下载）
|
IDE and Coding Tool | 瑞萨电子 |
| RH850 Smart Configurator RH850 Smart Configurator is an automatic driver generation tool for internal peripheral I/O modules through GUI settings.
|
Solution Toolkit | 瑞萨电子 |
| Green Hills Multi 多开发环境：快速开发、调试、测试以及优化嵌入式应用和实时应用。Green Hills 优化编译器：使用 C、C++ 和 Ada 生成最小和最快的代码。
|
IDE and Coding Tool | Green Hills Software LLC |
| IAR Embedded Workbench for Renesas RH850 IAR Embedded Workbench 可为 RH850 设备提供广泛支持。 IAR Embedded Workbench 是一套具备领先优化技术的完整开发工具，可用于创建强大的汽车应用程序。
|
IDE and Coding Tool | IAR Systems |
|
4 items
|
||
