概览
简介

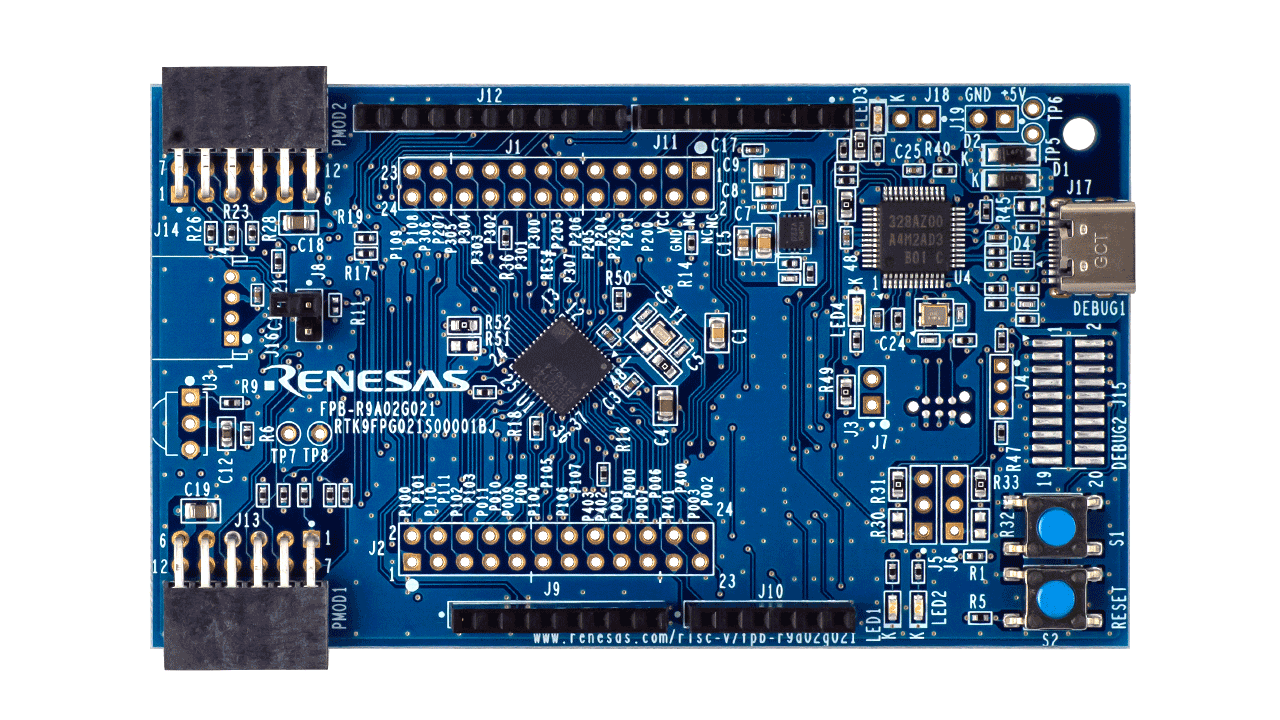

FPB-R9A02G021 快速原型验证板为 R9A02G021 MCU 的评估、原型设计和开发提供一个切入点。 此外，由于此目标板集成了 SEGGER J-Link™ 调试器，您可以将其用于自己的应用开发，而无需进一步投资开发工具。 这款产品包括通孔形式的引脚接头，可连接所有 MCU 的信号引脚，从而可以使用面包板轻松地进行原型设计。
特性
- 评估 MCU：R9A02G0214CNE；48 引脚 HWQFN，128KB 闪存，16KB RAM，4KB 数据闪存
- 尺寸：55 mm x 95 mm
- SEGGER J-Link™ OB
- USB Type-C 连接器
- 2 引脚外部供电接头 (dnf)
- 1 个复位按钮，1 个用户按钮。
- 绿色电源 led 指示灯，两个用户 led 指示灯，黄色调试 led 指示灯
- Pmod™ 连接器，12 引脚 x 2.
- Arduino® 连接器 6 引脚 x 1，8 引脚 x 2，10 引脚 x 1（兼容 Arduino® UNO R3）
- Grove® 连接器，4 引脚 x 1 (dnf)
- 接头上的 MCU 分线引脚：24 引脚 x 2 (dnf)
应用
- 消费电子产品
- 家用电器
- 工业传感器
- 传感器模块
- 总线供电传感器
- 医疗传感器
- 健康状况跟踪
- 遥控器
- 电池供电应用
- 低功耗家用配件
- 探测器
- 车辆跟踪
- 智能电源
- 逆变器
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| 瑞萨闪存编程器（编程图形用户界面） 闪存编程软件【支持 MCU/MPU 和设备：RA、RE、RX、RL78、RH850、RISC-V MCU 瑞萨电子 Synergy 平台、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、瑞萨电子 USB PD 系列、电机驱动器/制动器驱动器 IC、V850、78K0R、78K0】
|
Programmer (Unit/SW) | 瑞萨电子 |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | 瑞萨电子 |
| SEGGER™ J-Link™ Software and Documentation Package Software utilities, firmware updates, and supporting documentation for the J-Link on-board programmer and debugger on the RA MCU kits.
|
Software Package | SEGGER |
| RISC-V Smart Configurator RISC-V Smart Configurator is an automatic driver generation tool for internal peripheral I/O modules through GUI settings.
|
Solution Toolkit | 瑞萨电子 |
| e² studio - information for RISC-V MCU Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | 瑞萨电子 |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| SEGGER Embedded Studio for RISC-V SEGGER Embedded Studio for Renesas R9A02G21 RISC-V MCUs
|
IDE and Coding Tool | SEGGER |
| IAR Embedded Workbench for RISC-V IAR Embedded Workbench for RISC-V MCUs
|
IDE and Coding Tool | IAR Systems |
|
9 items
|
||
样例程序
Processing table
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
视频和培训
RISC-V General Purpose MCU Overview
Watch this lab overview of the features, low-power operation, design resources, and fast prototyping board for the general-purpose RISC-V MCU with Renesas core.
Video List
新闻和博客
| RISC-V释放您的想象力 | 博客 | 2024年3月26日 |
| RISC-V to the Core: New Horizons | 博客 | 2023年11月30日 |
| 瑞萨推出第一代32位RISC-V CPU内核 | 新闻 | 2023年11月30日 |
