概览

RL78/G10 microcontrollers realize the industry's lowest level of consumption current (CPU: 46 μA/MHz, standby (STOP): 560 nA). With an on-chip oscillator, A/D converter, comparator, and more, and a 10/16-pin package lineup, they support more compact system size. These low pin count microcontrollers are perfect for small consumer electronics.

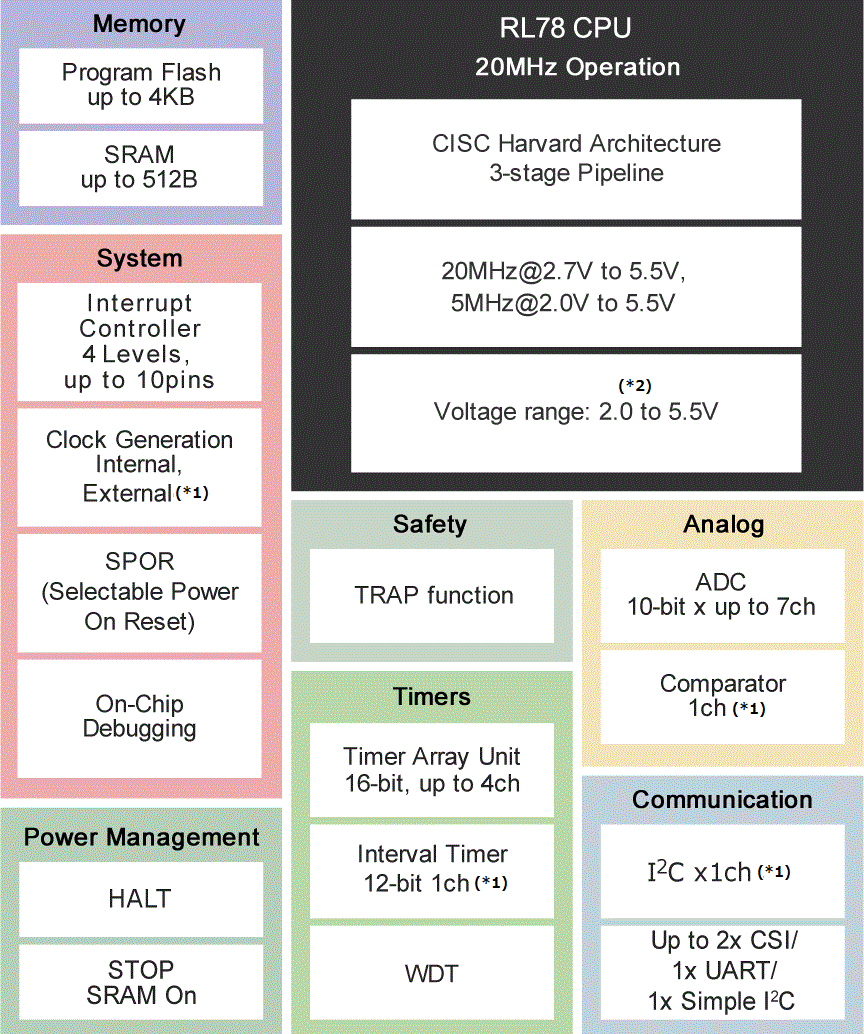

RL78/G10 Block Diagram
RL78/G10 Block Diagram
  • CPU: RL78 core, Max. 20MHz
  • Voltage: 2V to 5.5V
  • Package: 64-pin HTFQFP, 10-pin LSSOP, 16-pin SSOP
  • Memory: SRAM Max. 0.5KB, Program Flash Max. 4KB
  • Timer: 16-bit Timer (ch) x 4, 8-bit Timer (ch) x 4, Watchdog Timer (ch) x 1, 12-bit Interval Timer x 1 ch
  • PWM: PWM Output x 3
  • Analog function: 10-bit A/D Converter (ch) x 8
  • On-chip Oscillator Freq. (MHz): High-Speed: 20, 10. 5, 2.5 1.25MHz Low-speed: 15kHz
  • Others: Power-On Reset

应用

  • Office
  • Home Appliance
  • Healthcare
  • Security

文档

设计和开发

软件与工具
Sound Playback/Compression System [M3S-S2-Tiny] for RL78 Family
Sound playback system for RL78 Family
 Sound / Voice 瑞萨电子
AP4, Applilet
Peripheral I/O driver generator compatible with third-party compilers and GNU compiler (for RZ, V850, RX, RL78, and 78K)
 Code Generator 瑞萨电子
Applilet EZ PL for RL78
Programming software that can easily create microcontroller application software like assembling a puzzle, without using programming languages
 Code Generator 瑞萨电子
Code Generator Plug-in
Automatic driver generation tool for internal peripheral I/O modules through GUI settings [Standard features for Renesas IDE "e² studio" and CS+] [Support MCU/MPU: RL78, V850, 78K, RX]
下载
RL78/G10 Automatic Hand Soap Dispenser Application Notes Rev.1.00RL78/G10 Wi-Fi module (ESP-WROOM-02) control sample software for TCP/IP Slave Transmission/Reception Rev.1.10RL78/G10 Hand dryer Application Notes Rev.1.00
 Code Generator 瑞萨电子
C Compiler Package for RL78 Family [CC-RL]
C Compiler Package for RL78 Family [IDE: CS+, e² studio]
 Compiler/Assembler 瑞萨电子
E2 emulator [RTE0T00020KCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
下载
[Flyer] E2仿真器[RTE0T00020KCE00000R]Current Consumption Tuning Solution for RL78 family (E2 Emulator,CS+) Rev.1.00Current Consumption Tuning Solution for RL78 family (E2 Emulator, e² studio) Rev.1.00
 Emulator 瑞萨电子
E2 emulator Lite [RTE0T0002LKCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
 Emulator 瑞萨电子
PG-FP6
Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
 Programmer (Unit/SW) 瑞萨电子
Renesas Flash Programmer (Programming GUI)
闪存编程软件 [支持 MCU/MPU 和器件：RA、RE、RX、RL78、RH850、RISC-V MCU Renesas Synergy、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、Renesas USB Power Delivery Family、电机驱动器/执行器驱动器 IC、V850、78K0R、78K0]
 Programmer (Unit/SW) 瑞萨电子
Simulator for e² studio of RL78 Family
Simulator for RL78 Family [Support IDE: e² studio] (Note: This product is included in the Renesas IDE "e² studio" and is not available separately.)
 Simulator 瑞萨电子
RL78 Web Simulator
Right online tools to support initial evaluation of the low power consumption RL78 Family. Lineup: MCU Simulator Online and Current Consumption Calculator. Free of charge.
 Simulator 瑞萨电子
QE for Current Consumption: A Dedicated Tool for Current Measurement
Development assistance tool helps to shorten the times taken in operations for the tuning of currents drawn. [Standard item in the "e² studio" and CS+ (CS+ for CC only) IDEs] [Support MCU/MPU: RX, RL78]
下载
Current Consumption Tuning Solution for RL78 family (E2 Emulator, e² studio) Rev.1.00Current Consumption Tuning Solution for RL78 family (E2 Emulator,CS+) Rev.1.00
 Solution Toolkit 瑞萨电子
CS+
瑞萨电子集成开发环境（IDE）[支持 MCU/MPU：RH850、V850、RX、RL78、78K0R、78K0] （注意：CS+ 通常不会向美国和欧洲客户推广。 （注意：要在 CS+ 上对 RL78/G23 和 RX 系列 MCU 使用智能配置器，请为每个 MCU 系列安装智能配置器，从“设计和支持”>“开发工具”>“智能配置器”下载）
 IDE and Coding Tool 瑞萨电子
e² studio - information for RL78 Family
Eclipse-based Renesas integrated development environment (IDE).
IDE and Coding Tool 瑞萨电子
IAR Embedded Workbench for Renesas RL78
IAR Embedded Workbench provides extensive support for RL78 devices. IAR Embedded Workbench is a complete set of development tools with leading optimization technology for creating powerful automotive applications.
 IDE and Coding Tool IAR Systems
Renesas IAR Embedded Workbench Device-Support-Packages
Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
 IDE and Coding Tool 瑞萨电子
Add 7 hidden items
16 items

开发板与套件

Household Gas Alarm

Household-Gas-Alarm

演示
了解更多

家用燃气报警器演示套件

家用燃气报警器是一个报警系统，一旦检测到因燃气泄露或不完全燃烧导致一氧化碳浓度发生变化，会立即通过闪烁的 LED 灯和蜂鸣器向用户发出警报。通过这个简单的设备，可以提高家庭安全等级。

这款家用燃气报警器演示套件采用 RL78/G10 少引脚小型低功耗通用 MCU，使用蜂鸣器输出控制电路控制 LED 和蜂鸣器。使用 ISL28113...

特色文件:
RL78/G10 Household Gas Alarm Batch Download
Infrared Human Sensor

Infrared-Human-Sensor

演示
了解更多

红外线人体传感器演示套件

红外线人体传感器演示套件通过红外线传感器检测是否有人体存在，并且可以自动打开/关闭高亮度 LED 灯。它的应用范围很广泛，比如办公室灯光和自动门。

红外线 LED 发送的信号由瑞萨 RL78/G10 MCU 定时器阵列单元（TAU01）控制，接收的信号由定时器阵列单元（TAU00）和外部中断终端（INTP0）控制。...

特色文件:
RL78/G10 Infrared Human Sensor Batch Download
QB-R5F10Y16-TB

QB-R5F10Y16-TB

评估
了解更多

RL78/G10 (R5F10Y16) Target Board

As a CPU board usable in connection with the on-chip debugging emulator E2, E2 Lite, E1(discontinued product), this product achieves simple and easy evaluation of the...

RTE510Y470TGB00000R

RTE510Y470TGB00000R

评估
了解更多

RL78/G10 (R5F10Y47) CPU Board

As a CPU board usable in connection with the on-chip debugging emulator E1 or MINICUBE2, this product achieves simple and easy evaluation of the target MCU.

Smart Power Strip

Smart-Power-Strip

演示
了解更多

智能插线板演示套件

智能插线板是一款非常受欢迎的家用电器，广泛应用于多个连接设备的智能联动控制和节能。

该智能插线板解决方案采用 RL78/G10 低功耗小封装 MCU，可以同时控制多个终端的电源供应，如计算机主机（主设备）和显示器（从属设备），或带有机顶盒和路由器的电视机等。RL78/G10...

特色文件:
RL78/G10 Smart Power Strip Batch Download
Window Alarm with Buzzer

Window-Alarm-with-Buzzer

演示
了解更多

窗户报警器演示套件

此款解决方案可安装于门、窗、入口等处。当检测到由外力引起的振动时，会发出警报，吓退入侵者。

该窗户报警器解决方案采用 RL78/G10 通用 MCU 功能，如外部中断、定时器模块、蜂鸣器输出控制电路和看门狗定时器。正常情况下，如果窗口无振动，设备将进入停止模式。如果检测到振动，它会从停止模式中唤醒，发出警报。RL78/G10...

特色文件:
RL78/G10 Window Alarm with Buzzer Batch Download

ECAD 模块

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

扩展 ECAD 模块
Diagram of ECAD Models

产品选择

    Processing table
    PLP
    Program Memory (KB)
    RAM (KB)
    Lead Count (#)
    Temp. Range
    Bit Size
    CPU
    Data Flash (KB)
    Supply Voltage (V)
    Operating Freq (Max) (MHz)
    RTC
    LVD
    DMA
    I/O Ports
    Timer
    ADC
    DAC
    CAN (ch)
    Ethernet
    USB
    Human Machine Interface
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    购买 / 样片
    器件号
    R5F10Y14DSP#50
    circle有效
    memory
    view_in_ar
    		2033 12月 1 0.125 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch 10-bit x 4-ch No 0 No No No 3
    R5F10Y44DSP#50
    circle有效
    memory
    view_in_ar
    		2033 12月 1 0.125 16 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 14 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 7-ch No 0 No No No 3
    R5F10Y46DSP#50
    circle有效
    memory
    view_in_ar
    立即购买
    		2033 12月 2 0.25 16 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 14 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 7-ch No 0 No No No 3
    R5F10Y47DSP#50
    circle有效
    memory
    view_in_ar
    立即购买
    		2033 12月 4 0.5 16 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 14 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 7-ch No 0 No No No 3
    R5F10Y17DSP#50
    circle有效
    memory
    view_in_ar
    		2033 12月 4 0.5 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch 10-bit x 4-ch No 0 No No No 3
    R5F10Y16DSP#50
    circle有效
    memory
    view_in_ar
    		2036 3月 2 0.25 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch 10-bit x 4-ch No 0 No No No 3
    R5F10Y16ASP#V0
    circle有效
    Repl. Product
    memory
    view_in_ar
    立即购买
    		N/A 2 0.25 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch 10-bit x 4-ch No 0 No No No 3 0.475
    R5F10Y16ASP#X0
    circle有效
    Repl. Product
    memory
    view_in_ar
    立即购买
    		N/A 2 0.25 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch 10-bit x 4-ch No 0 No No No 3 0.5758
    R5F10Y14ASP#V0
    circle有效
    Repl. Product
    memory
    view_in_ar
    立即购买
    		N/A 1 0.125 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch 10-bit x 4-ch No 0 No No No 3 0.6969
    R5F10Y14ASP#X0
    circle有效
    Repl. Product
    memory
    view_in_ar
    立即购买
    		N/A 1 0.125 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch 10-bit x 4-ch No 0 No No No 3
    R5F10Y17ASP#50
    circle有效
    memory
    view_in_ar
    立即购买
    		2033 12月 4 0.5 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch 10-bit x 4-ch No 0 No No No 3 0.4502
    R5F10Y47ASP#50
    circle有效
    memory
    view_in_ar
    立即购买
    		2033 12月 4 0.5 16 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 14 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 7-ch No 0 No No No 3 0.5652
    R5F10Y46ASP#50
    circle有效
    memory
    view_in_ar
    		2033 12月 2 0.25 16 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 14 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 7-ch No 0 No No No 3
    R5F10Y44ASP#50
    circle有效
    memory
    view_in_ar
    		2033 12月 1 0.125 16 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 14 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 7-ch No 0 No No No 3
    R5F10Y14DSP#10
    circle有效
    memory
    view_in_ar
    立即购买
    		2033 12月 1 0.125 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch 10-bit x 4-ch No 0 No No No 3 0.4487
    R5F10Y16DSP#10
    circle有效
    memory
    view_in_ar
    立即购买
    		2036 3月 2 0.25 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch 10-bit x 4-ch No 0 No No No 3 0.4487
    R5F10Y17ASP#10
    circle有效
    memory
    view_in_ar
    立即购买
    		2033 12月 4 0.5 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch 10-bit x 4-ch No 0 No No No 3 0.3788
    R5F10Y17DSP#10
    circle有效
    memory
    view_in_ar
    立即购买
    		2033 12月 4 0.5 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch 10-bit x 4-ch No 0 No No No 3
    R5F10Y44ASP#10
    circle有效
    memory
    view_in_ar
    立即购买
    		2033 12月 1 0.125 16 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 14 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 7-ch No 0 No No No 3 0.4237
    R5F10Y44DSP#10
    circle有效
    memory
    view_in_ar
    立即购买
    		2033 12月 1 0.125 16 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 14 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 7-ch No 0 No No No 3 0.4385
    R5F10Y46ASP#10
    circle有效
    memory
    view_in_ar
    立即购买
    		2033 12月 2 0.25 16 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 14 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 7-ch No 0 No No No 3 0.5454
    R5F10Y46DSP#10
    circle有效
    memory
    view_in_ar
    		2033 12月 2 0.25 16 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 14 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 7-ch No 0 No No No 3
    R5F10Y47ASP#10
    circle有效
    memory
    view_in_ar
    立即购买
    		2033 12月 4 0.5 16 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 14 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 7-ch No 0 No No No 3 0.4825
    R5F10Y47DSP#10
    circle有效
    memory
    view_in_ar
    		2033 12月 4 0.5 16 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 14 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 7-ch No 0 No No No 3
    R5F10Y14DSP#70
    circle有效
    memory
    view_in_ar
    		N/A 1 0.125 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch 10-bit x 4-ch No 0 No No No 3
    R5F10Y44DSP#70
    circle有效
    memory
    view_in_ar
    		N/A 1 0.125 16 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 14 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 7-ch No 0 No No No 3
    R5F10Y46DSP#70
    circle有效
    memory
    view_in_ar
    		N/A 2 0.25 16 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 14 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 7-ch No 0 No No No 3
    R5F10Y47DSP#70
    circle有效
    memory
    view_in_ar
    		N/A 4 0.5 16 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 14 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 7-ch No 0 No No No 3
    R5F10Y17DSP#70
    circle有效
    memory
    view_in_ar
    		N/A 4 0.5 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch 10-bit x 4-ch No 0 No No No 3
    R5F10Y16DSP#70
    circle有效
    memory
    view_in_ar
    		N/A 2 0.25 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch 10-bit x 4-ch No 0 No No No 3
    R5F10Y17ASP#70
    circle有效
    memory
    view_in_ar
    		N/A 4 0.5 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch 10-bit x 4-ch No 0 No No No 3
    R5F10Y47ASP#70
    circle有效
    memory
    view_in_ar
    		N/A 4 0.5 16 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 14 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 7-ch No 0 No No No 3
    R5F10Y46ASP#70
    circle有效
    memory
    view_in_ar
    		N/A 2 0.25 16 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 14 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 7-ch No 0 No No No 3
    R5F10Y44ASP#70
    circle有效
    memory
    view_in_ar
    		N/A 1 0.125 16 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 14 12-bit x 1-ch, 16-bit x 4-ch 10-bit x 7-ch No 0 No No No 3
    R5F10Y14ASP#10
    circle有效
    memory
    view_in_ar
    		2033 12月 1 0.125 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch No 0 No No No 3
    R5F10Y16ASP#10
    circle有效
    memory
    view_in_ar
    		2033 12月 2 0.25 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch No 0 No No No 3
    R5F10Y14ASP#50
    circle有效
    memory
    view_in_ar
    		2033 12月 1 0.125 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch No 0 No No No 3
    R5F10Y14ASP#70
    circle有效
    memory
    view_in_ar
    		N/A 1 0.125 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch No 0 No No No 3
    R5F10Y16ASP#70
    circle有效
    memory
    view_in_ar
    		N/A 2 0.25 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch No 0 No No No 3
    R5F10Y16ASP#50
    circle有效
    memory
    view_in_ar
    		2033 12月 2 0.25 10 -40 to 85°C 8 RL78 0 2 - 5.5 20 是 否 No 8 16-bit x 2-ch No 0 No No No 3
