RL78/L12

有效
产品长期供货

Compact LCD Microcontrollers with Low Power Consumption, Suitable for Small Appliances and Healthcare Devices

立即订购

特性

  • CPU: RL78 core, Max. 24MHz
  • Voltage: 1.6V to 5.5V
  • Package: 64-pin QFN, 32 to 64-pin QFP
  • Memory: SRAM Max. 1.5KB, Program Flash Max. 32KB
查找RL78 低功耗 8 位和 16 位 MCU的其他产品

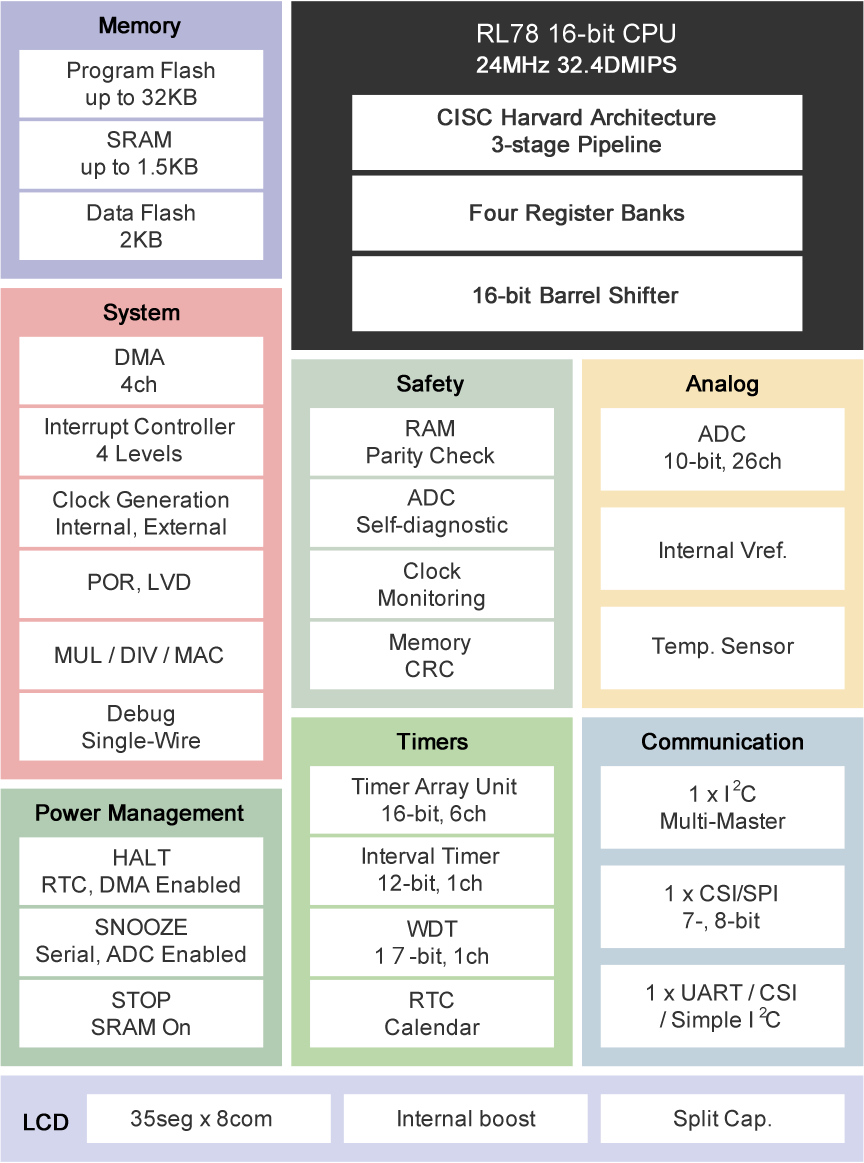

RL78/L12 Block Diagram

描述

RL78/L12 microcontrollers have a built-in segment LCD driver. Three LCD driving voltage generation methods (external resistance division, capacitive split, and internal voltage boost) are supported, corresponding to a variety of segment LCD panels. They realize low current consumptionNote 1: external resistance division: 1.60 μANote 2, internal voltage boost: 1.19 μA, and capacitive split: 0.68 µA. With a lineup of 32 to 64-pin products supporting up to 280 segments, these microcontrollers are perfect for small devices with built-in LCD panels such as small appliances and healthcare devices.

Note 1: Current (typ.) at 1/3 bias, subclock operation, HALT mode, and RTC operation.

Note 2: Resistance value for external resistance division = 1000 kΩ.

产品参数

属性 值
Program Memory (KB) 8, 16, 32
Data Flash (KB) 2
RAM (KB) 1, 1.5
Carrier Type Full Carton (Tray), Full Tray (Tray), Tape & Reel
Supply Voltage (V) 1.6 - 5.5
I/O Ports 20, 29, 33, 37, 47
Temp. Range (°C) Ta = -40 to +85, Ta = -40 to +105
Operating Freq (Max) (MHz) 24
USB FS (host ch/device ch) ( 0 / 0 )
SCI or UART (ch) 1
SPI (ch) 2
I2C (#) 1
CAN (ch) 0
CAN-FD (ch) 0
Wireless No
LIN (#) 1
16-Bit Timer (ch) (#) 8
12-Bit A/D Converter (ch) 0
10-Bit A/D Converter (ch) 4, 7, 9, 10
24-Bit Sigma-Delta A/D Converter (ch) 0
12-Bit D/A Converter (ch) 0
10-Bit D/A Converter (ch) (#) 0
8-Bit D/A Converter (ch) 0
Capacitive Touch Sensing Unit (ch) 0
Segment LCD Controller Yes
Security & Encryption No

封装选项

Pkg. Type Pkg. Dimensions (mm) Lead Count (#) Pitch (mm)
HWQFN 8 x 8 x 0.8 64 0.4
LFQFP 7 x 7 x 1.7 48 0.5
LFQFP 10 x 10 x 1.7 64 0.5
LQFP 7 x 7 x 1.7 32 0.8
LQFP 10 x 10 x 1.6 44 0.8
LQFP 10 x 10 x 1.7 44 0.8
LQFP 10 x 10 x 1.7 52 0.65
LQFP 10 x 10 x 1.6 52 0.65
LQFP 12 x 12 x 1.6 64 0.65
LQFP 12 x 12 x 1.7 64 0.65

应用方框图

Programmable Radiator Thermostat Block Diagram
可编程散热器恒温器
可编程散热器恒温器可实现分区控制、节省能源、确保舒适性并支持扩展。

其他应用

  • Healthcare
  • Home Appliance
  • Office
  • Security
