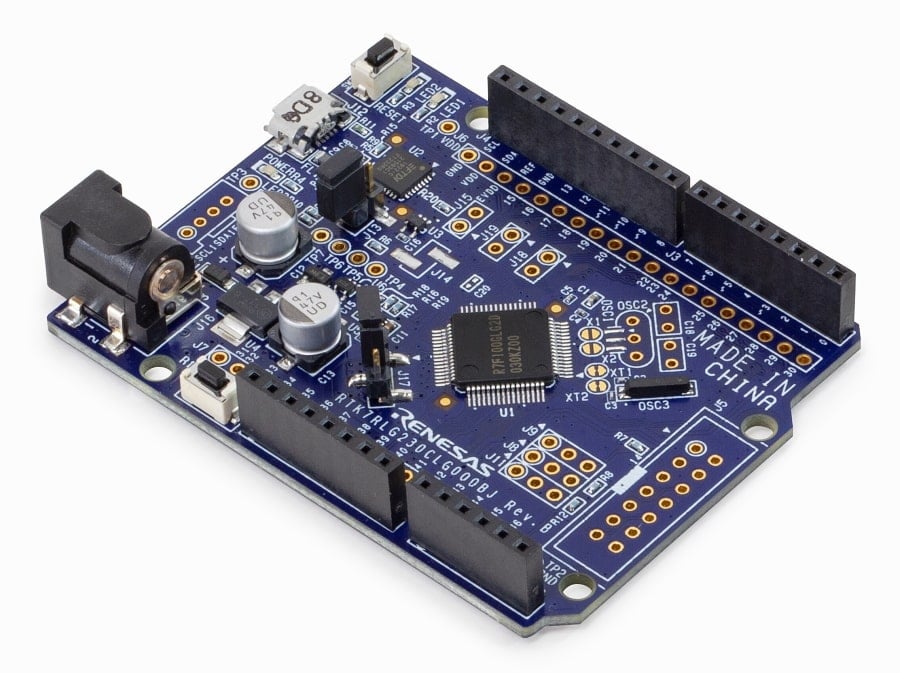

RL78/G23-64p 快速原型开发板采用 RL78/G23 微控制器,是各种原型开发的理想选择。 它通过示例代码支持音频播放、基于 LoRa 和 LoRaWAN 的无线通信等功能。 内置的仿真器电路相当于 E2 仿真器 Lite,无需额外工具即可进行编程和调试。 此外,它还具有 Arduino Uno 和 Grove 接口,可连接所有微控制器引脚,并且具有很高的可扩展性。 瑞萨电子还提供了一个 Arduino 库,支持在 Arduino IDE 上创建各种程序(草图)。

还提供 128 引脚开发板:RL78/G23-128p 快速原型开发板

特性

  • 配备 16 位微控制器(64 引脚、ROM:128KB、RAM:16KB)
  • 使用 USB 线连接到电脑,即可通过 COM 端口通信编写/调试程序

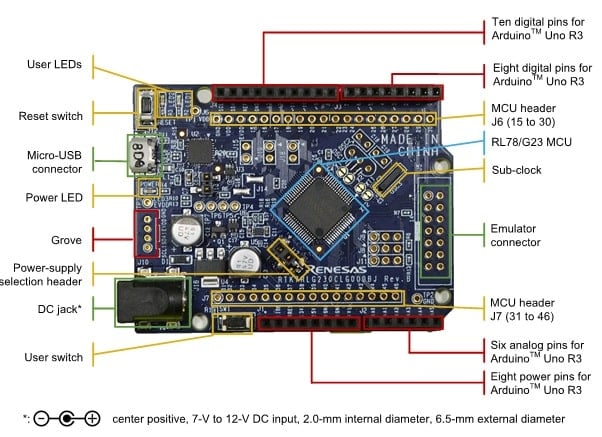

  • 可以连接微控制器的所有引脚
  • 标配 Arduino Uno 和 Grove 接口
  • 可提供 Arduino 库
  • 支持各种 RL78 系列的软件和工具

应用

文档

设计和开发

软件与工具

软件与工具

Software title
Software type
公司
E2 emulator Lite [RTE0T0002LKCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
Emulator 瑞萨电子
E2 emulator [RTE0T00020KCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
Emulator 瑞萨电子
C Compiler Package for RL78 Family [CC-RL]
C Compiler Package for RL78 Family [IDE: CS+, e² studio]
Compiler/Assembler 瑞萨电子
CS+
瑞萨电子集成开发环境(IDE)[支持 MCU/MPU:RH850、V850、RX、RL78、78K0R、78K0] (注意:CS+ 通常不会向美国和欧洲客户推广。 (注意:要在 CS+ 上对 RL78/G23 和 RX 系列 MCU 使用智能配置器,请为每个 MCU 系列安装智能配置器,从“设计和支持”>“开发工具”>“智能配置器”下载)
IDE and Coding Tool 瑞萨电子
e² studio - information for RL78 Family
Eclipse-based Renesas integrated development environment (IDE).
IDE and Coding Tool 瑞萨电子
IAR Embedded Workbench for Renesas RL78
IAR Embedded Workbench provides extensive support for RL78 devices. IAR Embedded Workbench is a complete set of development tools with leading optimization technology for creating powerful automotive applications.
IDE and Coding Tool IAR Systems
Renesas IAR Embedded Workbench Device-Support-Packages
Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
IDE and Coding Tool 瑞萨电子
7 items

软件下载

类型 文档标题 日期
PCB 设计文件 ZIP 3.15 MB
电路板信息文件 ZIP 1 KB
2 items

样例程序

相关评估板和套件

产品选项

当前筛选条件

视频和培训

Rl78 Arduino Tutorial - Introduction of Sample Sketch Using Arduino Library

This video introduces how to display data from the HS3001 sensor on the serial monitor of the Arduino IDE using RL78/G23-64p Fast Prototyping Board and HS3001.

Chapter's Title

00:00 Opening
01:08 Board Connections
01:23 Setup of Board Manager
02:14 Sample sketch operation
03:23 Ending

Related Resources

Quick Start Guide

Software

Hardware
