RL78/G23-64p 快速原型开发板（RL78/G23-64p FPB）
RL78/G23-64p 快速原型开发板配备 RL78/G23 微控制器，是一种专门用于各种应用开发试产的原型开发板。 它只需连接 USB 线即可编写/调试程序，无需任何其他工具即可着手评估。 此外，它还可以使用传统 E2 仿真器和 E2 Lite 仿真器实现高性能调试（有关方法，请参考用户手册）。 标配 Arduino Uno 和...
概览
简介

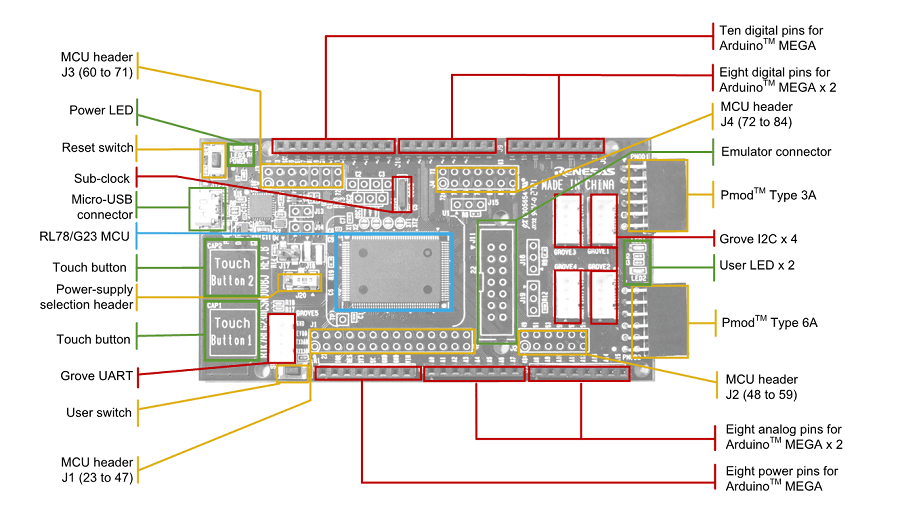

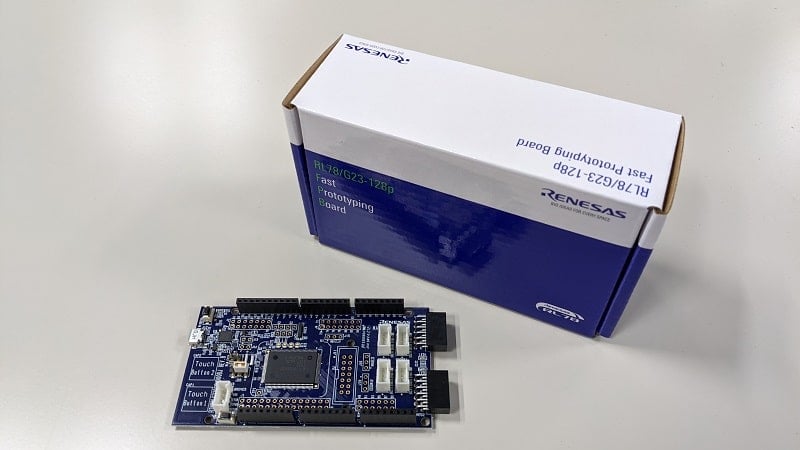

RL78/G23-128p 快速原型开发板配备有RL78/G23微控制器，是一款专用于各种应用原型开发的评估板。它具有与 E2 Lite 仿真器同等的内置仿真器电路，以便您编写/调试程序，而无需其他工具。标配Arduino Mega，Pmod™和Grove接口，具有高度的可扩展性，譬如能够访问微控制器的所有引脚。它配备两个电容传感器触摸按钮，这是RL78/G22的特征功能之一。
也可以 64 引脚开发板：RL78/G23-64p 快速原型开发板
特性
- 配备16位微控制器(128脚、ROM:768KB, RAM:48KB)
- 内置仿真器电路进行程序调试/编写不需要其他工具
- 可以通过通孔连接微控制器的所有引脚
- 标配Arduino Mega，Pmod™和Grove接口
- 配备电容触摸传感器按钮
- 适用RL78开发环境（软件和工具请参阅此处）
应用
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| 快速连接平台 快速连接平台通过提供兼容的硬件和软件构建模块，实现快速原型设计。
|
Software and Hardware Development Tools | 瑞萨电子 |
3 items
|
||
