概览

描述

RX140产品群是RX100系列中处理性能最强、功耗最低的微控制器。可以广泛应用于家用电器、工业控制和楼宇自动化等领域。RX140采用RXv2内核,工作频率最高48MHz,处理性能是32MHz运行的RX130的近两倍。此外,它在运行时的电路为56μA/MHz,在待机模式下电流为0.25μA,比前代产品降低30%以上。此外,新加入的低功耗模式(SNOOZE模式)可使需要间歇动作的应用实现更低功耗。RX140还搭载了最新的静电容量式触摸传感器,这是瑞萨的第三代电容触摸IP,抗噪性能比以往有了飞跃性的提升;并且防水性能也有所提高,可用于嘈杂环境和潮湿环境等,用途更广泛。RX140还扩展了外围接口,配备可实现实时通信的CAN总线接口、可减少数据窃听和篡改等安全威胁的AES加速器和真随机数发生器。

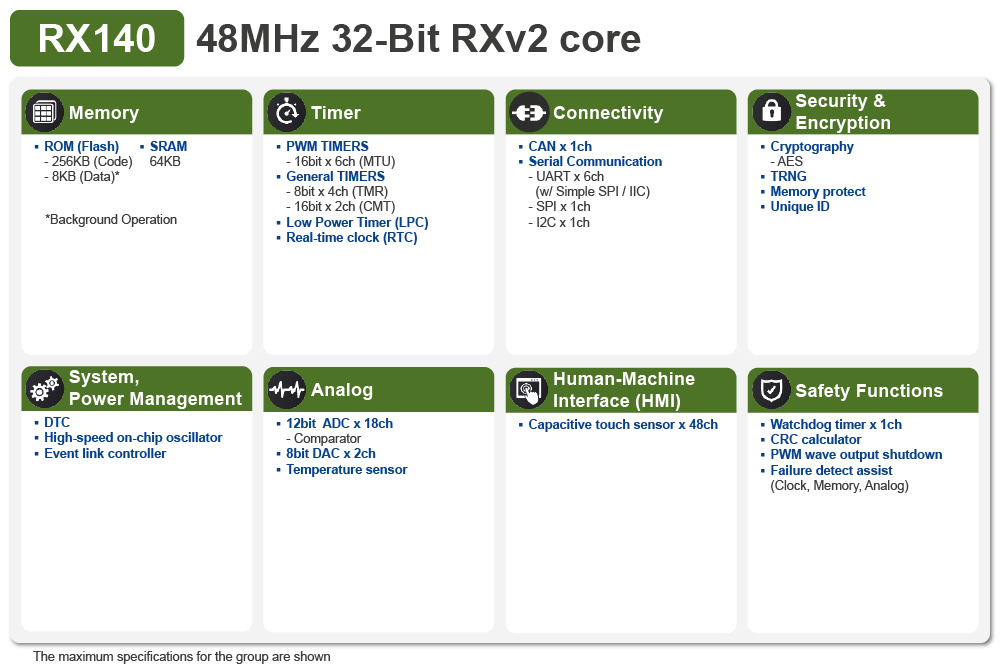

特性

  • 搭载CPU RXv2内核(最大工作频率48MHz)
  • 低功耗(运行时为56μA/MHz,待机模式下为0.25μA)
  • 最大256KB闪存、64KB SRAM
  • 8KB DataFlash,可用于存储数据
  • 高速片上振荡器,精度+/-1.0%
  • 宽工作电压范围1.8V至5.5V
  • 静电容量式触摸感应单元(CTSU2SL、CTSU2L)
  • SCI (可配置为UART、简单 SPI、简单 I2C)
  • 独立的的SPI和多主I2C接口
  • CAN总线接口
  • 12位A/D转换器、8位D/A转换器、温度传感器
  • 32位通用PWM定时器、16位通用PWM定时器、低功耗异步通用定时器
  • 实时时钟
  • 数据安全(AES、真随机数生成器)
  • 功能安全
  • 封装阵容丰富,从32到80pin应用程序

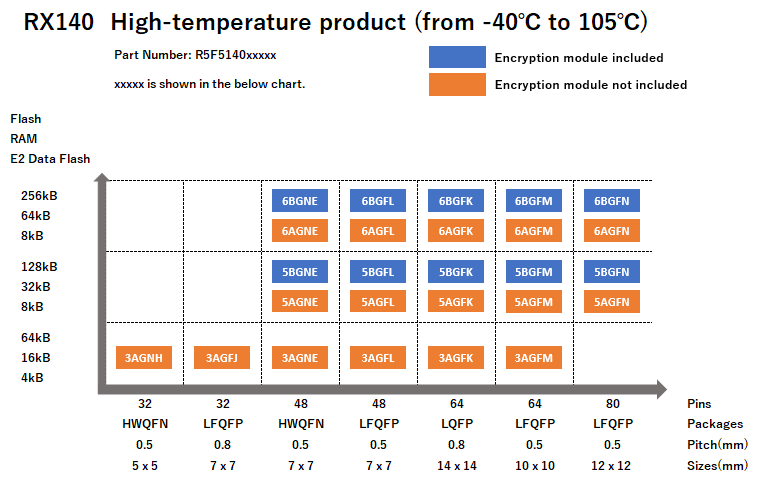

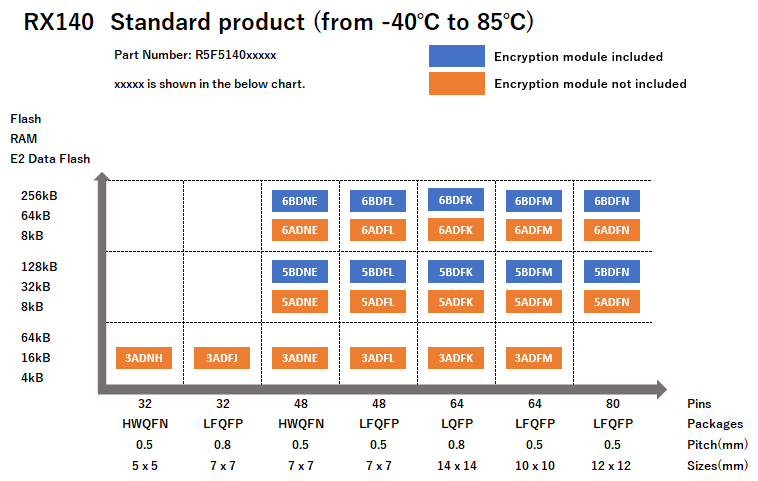

产品对比

应用

  • 家用电器
  • 工业控制
  • 楼宇自动化
  • 家庭自动化
  • 消费电子产品
