RX261 MCU 产品群快速原型板
RX261 MCU 产品群的快速原型板，搭载 RX261 MCU (R5F52618BGFP)。 该原型板适用于 RX261 评估和各种应用原型的开发。 它板载仿真调试电路，通过 USB 线缆将其连接至电脑即可编写/调试程序。 此外还具有很强的扩展性，标配 Arduino 和两个 Pmod™ 连接器，并借助通孔可访问微控制器的所有引脚...
概览
描述
RX260 系列是具有出色能效比的 32 位微控制器，支持先进触摸功能。 适用于消费类电子、工业自动化、建筑自动化以及电池供电产品等多种应用。
RXv3 内核在 64MHz 运行时可发挥 355CoreMark 的强大性能。 工作电流为 69μA/MHz，待机电流为 1μA。 借助 SNOOZE 模式，可使外设功能在待机时运行，从而充分降低间歇运行期间的功耗。
作为人机界面功能（HMI）的一部分，RX260搭载了第三代电容式触摸传感单元 (CTSU2SL) 。 CTSU2SL 支持：多频点扫描，可减少因外部噪声造成的误检；主动屏蔽，可抑制电极上水分的影响；自动判断功能，可在不激活 CPU 的情况下检测触摸事件；MEC 功能，可减少触摸测量时间和多电极设计的电流消耗量。
此外，RX260 还具有区域保护功能，允许用户在代码闪存中设置一块不可覆写的区域。 此功能非常适合用于存储安全启动程序。

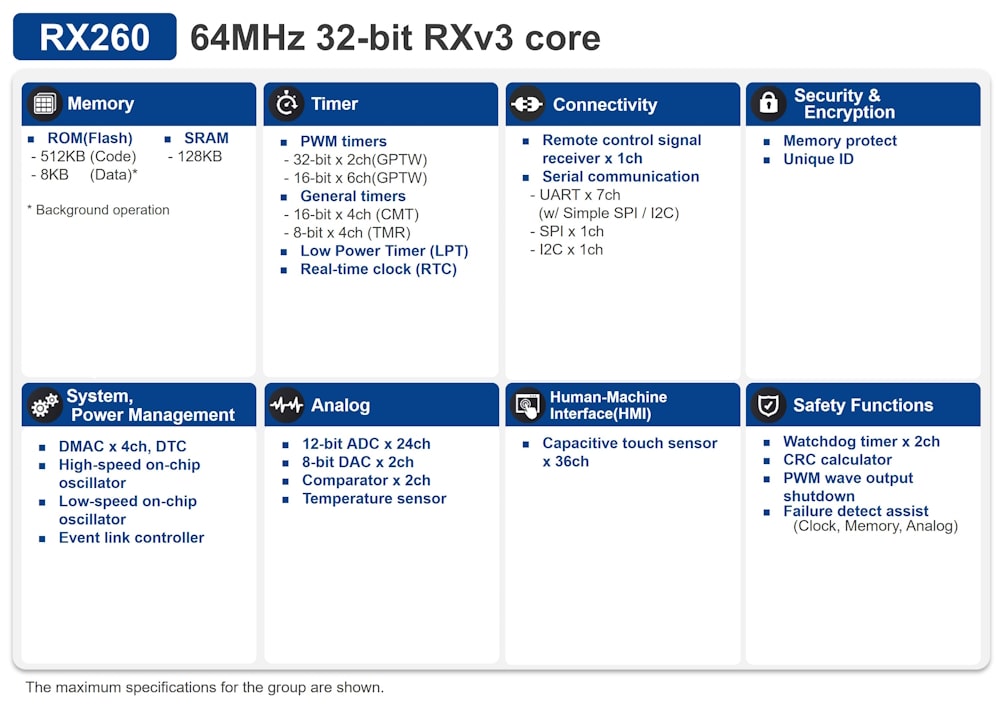

特性
- 64MHz RXv3 内核 (355CoreMark)
- 低功耗（运行：69μA/MHz，待机：1μA）
- 最大 512KB代码闪存，128KB SRAM
- 8KB 数据闪存，可提供与 EEPROM 类似的数据存储功能
- 工作电压范围：1.6V 至 5.5V

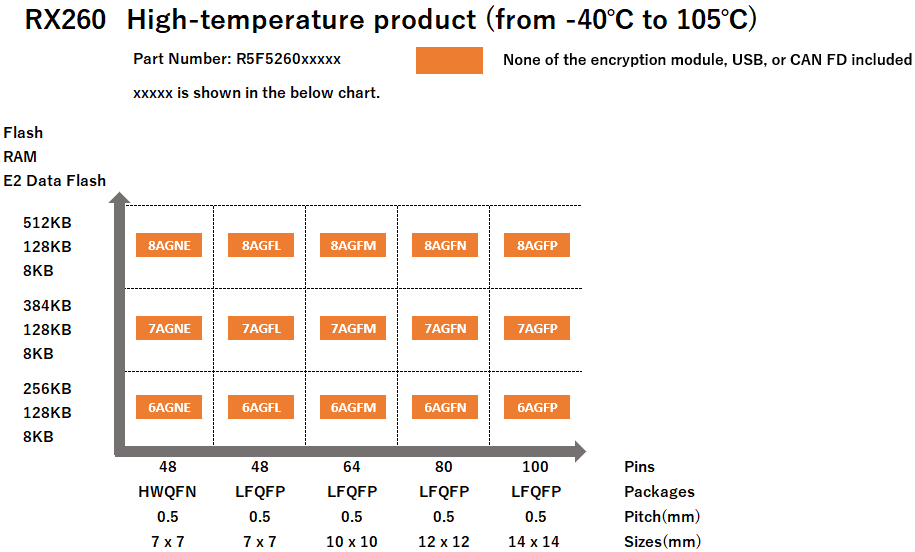

- 工作温度范围：-40°C 至 85°C 或 -40°C 至 105°C
- 高速片上振荡器，精度 +/- 1.0%
- 电容式触摸传感单元 (CTSU2SL)
- 安全保护（闪存保护）
- UART、SPI、I2C
- 16 位/32 位通用 PWM 定时器, 16 位低功耗定时器, 16 位比较匹配定时器, 8 位定时器, RTC
- 12 位 A/D 转换器,8 位 D/A 转换器,比较器,温度传感器

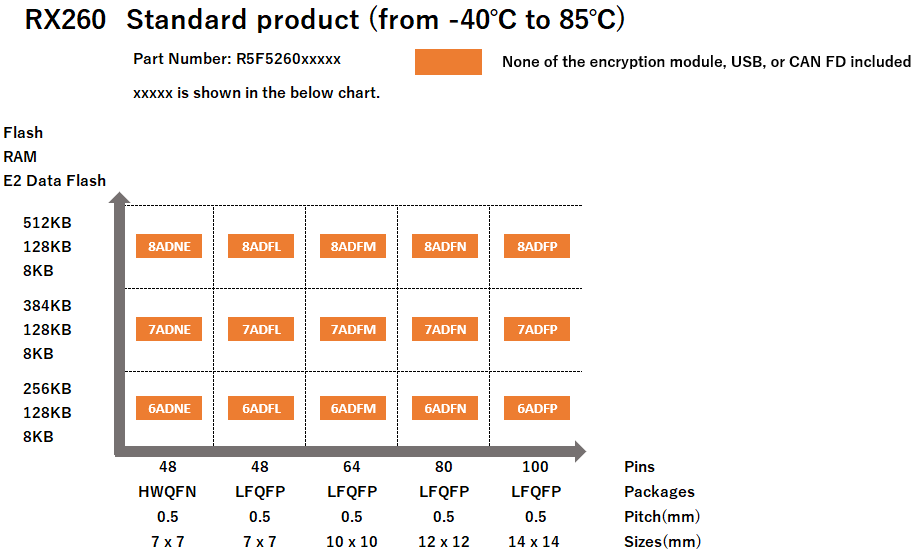

- 48 至 100 引脚的封装选项（LFQFP、HWQFN）
产品对比
应用
- 消费电子产品
- 建筑自动化
- 工业自动化
- 医疗与保健
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| RI600V4 Real-time OS for RX Family μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.
|
ITRON OS | 瑞萨电子 |
| RI600PX Real-time OS for RX Family μITRON4.0/PX Specification real-time OS for RX Family [Required IDE : CS+] * RI600PX is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600PX are requested to contact our regional marketing departments for details.
|
ITRON OS | 瑞萨电子 |
| e² studio - Information for the RX Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | 瑞萨电子 |
| C/C++ Compiler Package for RX Family [CC-RX] C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
|
Compiler/Assembler | 瑞萨电子 |
| RX Smart Configurator RX Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
|
Solution Toolkit | 瑞萨电子 |
| QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors In developing embedded system using the capacitive touch sensor of MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RL78, RX, Renesas Synergy™]
|
Solution Toolkit | 瑞萨电子 |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| CS+ 瑞萨电子集成开发环境（IDE）[支持 MCU/MPU：RH850、V850、RX、RL78、78K0R、78K0]
（注意：CS+ 通常不会向美国和欧洲客户推广。
（注意：要在 CS+ 上对 RL78/G23 和 RX 系列 MCU 使用智能配置器，请为每个 MCU 系列安装智能配置器，从“设计和支持”>“开发工具”>“智能配置器”下载）
|
IDE and Coding Tool | 瑞萨电子 |
| CS+ Partner OS Aware Debugging Plug-in Features for task level debugging of real-time OS applications [Plugin for Renesas IDE CS+] [Support MCU/MPU: RX, RL78]
|
Plug-in, OS Aware Debugging, Etc. | 瑞萨电子 |
| Simulator for CS+ of RX Family Simulator for CS+ of RX Family [Support IDE : CS+] (Note: This product is included in Compiler Package and is not available separately.)
|
Simulator | 瑞萨电子 |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | 瑞萨电子 |
| Renesas Flash Programmer (Programming GUI) 闪存编程软件【支持 MCU/MPU 和设备：RA、RE、RX、RL78、RH850、RISC-V MCU Renesas Synergy、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、Renesas USB Power Delivery 系列、电机驱动器/执行器驱动器 IC、V850、78K0R、78K0】
|
Programmer (Unit/SW) | 瑞萨电子 |
| External Flash Definition Editor Utility for downloading data to external flash memory (for emulators)
|
Other Emulators and Options | 瑞萨电子 |
| Simulator for e² studio of RX Family Simulator for e² studio of RX Family [Support IDE : e² studio] (Note: This product is included in the Renesas IDE "e² studio" and is not available separately.)
|
Simulator | 瑞萨电子 |
| DSP Library for RX Family Software library that implements numeric operation function used in DSP with general purpose MCU
|
DSP / FFT | 瑞萨电子 |
| RX Driver Package Device driver set for the RX Family (including major middleware). Target devices : RX130, RX23W, RX231, RX24U, RX64M, RX65N, RX66T, RX71M, RX72M etc.
|
Software Package | 瑞萨电子 |
| e² studio Partner OS Aware Debugging Standard debugger in e2 studio for supporting task level debugging of real-time OS applications.
|
Plug-in, OS Aware Debugging, Etc. | 瑞萨电子 |
| RX Family Renesas FreeRTOS FreeRTOS™ software platform for RX MCUs that makes it easy to create applications using FreeRTOS™ with Firmware Integration Technology (FIT).
|
FreeRTOS | 瑞萨电子 |
| FAT File System [M3S-TFAT-Tiny] for the RX Family FAT file system for RX Family
|
File System | 瑞萨电子 |
| Sound Playback/Compression System [M3S-S2-Tiny] for RX Family Sound playback system for RX Family
|
Sound / Voice | 瑞萨电子 |
| M3S-DATFRX Data Flash Driver for RX Family
|
On-chip Flash Memory | 瑞萨电子 |
| JPEG Encode/Decode Software Library for RX Family JPEG Encode/Decode Software Library that comprises the JPEG Decoder and the JPEG Encoder
|
Imaging | 瑞萨电子 |
| SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory
|
Serial Memory | 瑞萨电子 |
| SPI Serial EEPROM Driver Device Drivers for SPI Bus Serial EEPROM R1EX25xxx Series and HN58X25xxx Series
|
Serial Memory | 瑞萨电子 |
| Crypto Library Robust encode library to ensure security for all types of system developments
|
Security / Crypto | 瑞萨电子 |
| Sub-GHz/Wi-SUN Protocol Stack Software stack for Sub-GHz/Wi-SUN wireless network applications
|
Protocol Stack | 瑞萨电子 |
| Reality AI Utilities 瑞萨电子 e² studio 插件模块
|
Solution Toolkit | 瑞萨电子 |
| I²C Serial EEPROM Driver Device Drivers for I²C Bus Serial EEPROM R1EX24xxx Series, R1EV24xxx Series and HN58X24xxx Series
|
Serial Memory | 瑞萨电子 |
|
29 items
|
||
样例程序
开发板与套件
RX261 MCU 系列评估套件
EK-RX261 是 RX261 MCU 的评估套件，是一款评估 RX261 MCU 的高效工具。 该套件配备评测所需的各种硬件和软件，开箱即用。
EK-RX261 支持调试 RX261 的主要功能。 此外，它还可快速连接至各种扩展板，便于扩展电路功能。
该板配有：
-
...
RX261 电容式触摸评估系统
RX261 电容式触摸评估系统使用户能够轻松评估瑞萨电子提供的触摸解决方案。 您可以使用套件中的电路板和软件即刻开始评估，开箱即用。
产品配置
- RX261 CPU 板
- 触摸应用板
- 内置电容式触摸的自电容式评估板基础知识：开关、滑块和滚轮
模型
ECAD 模块
点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。点击产品选项表中的产品，查找 SamacSys 中的原理图符号、PCB 足迹和 3D CAD 模型。
产品选项
当前筛选条件
视频和培训
Getting Started with EK-RX261
This video provides an overview of the RX261 and demonstrates how to quickly set up and get started with the EK-RX261. The EK-RX261 offers a robust ecosystem, enabling the development of prototypes across a wide range of applications using the RX261. To learn more, visit the EK-RX261 page.
Chapter's Title
00:00 Opening
00:10 An overview of RX261
01:27 An overview of EK-RX261
03:09 How to get started with QSEP
