Renesas Starter Kit+ for RX65N-2MB
The Renesas Starter Kit+ for RX65N-2MB is the perfect starter kit for developers who are new to the RX65N (Code Flash 2MB, Pin Count 176-pin). The kit includes an LCD...
概览
简介
RX65N 系列 32 位通用微控制器非常适用于需要增强安全性、连接功能和 HMI 的物联网设备。RX65N 系列微控制器内置大容量闪存和 RAM，具有多种封装，可用于各种应用。

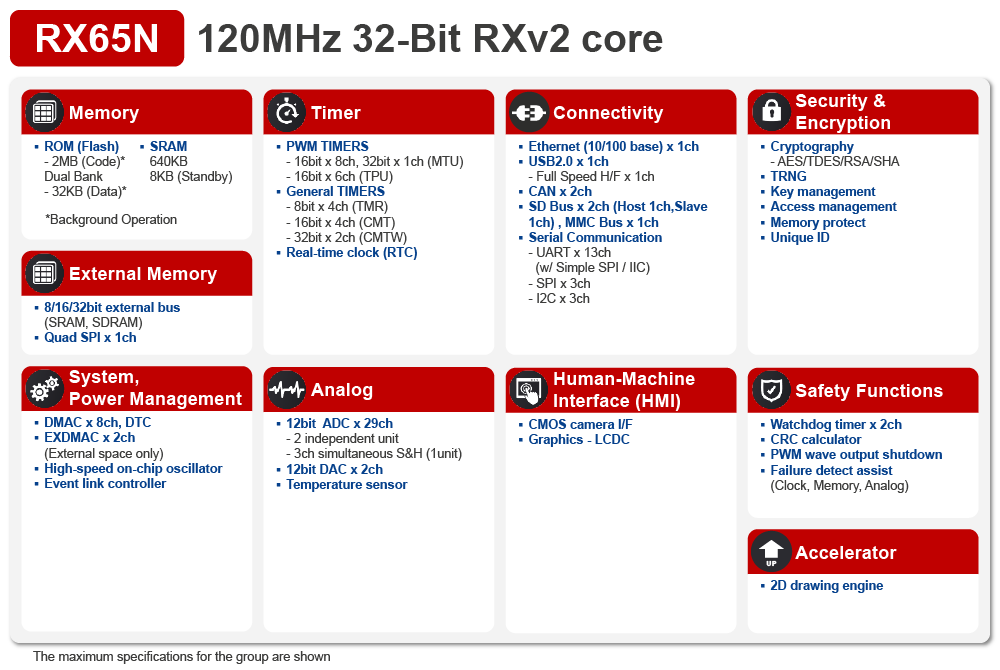

特性
- RXv2 内核 120 MHz 工作频率 (34 CoreMark/mA)
- 2.7 至 3.6 V 工作电压
- 多种封装类型：100引脚至176引脚
- 配备各种通信接口，比如以太网、USB、CAN、SD 主机接口和四通道 SPI。
- 最大2MB程序闪存，640KB SRAM
- DualBank Flash 使得固件更新更方便 *1
- HMI
- TFT-LCD 控制器和 2D 图形引擎可以减少 LCD 显示时的 CPU 负载。*1
安全
- 通过NIST的 FIPS140-2 三级CMVP认证 *1
- 配备TSIP，防止关键数据泄露 *1
- 配备各种加密引擎：AES、TRNG、TDES *1、RSA*1、ECC *1、SHA*1
- 配备内存保护功能，可以防止非法访问闪存
*1：仅限代码闪存大小为 1.5 MB 或以上的产品
NIST: 美国国家标准与技术研究院
FIPS: 联邦信息处理标准
CMVP: 加密模块验证程序

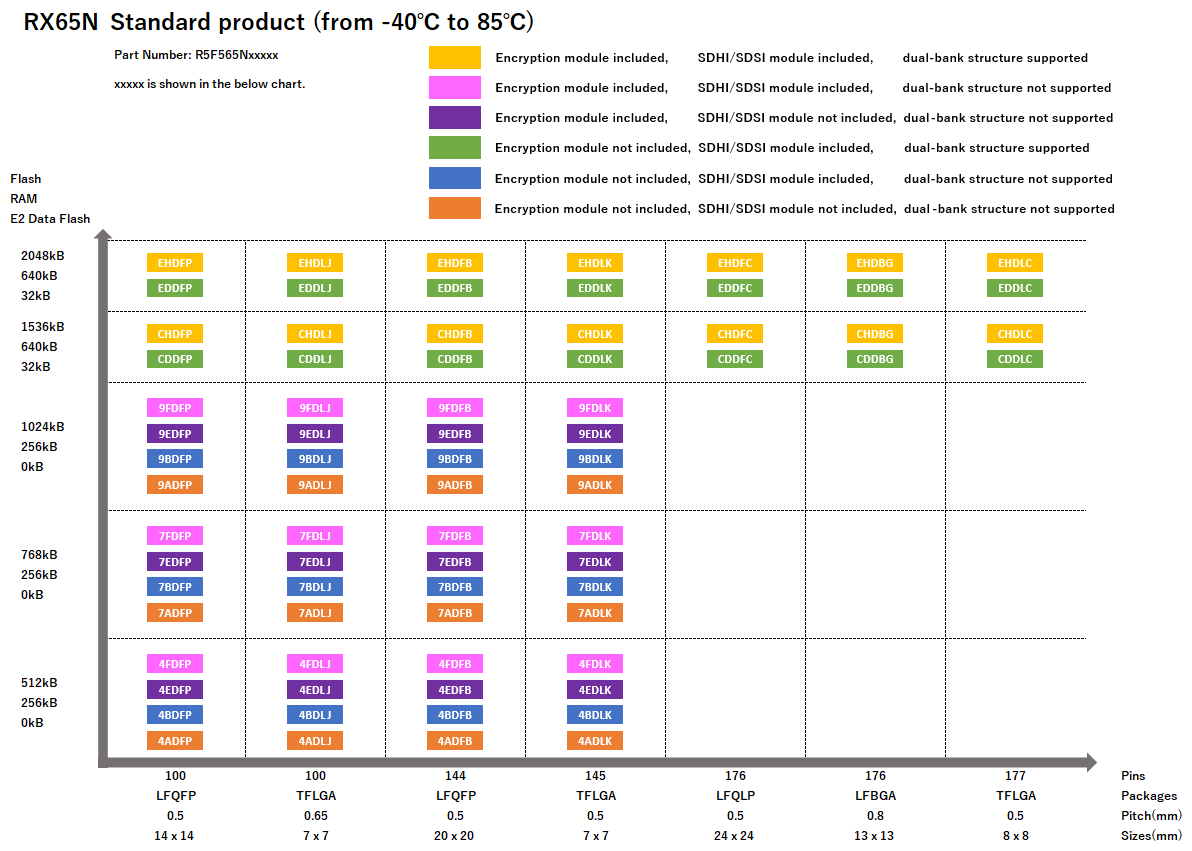

产品对比
应用
设计和开发
软件与工具
软件与工具
| Software title
|
Software type
|
公司
|
|---|---|---|
| FAT File System [M3S-TFAT-Tiny] for the RX Family FAT file system for RX Family
|
File System | 瑞萨电子 |
| RI600PX Real-time OS for RX Family μITRON4.0/PX Specification real-time OS for RX Family [Required IDE : CS+] * RI600PX is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600PX are requested to contact our regional marketing departments for details.
|
ITRON OS | 瑞萨电子 |
| RI600V4 Real-time OS for RX Family μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.
|
ITRON OS | 瑞萨电子 |
| MultiMediaCard / eMMC Driver for RX Family Device driver for controlling MultimediaCard using MultimediaCard Interface (MMCIF) built-in the MCU
|
eMMC | 瑞萨电子 |
| TCP/IP protocol stack [M3S-T4-Tiny] for RX Family Ultracompact TCP/IP protocol stack (high-speed version) for RX
|
Protocol Stack | 瑞萨电子 |
| SD Card Driver for RX Family SD Card Driver for RX Family (SDHI)
|
SD Card | 瑞萨电子 |
| Trusted Secure IP Driver Trusted Secure IP driver software: this software supports AES with 128- and 256-bit keys), AES-GCM, AES-CMAC, and random number generation. Safely executes AES key management, secure updating of firmware, and secure booting at high speeds.
|
Security / Crypto | 瑞萨电子 |
| RX Driver Package Device driver set for the RX Family (including major middleware). Target devices : RX130, RX23W, RX231, RX24U, RX64M, RX65N, RX66T, RX71M, RX72M etc.
|
Software Package | 瑞萨电子 |
| Sound Playback/Compression System [M3S-S2-Tiny] for RX Family Sound playback system for RX Family
|
Sound / Voice | 瑞萨电子 |
| C/C++ Compiler Package for RX Family [CC-RX] C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
|
Compiler/Assembler | 瑞萨电子 |
| QE for TCP/IP: A Dedicated Tool for TCP/IP Development [Technical Preview Edition] Debugging assistance tool for developing systems which use the TCP/IP. For use in developing embedded systems which use the M3S-T4-Tiny communications protocol software library for the RX family. [Plugin for Renesas IDE "e² studio"]
|
Solution Toolkit | 瑞萨电子 |
| QE for UART: A Dedicated Tool for UART [Technical Preview Edition] Debugging assistance tool for developing systems which use the UART communication function. [Plugin for Renesas IDE "e² studio"]
|
Solution Toolkit | 瑞萨电子 |
| RX Family Renesas FreeRTOS FreeRTOS™ software platform for RX MCUs that makes it easy to create applications using FreeRTOS™ with Firmware Integration Technology (FIT).
|
FreeRTOS | 瑞萨电子 |
| USB Drivers Device drivers for USB communication using USB interface with built-in microcomputer and USB ASSP
|
USB | 瑞萨电子 |
| Code Generator Plug-in Automatic driver generation tool for internal peripheral I/O modules through GUI settings [Standard features for Renesas IDE "e² studio" and CS+] [Support MCU/MPU: RL78, V850, 78K, RX]
|
Code Generator | 瑞萨电子 |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| E20 emulator [R0E000200KCT00] On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E2 Emulator Lite. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C]
|
Emulator | 瑞萨电子 |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | 瑞萨电子 |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | 瑞萨电子 |
| Renesas Flash Programmer (Programming GUI) 闪存编程软件【支持 MCU/MPU 和设备：RA、RE、RX、RL78、RH850、RISC-V MCU Renesas Synergy、DA1453x、DA1459x、DA1469x、DA1470x、电源管理、Renesas USB Power Delivery 系列、电机驱动器/执行器驱动器 IC、V850、78K0R、78K0】
|
Programmer (Unit/SW) | 瑞萨电子 |
| QE for USB: A Dedicated Tool for USB [Technical Preview Edition] Debugging assistance tool for developing systems which use the USB [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RX, RL78]
|
Solution Toolkit | 瑞萨电子 |
| DALI Master Controller GUI The DALI Master Controller GUI controls an RL78/I1A lighting communication master evaluation board
|
Code Generator | 瑞萨电子 |
| CS+ 瑞萨电子集成开发环境（IDE）[支持 MCU/MPU：RH850、V850、RX、RL78、78K0R、78K0]
（注意：CS+ 通常不会向美国和欧洲客户推广。
（注意：要在 CS+ 上对 RL78/G23 和 RX 系列 MCU 使用智能配置器，请为每个 MCU 系列安装智能配置器，从“设计和支持”>“开发工具”>“智能配置器”下载）
|
IDE and Coding Tool | 瑞萨电子 |
| DSP Library for RX Family Software library that implements numeric operation function used in DSP with general purpose MCU
|
DSP / FFT | 瑞萨电子 |
| Sensor Software Modules for Renesas MCU Platforms Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
|
Sensor | 瑞萨电子 |
| QE for OTA: Development Assistance for Cloud QE for OTA is a development assistance tool that enables easy trial of over-the-air (OTA) firmware updates using cloud services. [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RX, RL78, RA] [Support clouds service: Amazon Web Services (AWS), Microsoft Azure]
|
Solution Toolkit | 瑞萨电子 |
| RX Smart Configurator RX Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
|
Solution Toolkit | 瑞萨电子 |
| Security Key Management Tool Key wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys.
|
Solution Toolkit | 瑞萨电子 |
| e² studio - Information for the RX Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | 瑞萨电子 |
| Sub-GHz/Wi-SUN Protocol Stack Software stack for Sub-GHz/Wi-SUN wireless network applications
|
Protocol Stack | 瑞萨电子 |
| EZ-CUBE3 EZ-CUBE3（CYRCNEZCUBE03）是具有Flash存储器编程功能的片上调试仿真器，可以用于调试MCU程序或将程序烧写到MCU的内置Flash中。
|
Emulator | 瑞萨电子 |
| QE for Display: Development Assistance Tool for Display Applications This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Standalone Version] [Support MCU/MPU:RZ, RX, RA]
|
Solution Toolkit | 瑞萨电子 |
| Renesas IAR Embedded Workbench Device-Support-Packages Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
|
IDE and Coding Tool | 瑞萨电子 |
| Crypto Library Robust encode library to ensure security for all types of system developments
|
Security / Crypto | 瑞萨电子 |
| SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory
|
Serial Memory | 瑞萨电子 |
| Reality AI Utilities 瑞萨电子 e² studio 插件模块
|
Solution Toolkit | 瑞萨电子 |
| I²C Serial EEPROM Driver Device Drivers for I²C Bus Serial EEPROM R1EX24xxx Series, R1EV24xxx Series and HN58X24xxx Series
|
Serial Memory | 瑞萨电子 |
| SPI Serial EEPROM Driver Device Drivers for SPI Bus Serial EEPROM R1EX25xxx Series and HN58X25xxx Series
|
Serial Memory | 瑞萨电子 |
| Firmware Update module By using the firmware update module, users can easily incorporate firmware update functionality and secure boot functionality into their applications.
|
Security / Crypto | 瑞萨电子 |
| JPEG Encode/Decode Library All-Software JPEG Software Library All-Software JPEG Software Library that comprises the JPEG Decoder and the JPEG Encoder
|
Imaging | 瑞萨电子 |
|
40 items
|
||
样例程序
开发板与套件
Target Board for RX65N
The Target Board for RX65N provides an entry point to evaluation, prototyping and developing for the RX65N MCU. Moreover, since this board incorporates an emulator...
Cloud Kit Based on RX65N MCU Group
The CK-RX65N cloud kit enables users to securely connect to the cloud and explore the features of the Renesas RXv2 core based RX65N MCU Group and cloud services.
With...
RX65N Envision Kit
The Envision Kit allows quick and easy evaluation of the RX65N microcontrollers group, which is an excellent choice for your next low cost HMI (Human Machine Interface)...
R9A06G062GNP 符合FCC 标准的Sub-GHz 无线通信评估套件
此产品为符合北美FCC 标准的Sub-GHz 无线通信评估套件，其中包含一个瑞萨Sub-GHz/Wi-SUN 收发器(R9A06G062GNP) 和一个瑞萨RX65N 微控制器。 瑞萨可以支持具有 OFDM 和 FSK 调制、多跳通信和网状网络拓扑的 Wi-SUN FAN1.1。 其适用于智能电表、智能城市、数字标牌、监控系统等用途...
R9A06G062GNP 符合CE/UKCA 标准的Sub-GHz 无线通信评估套件
此产品为符合欧洲CE 标准的Sub-GHz 无线通信评估套件，其中包含一个瑞萨Sub-GHz 无线连接IC (R9A06G062GNP) 和一个瑞萨RX65N 微控制器。 瑞萨可以支持具有 FSK 和 OFDM 调制、多跳通信和网状网络拓扑的 Wi-SUN FAN1.1。 其适用于智能电表、智能城市、数字标牌、监控系统等用途。
R9A06G062GNP 符合日本无线电法规的Sub-GHz 无线通信评估套件
此产品为符合日本无线电法规的Sub-GHz 无线通信评估套件，其中包含一个瑞萨Sub-GHz 无线连接IC (R9A06G062GNP) 和一个瑞萨RX65N 微控制器。 瑞萨可以支持具有 FSK 和 OFDM 调制、多跳通信和网状网络拓扑的 Wi-SUN FAN1.1。 其适用于智能电表、智能城市、数字标牌、监控系统等用途。
Renesas Starter Kit+ for RX65N-1MB (Discontinued product)
The Renesas Starter Kit+ for RX65N is the perfect starter kit for developers who are new to the RX65N. The kit includes an LCD display module, on-chip debugging...
Renesas RX65N Cloud Kit
The Renesas RX65N Cloud Kit is an RX65N microcontroller-based cloud communications evaluation kit which is an ideal evaluation environment for IoT device developers....
DALI-2 照明系统解决方案演示套件
TESSERA TECHNOLOGY 的数字可寻址照明接口（DALI）照明控制解决方案为 DALI 照明设备开发提供一站式服务。 提供支持瑞萨电子 RX 32 位微控制器（MCU）的各种开发工具。 TCM-RX65N-OP1 是符合 DALI-2 标准的选件板，可为瑞萨 RX65N 云套件添加 DALI 通信功能。...
可在云上实验室使用
使用我们基于 PC 的 GUI，无需物理板即可在虚拟实验室中立即开始配置和测试设计
模型
ECAD 模块
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
Longevity |
Carrier Type |
Program Memory (KB) |
Data Flash (KB) |
RAM (KB) |
Lead Count (#) |
Pkg. Type |
Pitch (mm) |
Pkg. Dimensions (mm) |
I/O Ports |
External Memory Bus (bit) |
DRAM I/F |
Temp. Range |
Ethernet speed |
SCI or UART (ch) |
SPI (ch) |
I2C (#) |
SDHI (ch) |
PWM Output (pin#) |
12-Bit A/D Converter (ch) |
12-Bit D/A Converter (ch) |
Graphics LCD Controller |
Camera I/F (Parallel) |
2D Drawing Engine |
Security & Encryption |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
购买 / 样片 |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 器件号 | ||||||||||||||||||||||||||||
| N/A | Tray | 768 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +85°C | 10M/100M | 11 | 14 | 13 | 1 | 38 | 22 | 1 | No | No | 否 | No | 3 | 4.9444 | ||
| 2033 Dec | Tray | 768 | 0 | 256 | 100 | TFLGA | 0.65 | 7 x 7 x 1.05 | 79 | 8,16 | No | Ta = -40 to +85°C | 10M/100M | 11 | 14 | 13 | 1 | 38 | 22 | 1 | No | No | 否 | No | 3 | 4.97273 | ||
| 2033 Dec | Tray | 768 | 0 | 256 | 145 | TFLGA | 0.5 | 7 x 7 x 1.05 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 15 | 1 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | |||
| N/A | Tray | 768 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 15 | 0 | 39 | 29 | 2 | No | 8-bit | 否 | AES, TRNG | 3 | 5.74071 | ||
| 2033 Dec | Tray | 768 | 0 | 256 | 100 | TFLGA | 0.65 | 7 x 7 x 1.05 | 79 | 8,16 | No | Ta = -40 to +85°C | 10M/100M | 11 | 14 | 13 | 0 | 38 | 22 | 1 | No | No | 否 | AES, TRNG | 3 | 5.02679 | ||
| 2033 Dec | Tray | 768 | 0 | 256 | 100 | TFLGA | 0.65 | 7 x 7 x 1.05 | 79 | 8,16 | No | Ta = -40 to +85°C | 10M/100M | 11 | 14 | 13 | 1 | 38 | 22 | 1 | No | No | 否 | AES, TRNG | 3 | 5.13487 | ||
| 2033 Dec | Tray | 768 | 0 | 256 | 145 | TFLGA | 0.5 | 7 x 7 x 1.05 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 15 | 1 | 39 | 29 | 2 | No | 8-bit | 否 | AES, TRNG | 3 | 5.58029 | ||
| N/A | Tray | 1024 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 15 | 0 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 5.44709 | ||
| N/A | Tray | 1024 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +85°C | 10M/100M | 11 | 14 | 13 | 0 | 38 | 22 | 1 | No | No | 否 | No | 3 | |||
| 2034 Dec | Tray | 1024 | 0 | 256 | 100 | TFLGA | 0.65 | 7 x 7 x 1.05 | 79 | 8,16 | No | Ta = -40 to +85°C | 10M/100M | 11 | 14 | 13 | 0 | 38 | 22 | 1 | No | No | 否 | No | 3 | 5.1555 | ||
| 2034 Dec | Tray | 1024 | 0 | 256 | 145 | TFLGA | 0.5 | 7 x 7 x 1.05 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 15 | 0 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 5.4724 | ||
| N/A | Tray | 1024 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | 10M/100M | 11 | 14 | 13 | 0 | 38 | 22 | 1 | No | No | 否 | AES, TRNG | 3 | 5.81849 | ||
| N/A | Tray | 768 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +105°C | 10M/100M | 13 | 16 | 15 | 0 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 5.94995 | ||
| 2034 Dec | Tray | 2048 | 32 | 640 | 145 | TFLGA | 0.5 | 7 x 7 x 1.05 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 16 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | No | 3 | 7.33978 | ||
| N/A | Tray | 1536 | 32 | 640 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 16 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | No | 3 | 6.80174 | ||
| 2033 Dec | Tray | 1536 | 32 | 640 | 177 | TFLGA | 0.5 | 8 x 8 x 1.05 | 137 | 8,16,32 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 16 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 3 | 7.45776 | ||
| 2034 Dec | Tray | 2048 | 32 | 640 | 100 | TFLGA | 0.65 | 7 x 7 x 1.05 | 79 | 8,16 | No | Ta = -40 to +85°C | 10M/100M | 11 | 14 | 14 | 1 | 38 | 22 | 1 | Yes | No | 是 | No | 3 | 6.1125 | ||
| N/A | Tray | 768 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | 10M/100M | 11 | 14 | 13 | 1 | 38 | 22 | 1 | No | No | 否 | AES, TRNG | 3 | 5.76429 | ||
| 2034 Dec | Tray | 1536 | 32 | 640 | 176 | LFBGA | 0.8 | 13 x 13 x 1.4 | 137 | 8,16,32 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 16 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | No | 3 | 6.675 | Get Samples, | |
| 2033 Dec | Tray | 1536 | 32 | 640 | 145 | TFLGA | 0.5 | 7 x 7 x 1.05 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 16 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | No | 3 | 6.83206 | ||
| 2033 Dec | Tray | 1536 | 32 | 640 | 145 | TFLGA | 0.5 | 7 x 7 x 1.05 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 16 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 3 | 7.33978 | ||
| 2033 Dec | Tray | 1536 | 32 | 640 | 100 | TFLGA | 0.65 | 7 x 7 x 1.05 | 79 | 8,16 | No | Ta = -40 to +85°C | 10M/100M | 11 | 14 | 14 | 1 | 38 | 22 | 1 | Yes | No | 是 | No | 3 | 5.8 | ||
| 2033 Dec | Tray | 1536 | 32 | 640 | 100 | TFLGA | 0.65 | 7 x 7 x 1.05 | 79 | 8,16 | No | Ta = -40 to +85°C | 10M/100M | 11 | 14 | 14 | 1 | 38 | 22 | 1 | Yes | No | 是 | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 3 | 6.72453 | ||
| N/A | Tray | 512 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | 10M/100M | 11 | 14 | 13 | 0 | 38 | 22 | 1 | No | No | 否 | AES, TRNG | 3 | |||
| N/A | Tray | 512 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +105°C | 10M/100M | 13 | 16 | 15 | 0 | 39 | 29 | 2 | No | 8-bit | 否 | AES, TRNG | 3 | 5.94995 | ||
| N/A | Tray | 768 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +105°C | 10M/100M | 13 | 16 | 15 | 0 | 39 | 29 | 2 | No | 8-bit | 否 | AES, TRNG | 3 | 6.126 | ||
| 2039 Dec | Tray | 1536 | 32 | 640 | 176 | LFQFP | 0.5 | 24 x 24 x 1.7 | 137 | 8,16,32 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 16 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 3 | 7.83646 | ||
| N/A | Tray | 512 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | 10M/100M | 11 | 14 | 13 | 0 | 38 | 22 | 1 | No | No | 否 | No | 3 | 5.27463 | ||
| N/A | Tray | 1024 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +105°C | 10M/100M | 13 | 16 | 15 | 0 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 6.126 | ||
| 2039 Dec | Tray | 2048 | 32 | 640 | 176 | LFQFP | 0.5 | 24 x 24 x 1.7 | 137 | 8,16,32 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 16 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 3 | 8.18421 | Get Samples, | |
| N/A | Tray | 2048 | 32 | 640 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 16 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 3 | 5.93058 | Get Samples, | |
| 2033 Dec | Tray | 2048 | 32 | 640 | 177 | TFLGA | 0.5 | 8 x 8 x 1.05 | 137 | 8,16,32 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 16 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 3 | 7.79176 | Get Samples, | |
| N/A | Tray | 512 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | 10M/100M | 11 | 14 | 13 | 1 | 38 | 22 | 1 | No | No | 否 | No | 3 | |||
| N/A | Tray | 768 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | 10M/100M | 11 | 14 | 13 | 0 | 38 | 22 | 1 | No | No | 否 | AES, TRNG | 3 | 5.64215 | ||
| 2033 Dec | Tray | 2048 | 32 | 640 | 177 | TFLGA | 0.5 | 8 x 8 x 1.05 | 137 | 8,16,32 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 16 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | No | 3 | 7.45776 | Get Samples, | |
| 2034 Dec | Tray | 2048 | 32 | 640 | 100 | TFLGA | 0.65 | 7 x 7 x 1.05 | 79 | 8,16 | No | Ta = -40 to +85°C | 10M/100M | 11 | 14 | 14 | 1 | 38 | 22 | 1 | Yes | No | 是 | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 3 | 7.06036 | Get Samples, | |
| N/A | Tray | 512 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | 10M/100M | 11 | 14 | 13 | 1 | 38 | 22 | 1 | No | No | 否 | AES, TRNG | 3 | |||
| 探讨中 | Tray | 1536 | 32 | 640 | 176 | LFQFP | 0.5 | 24 x 24 x 1.7 | 137 | 8,16,32 | SDRAM I/F | Ta = -40 to +105°C | 10M/100M | 13 | 16 | 16 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 3 | 7.96453 | ||
| N/A | Tray | 2048 | 32 | 640 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | 10M/100M | 11 | 14 | 14 | 1 | 38 | 22 | 1 | Yes | No | 是 | No | 3 | |||
| 探讨中 | Tray | 2048 | 32 | 640 | 176 | LFQFP | 0.5 | 24 x 24 x 1.7 | 137 | 8,16,32 | SDRAM I/F | Ta = -40 to +105°C | 10M/100M | 13 | 16 | 16 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | No | 3 | 7.96453 | ||
| N/A | Tray | 1024 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +105°C | 10M/100M | 13 | 16 | 15 | 1 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 6.23416 | ||
| 2033 Dec | Tray | 512 | 0 | 256 | 145 | TFLGA | 0.5 | 7 x 7 x 1.05 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 15 | 0 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 5.26587 | ||
| N/A | Tray | 512 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 15 | 1 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 5.23196 | ||
| N/A | Tray | 512 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +85°C | 10M/100M | 11 | 14 | 13 | 1 | 38 | 22 | 1 | No | No | 否 | No | 3 | 4.78291 | Get Samples, | |
| 2033 Dec | Tray | 512 | 0 | 256 | 100 | TFLGA | 0.65 | 7 x 7 x 1.05 | 79 | 8,16 | No | Ta = -40 to +85°C | 10M/100M | 11 | 14 | 13 | 1 | 38 | 22 | 1 | No | No | 否 | No | 3 | 4.81042 | ||
| 2033 Dec | Tray | 512 | 0 | 256 | 145 | TFLGA | 0.5 | 7 x 7 x 1.05 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 15 | 1 | 39 | 29 | 2 | No | 8-bit | 否 | No | 3 | 5.25643 | ||
| N/A | Tray | 512 | 0 | 256 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +85°C | 10M/100M | 13 | 16 | 15 | 0 | 39 | 29 | 2 | No | 8-bit | 否 | AES, TRNG | 3 | 5.28576 | ||
| 探讨中 | Tray | 2048 | 32 | 640 | 176 | LFQFP | 0.5 | 24 x 24 x 1.7 | 137 | 8,16,32 | SDRAM I/F | Ta = -40 to +105°C | 10M/100M | 13 | 16 | 16 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | 3DES, AES, ECC, MAC, MD5, RSA, SHA-1, SHA224/SHA256, TRNG | 3 | 7.6375 | Get Samples, | |
| N/A | Tray | 2048 | 32 | 640 | 144 | LFQFP | 0.5 | 20 x 20 x 1.7 | 112 | 8,16 | SDRAM I/F | Ta = -40 to +105°C | 10M/100M | 13 | 16 | 16 | 1 | 39 | 29 | 2 | Yes | 8-bit | 是 | No | 3 | 7.63074 | ||
| N/A | Tray | 768 | 0 | 256 | 100 | LFQFP | 0.5 | 14 x 14 x 1.7 | 79 | 8,16 | No | Ta = -40 to +105°C | 10M/100M | 11 | 14 | 13 | 1 | 38 | 22 | 1 | No | No | 否 | No | 3 | 5.57422 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
