RX65N-Cloud-Kit

有效

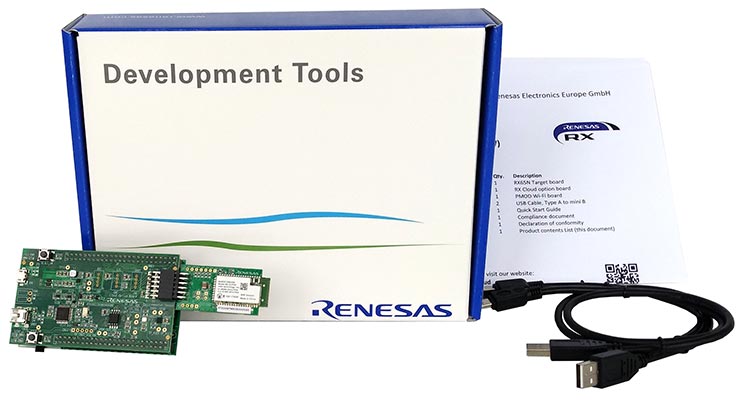

Renesas RX65N Cloud Kit

立即订购
Quick Start Guide for Pre-Installed Demo with the RX65N Cloud Kit
注意 - 建议使用以下设备作为替代品：
CK-RX65N - Cloud Kit Based on RX65N MCU Group
For developing IoT devices with the RX65N, it is recommended to use the latest evaluation kit CK-RX65N. CK-RX65N v1 supports LTE CAT-M1 and Ethernet, while CK-RX65N v2 supports Wi-Fi and Ethernet for cloud connectivity.

概览

The Renesas RX65N Cloud Kit is an RX65N microcontroller-based cloud communications evaluation kit which is an ideal evaluation environment for IoT device developers. You can easily provide Wi-Fi connectivity to Amazon Web Services (AWS) and Microsoft Azure (Azure) to help start developing IoT devices.

The kit includes a Wi-Fi communication module, a temperature and humidity sensor, an optical sensor, a 3-axis acceleration sensor, a USB port for serial communication, and a USB port for debugging. The sensor data that is uploaded to AWS and Azure from this kit can be observed on cloud services. In addition, the e2 studio integrated development environment has been enhanced for this kit. The network stack for FreeRTOS and Azure RTOS, the configuration of component libraries, and the generation of source code can be done within e2 studio.

The RX65N microcontroller included in this kit is a next-generation general-purpose MCU with a human machine interface (HMI) and security features that are ideal for IoT edge devices. The built-in dual-bank capability and trusted secure IP features make secure cloud communications and firmware updates both easy and robust.

*The "Renesas web dashboard" has been discontinued in 2022 because it can be replaced by AWS or Azure services.

Cloud Connectivity Sample Program

AWS Certified Program

Microsoft Certified Programs

Renesas RX65N Cloud Kit
Renesas RX65N Cloud Kit Dashboard

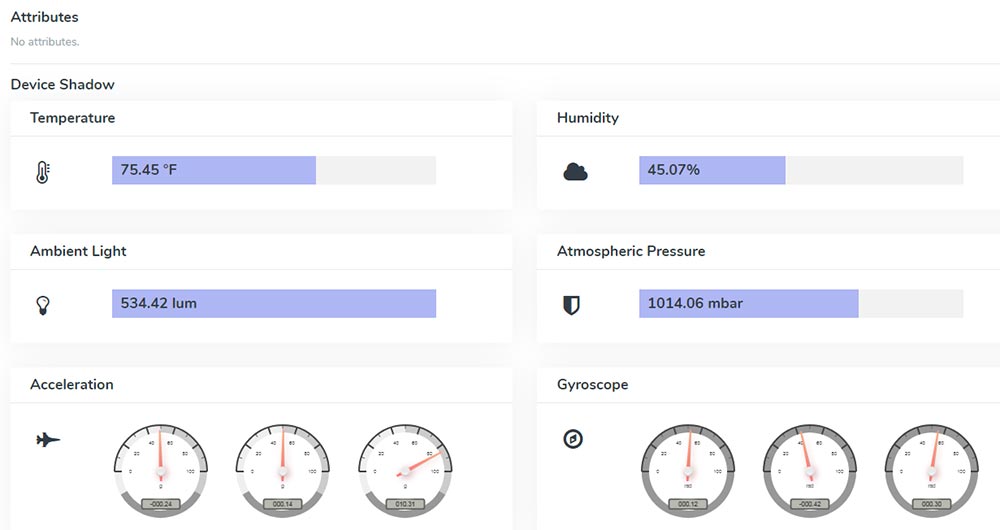

Renesas Dashboard
Renesas RX65N Cloud Kit
Renesas RX65N Cloud Kit Dashboard
Renesas Dashboard
  • Securely and reliably connect to cloud services
    • The Renesas RX65N Cloud Kit, combined with a real-time OS from cloud services has the following certifications:
      •  AWS FreeRTOS certification
      • Microsoft Azure RTOS certification
  • Assists in IoT device prototyping
    • Free editing and debugging sample programs for AWS and Azure communications.
    • Comprehend the behavior of the sample programs from the application notes.
  • Reduction in actual product development manhours
    • The sample programs are based on the real-time OS provided by cloud service. You can leverage the large ecosystem of existing tools that have been developed for FreeRTOS and Azure RTOS kernels.
    • You can easily program commonly needed IoT features to devices using the software library embedded in the real-time OS by cloud service.

Evaluate cloud communications using a variety of programs

  • Basic AWS communications program
    • Sends a "Hello World" text message to the AWS cloud at regular intervals
    • FreeRTOS certified
    • Communicates wirelessly using Wi-Fi
  • Program for uploading sensor and other data to the AWS cloud, and for observing the information in the dashboard
    • Sends data from its three on-board sensors to the AWS cloud at regular intervals
    • Allows for observation of the sensor data in the dashboard
  • Azure IoT plug and play certified programs
    • Connects to Azure Central without coding, and monitors sensor data in a dashboard
  • A program that uploads sensor data to Microsoft Azure, and then monitors it on Azure IoT Explorer's Telemetry
    • Send MCU temperature data to Azure Cloud at regular intervals
    • Monitor sensor data with Telemetry in Azure IoT Explorer
  • A variety of sample programs that can be utilized to develop IoT devices

文档

设计和开发

软件下载
类型 文档标题 日期
电路板信息文件
RX Cloud Kit for RX65N Board Description File
ZIP 1 KB
升级 - IDE
e² studio 2020-10 Linux Host (for RA,RZ)
登录后下载 ZIP 570.25 MB 日本語
升级 - IDE
e² studio 2020-10 installer for Windows
登录后下载 ZIP 1,616.95 MB 日本語
升级 - IDE
e² studio 2020-04 installer (Offline installer)
登录后下载 ZIP 1,264.29 MB 日本語
升级 - 编译器
RX Compiler CC-RX V3.02.00 for e² studio
登录后下载 ZIP 22.40 MB 日本語
5 items
DALI-2 Lighting System Solution Reference Design Board

TCM-RX65N-OP1

Demonstration
了解更多

DALI-2 照明系统解决方案演示套件

TESSERA TECHNOLOGY 的数字可寻址照明接口（DALI）照明控制解决方案为 DALI 照明设备开发提供一站式服务。 提供支持瑞萨电子 RX 32 位微控制器（MCU）的各种开发工具。 TCM-RX65N-OP1 是符合 DALI-2 标准的选件板，可为瑞萨 RX65N 云套件添加 DALI 通信功能。...

可在云上实验室使用
使用我们基于 PC 的 GUI，无需物理板即可在虚拟实验室中立即开始配置和测试设计
启动云上实验室

产品选项

当前筛选条件

视频和培训

Azure RTOS Tutorial (1/3) RX65N Cloud Kit: Development Environment Setup

This video shows you how to make Microsoft's Azure RTOS work on the RX65N Cloud Kit.
This is a tutorial on how to connect the RX65N Cloud Kit to the Azure IoT Hub and display the sensor data.
This video is the development environment setup section. It shows where to download and install the development environment used in this tutorial.

The tools shown in this video can be downloaded from the links below.

* Next video.

The application note shown in this video can be downloaded here: RX65N Group Visualization of Sensor Data using RX65N Cloud Kit and Azure RTOS Rev.1.00 (PDF | English, 日本語)

Video List
Azure RTOS Tutorial (1/3) RX65N Cloud Kit: Development Environment Setup
Azure RTOS Tutorial (2/3) RX65N Cloud Kit: Set up the Program
Azure RTOS Tutorial (3/3) RX65N Cloud Kit: Operate Azure Cloud
Getting Started with Renesas RX65N Cloud Kit
Renesas RX65N Cloud Kit Setup Guide
