RZ/G 软件包

For RZ MPUs, we provide the following Linux software solutions. Please select the solution that best fits your intended use.

Yocto Based Linux Solution

  • Linux BSP Plus: For experts who want to start development with the latest LTS kernel
  • VLP: For users who require super long-term Linux kernel maintenance
  • SDK: For Linux beginners who want to start application software development quickly
 Linux BSP PlusVLPSDK
Target UsersExpertExpertBeginner
Kernel Support Term2 years10 years10 years
Kernel UpdateEvery yearEvery 2 yearsEvery 2 years
Yocto UpdateEvery 2 yearsNo*No*
Verification LevelLowHighHigh
Maintenance CycleNone6 months6 months
Release Status2025/JunAvailableAvailable

*Current situation

Ubuntu/Debian Solution

  • The Ubuntu/Debian solution consists of Ubuntu/Debian software and Renesas software and allows users to build an Ubuntu/Debian environment using scripts.

AOSP Package

  • We provide a BSP (including GPU and codec support) for running the Android™ Open Source Project (AOSP).

For an overview of the entire RZ solution, please refer to Renesas RZ Linux Solutions (GitHub).


Linux BSP Plus (Support LTS Kernel)

This solution is a BSP that supports the latest LTS kernel and Yocto Project. It also includes middleware optimized for various target applications of the RZ MPU series. For more details about this solution, please visit Renesas RZ Linux BSP Plus (GitHub).

图像

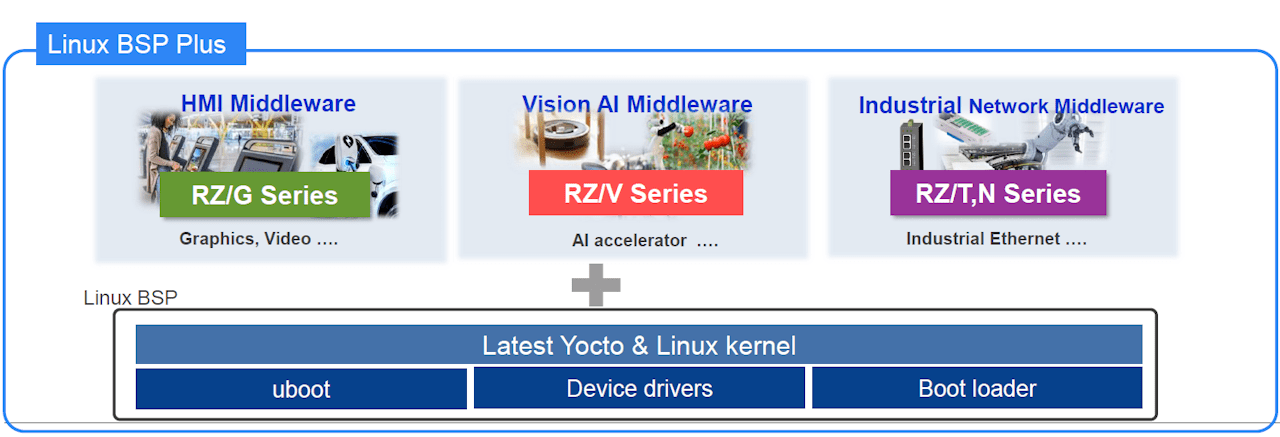

Linux BSP Plus

经验证的 Linux 软件包

瑞萨电子提供的 Linux 软件包包含工业领域所需的基本软件, 该软件包基于产品的规格书进行了验证。

客户可以使用稳定的Linux+基本软件立即开始开发应用程序。

传统上,半导体制造商提供的软件未能实行系统的维护。但是,瑞萨电子提供的Linux 软件包, 已经过验证并提供系统维护。大大降低了嵌入式系统设计所固有的软件开发负担。

经验证的 Linux 软件包主要功能:

  • 民用基础设施平台(CIP™)的超级长期支持
    • 支持最新内核额外功能 5 年
    • 超过 10 年的安全修补程序支持
    • 此外,瑞萨电子还独立开展活动, 扩大维修范围
  • 支持行业标准 API
  • 增强型标准软件组件,适用于工业和物联网应用
    • 提高了工业领域所需的可靠性、实时性能、安全性和功能安全性
  • 支持行业标准 API
  • 免费和简单的点击许可
  • 免费维护
图像

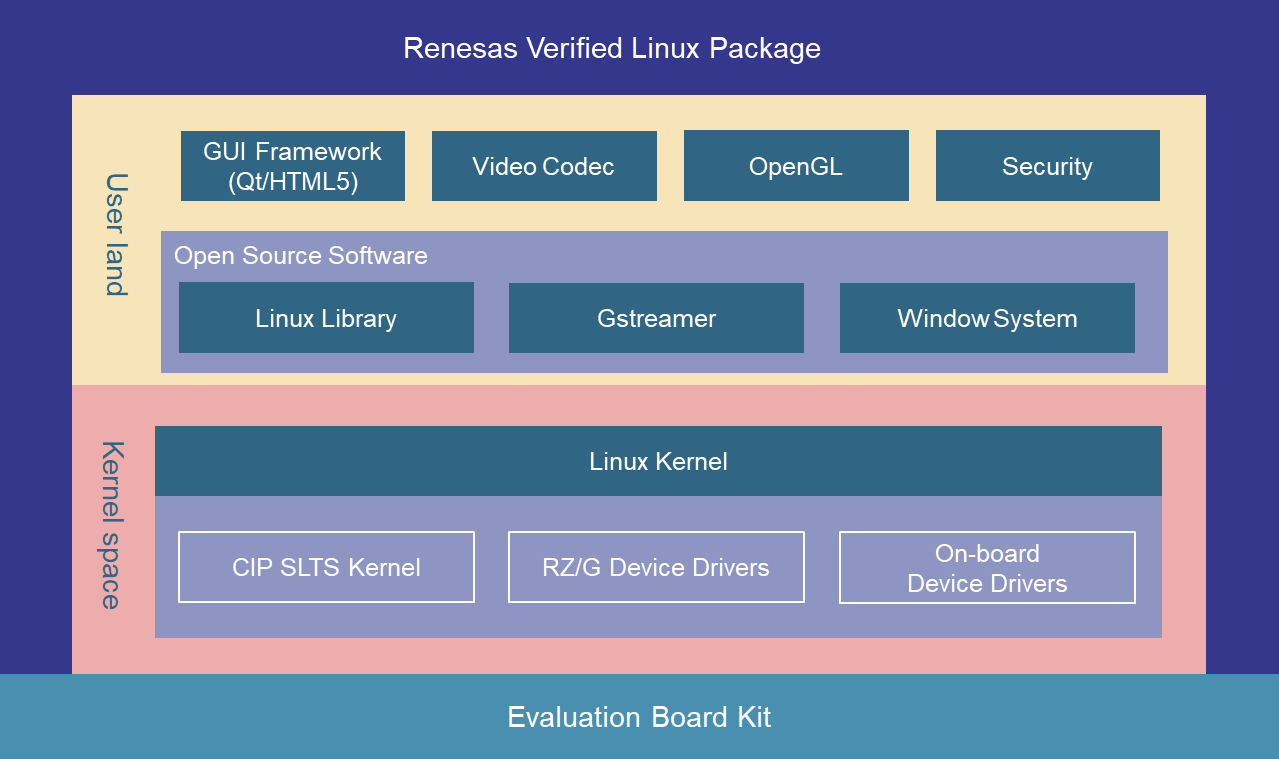

Renesas Verified Linux Package and Evaluation Board Kit

什么是民用基础设施平台 (CIP)?

民用基础设施平台旨在建立一个基础层,用于构建基于 linux 的嵌入式系统,以便满足现代民用基础设施的要求。它由 Linux Foundation 和全球领先的基础设施系统制造商推动。

授予许可

使用 RZ/G Linux 软件包需要与瑞萨电子签订用户协议(免费)。

商标

民用基础设施平台和 CIP 是 Linux Foundation 在美国和其他国家的商标。

Linux Package (VLP)

Renesas provides the basic software required for the industrial segment as the verified software package. Renesas also provides the multimedia package for installing H.264/H.265 Video codec and graphics (OpenGL ES) function into the RZ/G BSP (Board Support Package).
Please go to the page from the link that indicates the version of VLP in the table below, download the package and use it.

VLP VersionCIP Kernel VersionTarget DeviceVLP maintenance
end date*
RZ/G2L,
RZ/G2LC,
RZ/G2UL,
RZ/G3S
RZ/G2H,
RZ/G2M,
RZ/G2N,
RZ/G2E
RZ/G1H,
RZ/G1M,
RZ/G1N,
RZ/G1E,
RZ/G1C
VLP v46.1,
6.1-rt
check (RZ/G2UL and RZ/G3S will be added in Nov. 2025)--2033/2H
VLP v35.10,
5.10-rt
checkcheckcheck2031/1H
VLP644.19,
4.19-rt
-check-2029/1H
VLP v24.4,
4.4-rt
--check2027/1H

* Each VLP maintenance will be finished when the maintenance of corresponding CIP Linux Kernel version is completed.
   Use of the latest version VLP is recommended.
   Please refer to CIP Wiki for CIP Linux kernel maintenance periods.

Additional Packages for VLP

This software package runs on VLP.

HTML5 Package
HTML5 enables rich HMI development based on advanced Web technologies including JavaScript.

  • Chromium Package
  • This package provides additional Chromium functions (rendering engine: Blink).

  • Gecko Package
  • This package provides additional rendering engine Gecko.

Qt Framework Package

  • Qt6 Package
  • This package is for integrating Qt, a cross-platform GUI application development framework. (This package provides for VLP v4. VLP v3 includes Qt5.6.3 for VLP.)

RZ MPU Security Package

  • RZ MPU Security Package
  • This package is to add Security functions (Secure Boot, Trusted Execution Environment, Hardware Cryptographic IP, Secure Debug, Security Configurator) to RZ MPU.

RZ/G Multi-OS Package

  • RZ/G Multi-OS Package
  • This package is the software package consisting of RZ/G Flexible Software Package (FSP) as software package for Renesas MCU with Arm® Cortex-M Core and OpenAMP as standardization API of framework for interprocessor communication for developing multi OS solution.

RZ/G AI Board Support Package


RZ/G Linux HMI Software Development Kit

The RZ/G HMI Software Development Kit (HMI SDK) provides a Linux HMI application development environment for the RZ/G Evaluation Board Kit (EVK). The HMI SDK is a one-package solution that includes necessary software for developing HMI application programs, such as Verified Linux Package (VLP), graphics library, video codec library, and HMI framework/libraries.

Advantages of HMI SDK

  • Easy-to-Use
    The HMI SDK provides a quick and easy development environment, lowering the barrier to entry for beginners to Linux to using a Linux MPU.
    • As long as you create a bootable SD card by using an image file in the SDK and put the SDK card on the board, an HMI demo starts on Linux.
    • You can start developing your application program easily since the SDK provides an installer for a toolchain of cross-development. And some application programs that run on HMI SDK Linux are available on our GitHub.
  • Free of Charge
    All software in the HMI SDK is available for free.
    • The HMI SDK consists of open-source software and libraries from Renesas, and they are provided for free.
    • As long as you have a supported RZ/G series EVK, you can start developing your HMI application program using the SDK.
  • Ready-to-Use
    The HMI SDK provides following GUI framework and libraries that are appropriate for HMI.
    • LVGL (Light and Versatile Graphics Library), which is a lightweight, free, open-source embedded graphics library. It does not use the GPU in the application program.
    • Chromium, which is a free and browser-based framework for application programs with GPU.

Target

The HMI SDK covers the EVK for RZ/G2L, RZ/G2LC and RZ/G2UL. In addition, we plan to expand support to other RZ/G series EVKs in the future.

For more details about the HMI SDK, please see:
https://renesas-rz.github.io/rzg_hmi_sdk/latest/


AOSP-based Package

The software package based on Android™ Open Source Project (AOSP) is a collection of the board support package (BSP) to run AOSP on RZ/G, the GPU middleware for graphic acceleration and the middleware for hardware video codecs.

Android VersionTarget MPU
RZ/G2LRZ/G2ERZ/G2NRZ/G2MRZ/G2H
Android 11 checkcheckcheckcheck
Android 12check check
Android 13check check

To use the Software Package based on Android Open Source Project, please contact your local sales representative or distributor.

Android is a trademark of Google LLC.


Ubuntu/Debian Solution

Ubuntu and Debian are free, open-source Linux distributions widely used not only for desktops and servers, but also in embedded systems. This solution provides a guide on how to install Ubuntu/Debian on the RZ/G evaluation board kit, along with Renesas software and scripts to help you build a working Ubuntu/Debian environment.

Key Features

  • This solution provides information for building an Ubuntu/Debian evaluation environment. Ubuntu/Debian can be evaluated free of charge and without any licensing contracts on the RZ/G Evaluation Kit (EVK).
  • This solution provides a guide, Renesas-developed software, and scripts to help you build an Ubuntu/Debian environment with ease. The provided scripts simplify complex processes, making setup straightforward and efficient.

The Ubuntu/Debian environment built with this solution consists of both Ubuntu/Debian software and Renesas software. Additional software can be installed on the EVK as needed using the apt command.

Target Device

This solution currently supports the RZ/G2L Evaluation Kit (EVK). Support for additional EVKs in the RZ/G series is planned for future release.

For more details about this solution, please visit the webpage below.

This solution is intended for evaluation purposes. If you plan to use Ubuntu for product development, please refer to the following resources.

图像

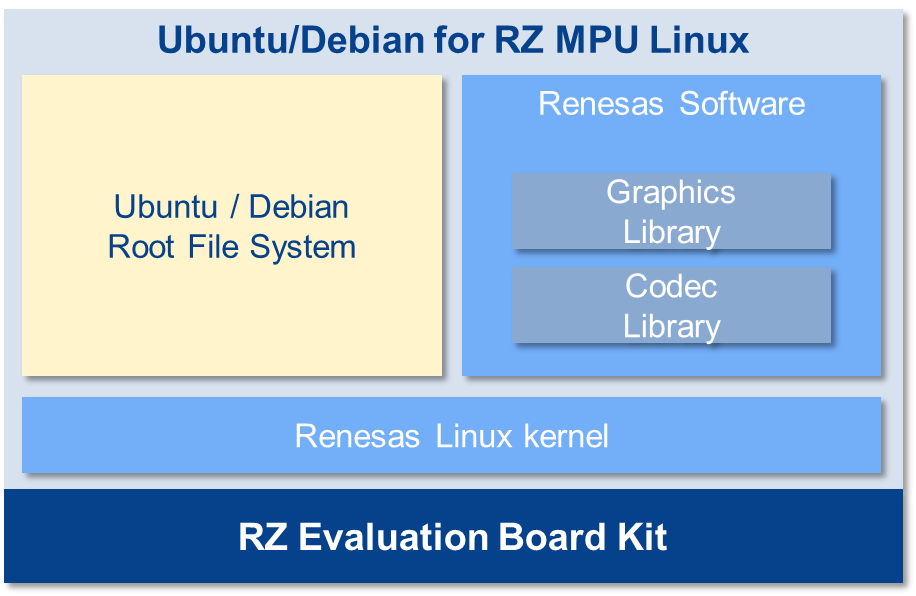

Ubuntu/Debian for RZ MPU Linux Block Diagram
