概览
描述

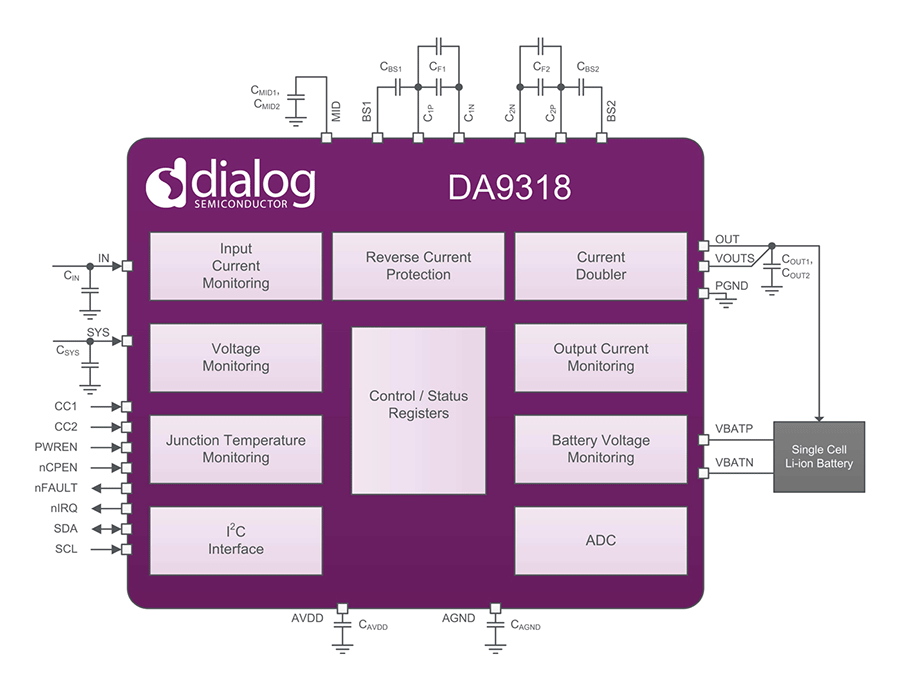

The DA9318 is optimized to handle high charging currents and at the same time ensure the safety of the battery and the system. It operates together with a main charger, which handles the pre-charge and constant voltage charging duties.
The current doubling is achieved with a high-efficiency capacitive divider that provides an output voltage of VIN/2, which allows the use of standard USB Type-C™ cables for charging currents up to 6A. The peak efficiency of DA9318 is 98%. With a maximum 8A charging current, the DA9318L variant can provide 35W of charging power, whereas the DA9318M variant provides 10A of output current and 44W of charging power.
Benefits
- Safe high-voltage direct charging
- Automatic shutdown in fault condition
- Travel adapter detection
- No inductors
- No input current ripple
- <1mm component height
- Small PCB area
- Standard 3A Type-C cable
- Built-in fault protection
特性
- 8A output current (DA9318L)
- 10A output current (DA9318M)
- 98% efficiency at 3A
- 5% current sense accuracy (DA9318L)
- 10% current sense accuracy (DA9813M)
- Reverse and forward current protection in IDLE mode
- Safe high-voltage direct charging
- Safety timer and watchdog
- 8-bit ADC to measure voltage and current at the input and output, as well as temperature
- Junction temperature monitoring
- I2C compatible 2-wire interface
- Package: WLCSP 3.62mm × 3.78mm
