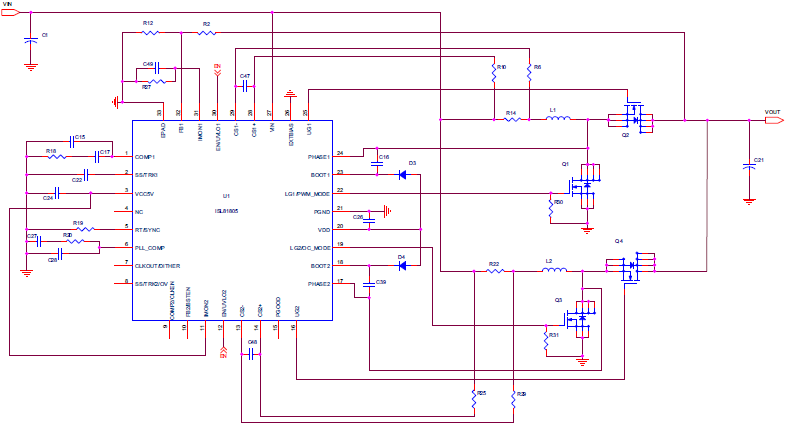

Dual-Phase Synchronous Boost EVB with 9V to 36V Input Range, 48V 5A Output
The ISL81805EVAL1Z dual-phase evaluation board features the ISL81805, an 80V high voltage dual synchronous boost controller that offers external soft-start, independent...
概览
简介

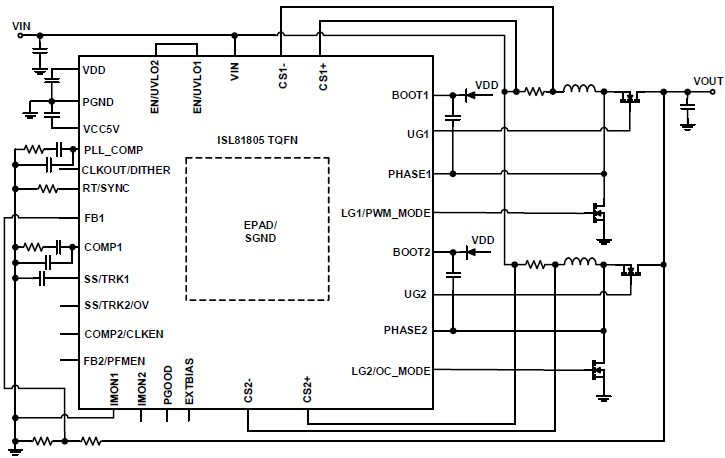

ISL81805 是一款双通道同步升压控制器，可产生两个独立输出或一个具有两个交错相位的输出，适用于工业和通用领域的各种应用。 该控制器具有较宽的输入和输出电压范围，适用于电信、数据中心和计算应用。
ISL81805 采用峰值电流模式控制，两个输出具有相位交错。 每个输出都有一个电压调节器、电流监视器和平均电流调节器，以提供独立的平均电压和电流控制。 内部锁相环（PLL）振荡器可确保 100 kHz 至 1 MHz 的精确频率设置，并且振荡器可与外部时钟信号同步，以实现频率同步和相位交错并联应用。 PLL 电路可输出相移可编程时钟信号，而该时钟信号可扩展到三相、四相和六相，并具有所需的交错相移。
ISL81805 具有可编程软启动和精确的阈值使能功能，以及一个电源良好指示器，可简化电源轨排序。 它还提供全面的保护功能，如 OVP、UVP、OTP 以及两个输出的平均和峰值电流限制，以确保高可靠性。

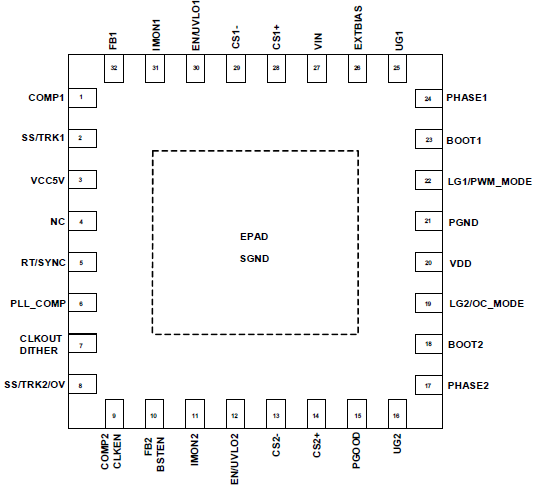

该 IC 采用可节省空间的 32 Ld 5 × 5 mm TQFN 封装。
特性
- 宽输入电压范围：4.5V 至 80V
- 宽输出电压范围：5V 至 80V
- 四个 MOSFET 驱动器，具有自适应击穿保护功能
- 恒定输出电压和输出电流反馈环路控制
- 轻载效率提高
- 低纹波二极管仿真和突发模式操作
- 可编程的软启动
- 支持启动至预偏置电源轨
- 可编程频率：100 kHz 至 1 MHz
- 支持具有级联相位交错的均流
- 外部时钟同步
- 通过 PLL 或频率抖动控制的精确相位角输出
- PGOOD 指示器
- 输入电流监视器
- PWM/DE/Burst 三个可选模式
- 精确的 EN/UVLO 阈值：±2%
- 低关断电流：5μA
- 全面保护：OCP（逐脉冲和可选的打嗝或恒流模式）、OVP、OTP 和 UVP
产品对比
应用
- 电信
- 服务器和数据中心
- 汽车电子
- 工业设备
- 电源系统
设计和开发
开发板与套件
Dual-Output Sync Boost EVB - 9V to 36V Vin Range for 48V 3A Output, 9V to 20V Vin Range for 24V 5A Output
The ISL81805EVAL2Z dual-output evaluation board features the ISL81805, an 80V high voltage dual synchronous boost controller that offers external soft-start,...
Dual-Output Negative-to-Positive EVB, with -36V to -60V Input Range, 28V 20A Output and 5V 20A Output
The ISL81805EVAL3Z dual-output evaluation board, with negative-to-positive voltage conversion features the ISL81805, which is an 80V high voltage, dual synchronous...
Dual-Phase Negative-to-Positive EVB with -36V to -60V Input Range, 28V 20A Output
The ISL81805EVAL4Z dual-phase negative-to-positive voltage conversion evaluation board features the ISL81805, which is an 80V high voltage, dual synchronous boost...
5G 二级电源参考设计
CN190-1-5GPWR-REFZ 参考设计提供应用加速器单元（AAU）功率放大器（PA）电源解决方案，以实现 -48V 至 48V 非隔离解决方案。 它支持高达 1500W 的输出。 该板可快速评估 ISL81805 80V 双同步升压控制器，并且可以使用 IIC 接口总线调整输出电压。 该款 ISL81805...
